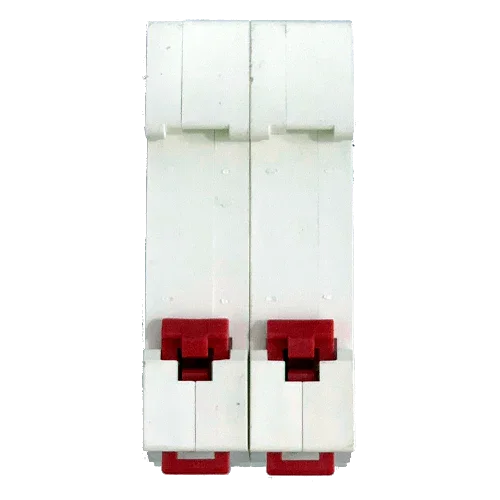

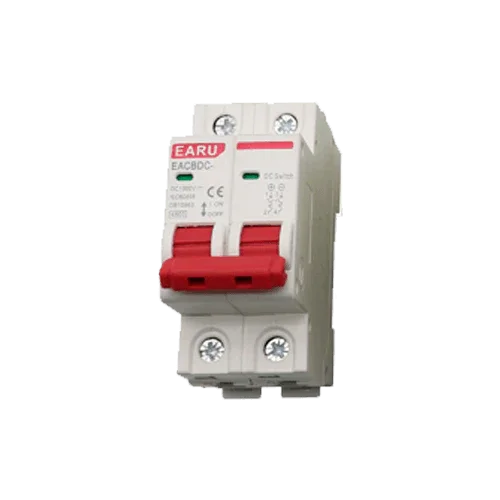

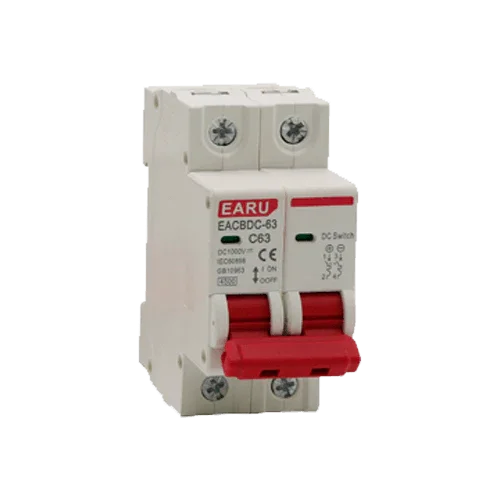

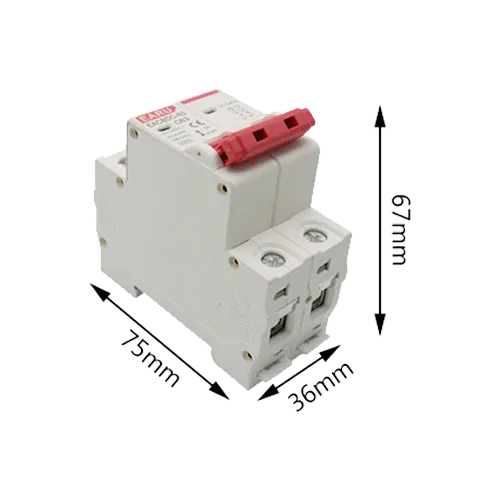

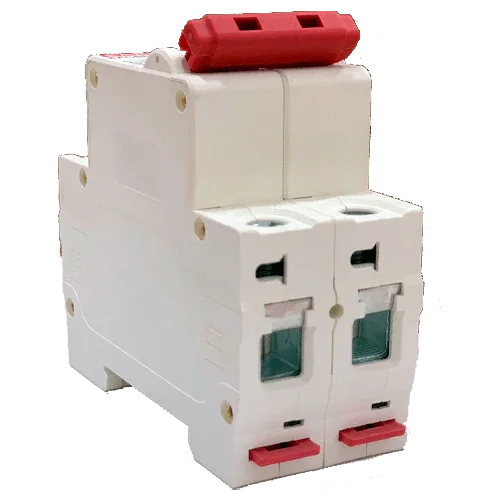

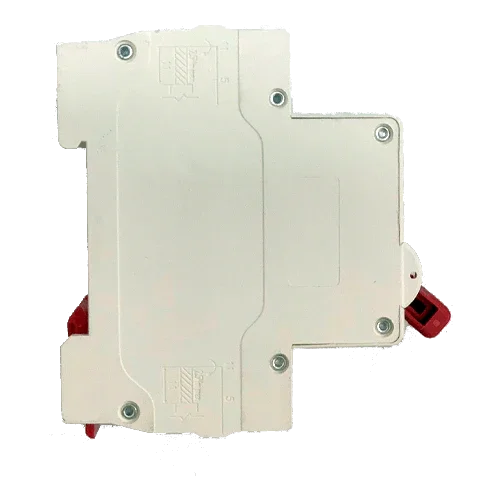

DC Switch EARU MCB 1000V 32A 2P

Product Description

The EARU DC MCB Switch 1000V 32A 2P protects DC lines in photovoltaic systems with safe isolation and C-curve tripping. It supports up to 1000 VDC on two poles and is easily installed on a DIN rail, integrating into residential and commercial DC PV panels.

Main Features

• Rated current: 32 A · C-curve.
• Permissible voltage: up to 1000 VDC (2P).
• Modular construction · 35 mm DIN.
• IP20 enclosure · self-extinguishing thermoplastic.
• Standards IEC 60898/60947-2 (breaking capacity see nameplate).

Advantages or Benefits

• Individual string isolation for operation and maintenance.
• Precisely sized to the generator Isc and cabling.
• Compatible with SPD and disconnectors for a complete panel.
• Reliable operation and quick replacement.

Purpose or Applications

PV strings and DC circuits in the 32 A range. Do not use on AC or as main protection for LV batteries.

Technical Specifications

Compatibilities

MPPT inputs of inverters and combiner boxes. Coordinate with type 2 DC SPD and main disconnector.

EARU DC MCB Switch 1000V 32A 2P is a professional solution for demanding renewable energy projects. It increases safety, optimizes the panel, and improves the efficiency of your installation.
