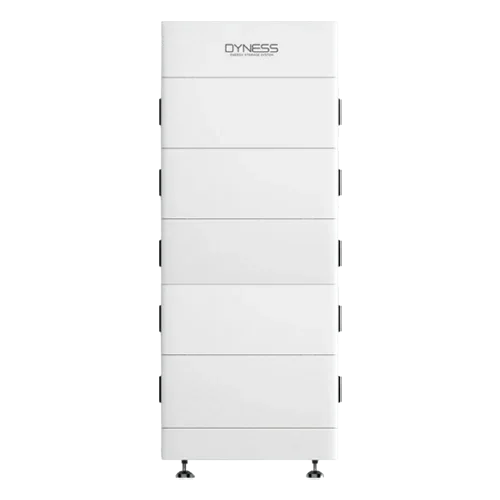

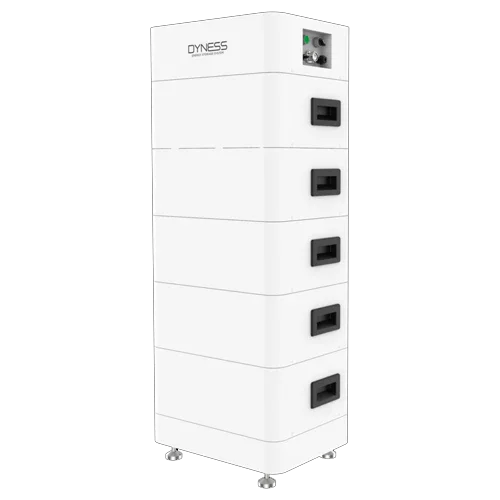

Dyness Tower T17 Battery 480V 17.76kWh LiFePO4
Modelo: Tower T17- Sku: DYNEBAT008
- Vendor: Dyness
Specifications
Product Description

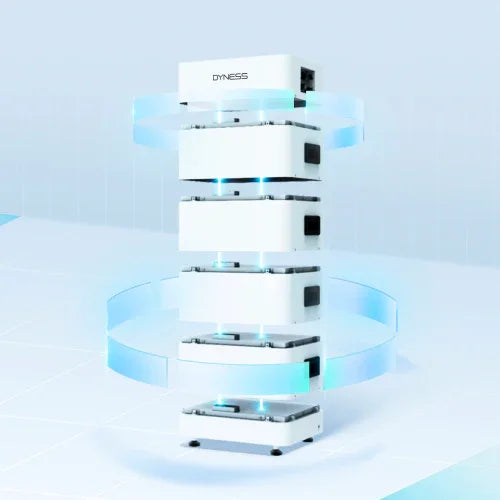

The Dyness Tower T17 480V 17.76kWh LiFePO4 Battery combines 5 stacked modules with 17.76 kWh usable capacity and high-voltage operation to maximize inverter efficiency and reduce current losses. It integrates a master BMS with CAN/RS485/RS232 communications, IP54 enclosure suitable for indoor/outdoor use, and options for remote monitoring and updates. It is a robust and scalable solution for three-phase self-consumption and advanced storage.
Main Features
- Nominal voltage: 480 V (range 420–547 V).
- Energy per tower: 17.76 kWh · capacity 37 Ah.
- Continuous power: ≈10.65 kW (0.6 C) controlled by BMS.
- Communication: CAN/RS485/RS232 with Dyness profile.
- Protection rating: IP54 for indoor/outdoor use.
- Scalable in parallel up to 4 towers.
Advantages or Benefits
- Lower losses and lighter cables thanks to high voltage.
- LFP safety and industrial-grade electronic protections.
- Rapid deployment with auto-configuration and APP.
- Ready for future system expansion.
Purpose or Applications
High-demand residential and light C&I in three-phase on-grid solutions and backup, as well as off-grid depending on inverter. Not suitable for 48 V.
Technical Specifications
| Usable energy | 17.76 kWh |
| Nominal voltage | 480 V (420–547 V) |
| Capacity | 37 Ah |
| Continuous power | ≈10.65 kW (0.6 C) |
| Modules | 5 |
| Communication | CAN / RS485 / RS232 |
| Parallel | Up to 4 towers |
| Protection | IP54 |
| Chemistry | LiFePO₄ |
Compatibilities
HV inverters with Dyness profile (Deye/SUN, GoodWe, Solis, Kostal, Ingeteam, SAJ, Sunways, eCactus, etc.). Not compatible with LV/48 V inverters.
Dyness Tower T17 480V 17.76kWh LiFePO4 Battery is a professional solution to increase autonomy, optimize space, and improve the efficiency of your installation.
