GoodWe Lynx C 60K Master 60kWh High Voltage Commercial Battery
Modelo: Lynx C 60K Master- Sku: GOODBAT005
- Vendor: Goodwe
Specifications
Product Description

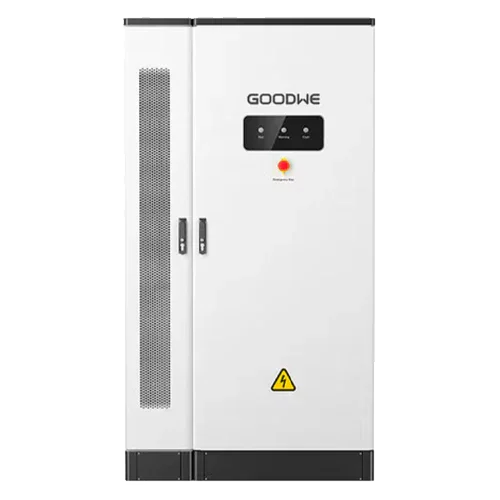

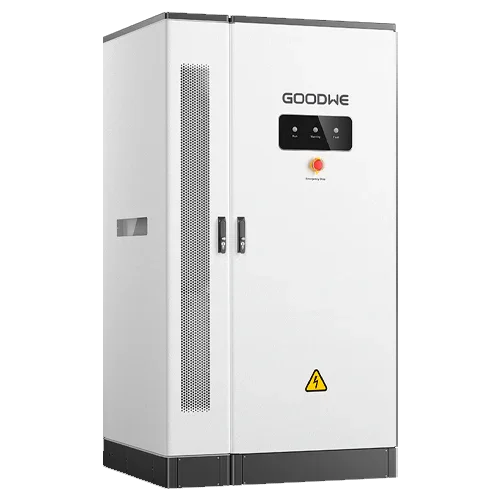

The GoodWe Lynx C 60K Master 60kWh High Voltage Commercial Battery is an outdoor-ready C&I system that combines LFP chemistry, IP55 cabinet, integrated HVAC, and multi-level BMS. It provides safety, power, and scalability for self-consumption, backup, and advanced demand management in demanding commercial and industrial environments.
Main Features
- Usable energy per cabinet: 60 kWh (100% DoD) with 11 modules of ~5.76 kWh.
- Nominal voltage: 633.6 V (operating range 554.4–712.8 V DC).
- Max. charge/discharge current: 96 A (intelligent derating according to conditions).
- Outdoor IP55 cabinet with HVAC (heating and cooling) and anti-corrosion design.
- Module- and rack-level BMS with CAN communication to GoodWe inverter.
- Scalability: up to 3 cabinets per ET inverter (Master + 2 Extension) → 180 kWh.
Advantages or Benefits
- Service continuity: three-phase backup support switched by compatible inverter.
- Cost savings in contracted power thanks to configurable peak-shaving.
- Cost optimization with time-of-use strategies (charging during off-peak, discharging during peak).
- Enhanced safety: LiFePO₄ chemistry, multi-level protection, and fire suppression.
- Fast professional installation: pre-integrated cabinet, HVAC, and optimized internal wiring.
- Centralized monitoring via SEMS with alarms, history, and EMS control.
Purpose or Applications
Designed for self-consumption with surplus, three-phase backup, and demand management in industrial warehouses, agribusiness, hotels, shopping centers, PV-equipped parking lots, office buildings, and small production plants. Also ideal for projects with time-of-use tariffs or peak power requirements.
Technical Specifications
| Power | 60 kWh per cabinet (usable energy, 100% DoD) |
| Nominal voltage | 633.6 V (range 554.4–712.8 V) |
| Format | Modular outdoor IP55 cabinet with integrated HVAC |
Compatibilities
Compatible with GoodWe ET series three-phase hybrid inverters from 15–30 kW (HV) and expandable with Lynx C 60K Extension cabinets up to 180 kWh per inverter. Native integration with SEMS platform.
The GoodWe Lynx C 60K Master 60kWh High Voltage Commercial Battery is a professional solution for C&I projects seeking reliability, efficiency, and a tidy outdoor installation. It maximizes autonomy, stabilizes consumption, and improves return on investment.
GoodWe Lynx C 60K Master 60kWh High Voltage Commercial Battery is a robust and scalable solution for demanding renewable energy, optimizing space, safety, and performance in your installation.
