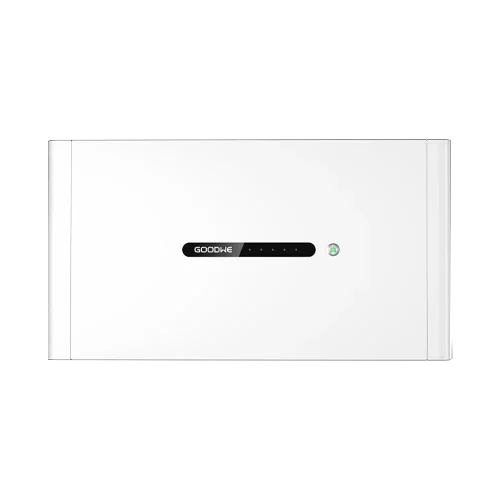

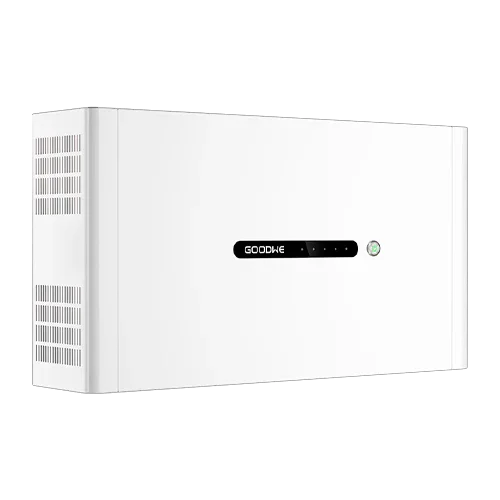

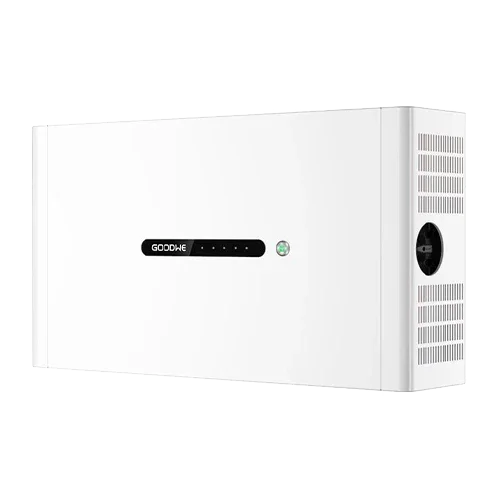

GoodWe Lynx D LX D5.0-10 48V 5kWh LFP High Voltage Battery

Product description

The GoodWe Lynx D LX D5.0-10 Battery is a high-voltage storage module designed for residential and small commercial installations seeking real reliability, safety, and scalability. With LiFePO₄ (LFP) chemistry, 5 kWh usable per module, and IP66 protection, it offers stable performance and long service life, as well as native integration with GoodWe hybrid inverters and the SEMS platform for advanced monitoring and control.

Main features

• Usable capacity per module: 5 kWh (LiFePO₄, high thermal and chemical stability).
• HV system: approximate operating range 320–480 V, CAN communication with the inverter.
• Power: 3 kW nominal and up to 5 kW peak (≈10 s) per module.
• IP66 protection for indoor or outdoor installation and greater environmental resistance.
• Stackable modular design up to 8 modules (≈40 kWh) with auto-detection and integrated BMS.
• Remote monitoring and updates via SEMS through the GoodWe inverter.

Advantages or benefits

• Enhanced safety: LFP chemistry and integrated BMS minimize risks and extend service life.
• Effortless scalability: start with 5 kWh and expand as needed up to ~40 kWh.
• Efficiency and savings: optimizes self-consumption, reduces grid purchases, and improves system payback.
• Intelligent management: time-of-use profiles (ToU), surplus charging, and backup modes managed by the inverter.
• Clean installation: stackable or wall-mounted format with simplified wiring and protections.
• Simple maintenance: remote diagnostics and firmware updates through the GoodWe ecosystem.

Purpose or applications

Ideal for residential self-consumption systems with high-voltage hybrid inverters, small commercial applications requiring backup, and projects where safety, durability, and expandability are prioritized. Performs especially well in homes with variable consumption, time-of-use tariffs, and rooftops with generous photovoltaic generation.

Technical specifications

Compatibilities

Native compatibility with GoodWe high-voltage hybrid inverters: single-phase EH series and three-phase ET / ET Plus series, with energy measurement via GoodWe Smart Meter and full control from SEMS. Not compatible with low-voltage inverters (48 V) or with equipment lacking certified HV communication.

During installation, respect distances and thermal range, make the CAN connection to the inverter, coordinate DC protections, and register the system in SEMS. For expansions, add modules in stack up to the permitted maximum and execute the autodetection and balancing procedure indicated by GoodWe.

The GoodWe Lynx D LX D5.0-10 Battery is a professional and modular solution to increase autonomy, optimize space, and improve the efficiency of your high-voltage photovoltaic system.
