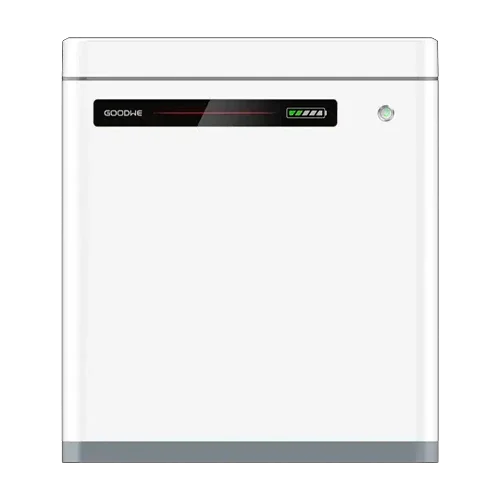

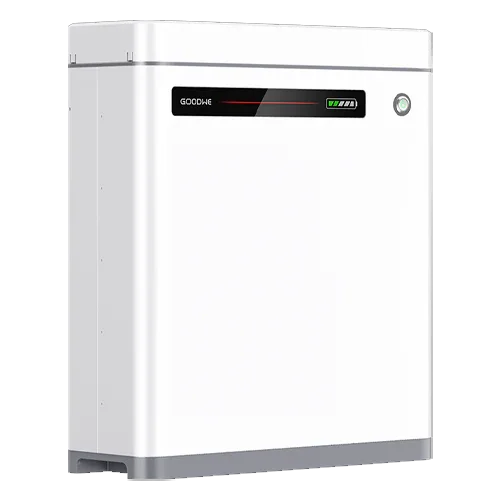

GoodWe Lynx Home U LX U5.4-20 Battery 5.4kWh 48V LFP

Modelo: Lynx Home U LX U5.4-20

Sku: GOODBAT004
Vendor: Goodwe

€1.785,20 EUR

€1.428,15 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

GoodWe Lynx Home U LX U5.4-20 5.4kWh 48V LFP Battery for self-consumption and residential backup. With IP65, BMS, and CAN/RS485 communications, its 5.4 kWh capacity can be expanded in modules up to 32.4 kWh per string.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The GoodWe Lynx Home U LX U5.4-20 5.4kWh 48V LFP Battery is a low-voltage module designed to maximize self-consumption and provide domestic energy backup with maximum safety. Based on LiFePO₄ (LFP) technology, it combines IP65, integrated BMS, and professional communications (CAN/RS485) for direct integration with 48 V GoodWe inverters. Its modular architecture allows you to start with a single module and scale up to 32.4 kWh per string, maintaining an organized, efficient installation ready for growth.

Main Features

Energy per module: 5.4 kWh usable (51.2 V nominal) with high-safety LFP chemistry.
IP65 protection rating; wall or floor mounting for maximum flexibility.
Integrated BMS with electrical and thermal protections; CAN/RS485 communications to the inverter.
Scalability: from 1 to 6 modules per string (up to 32.4 kWh); possibility to parallel strings depending on the inverter.
High efficiency, low self-discharge, and long service life for residential and small commercial use.

Advantages or Benefits

Real savings on your bill: stores photovoltaic surplus and takes advantage of off-peak rates (ToU) with inverter logic.
Service continuity: backup support when the compatible 48 V inverter allows it.
Quick and clean installation: stackable format, standardized wiring, and guided commissioning via SEMS.
Enhanced safety: LFP cells, IP65 enclosure, and BMS with multi-level protection.
Project ready to grow: expand capacity without redoing the technical room or protection panel.

Purpose or Applications

Ideal for homes with solar self-consumption, small businesses, and offices seeking to increase self-sufficiency, smooth demand peaks, limit grid feed-in, or have energy during micro-outages. Also suitable for 48 V retrofit projects where storage integration is desired without changing the existing inverter if already compatible.

Technical Specifications

Power	5.4 kWh per module (≈2.56 kW nominal with 1×; up to 5.12 kW with ≥2×)
Nominal voltage	51.2 V (operating range 47.5–57.6 V)
Format	Stackable modular, IP65, wall or floor mounting

Compatibilities

Native compatibility with 48 V GoodWe inverters: ES, ES G2, EM, and SBP series (AC-coupled/retrofit). Integration with the SEMS platform for monitoring, alarms, and implementation of self-consumption, time-of-use, and backup strategies. Do not use with high-voltage inverters (EH, ET, ET Plus).

The GoodWe Lynx Home U LX U5.4-20 5.4kWh 48V LFP Battery is a professional solution for demanding renewable energy projects. It increases autonomy, optimizes space, and improves the efficiency of your installation.
