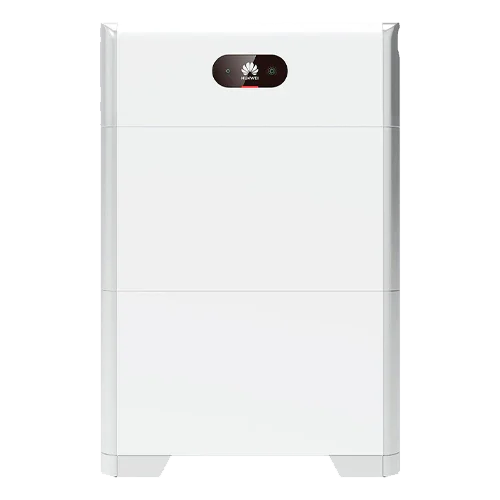

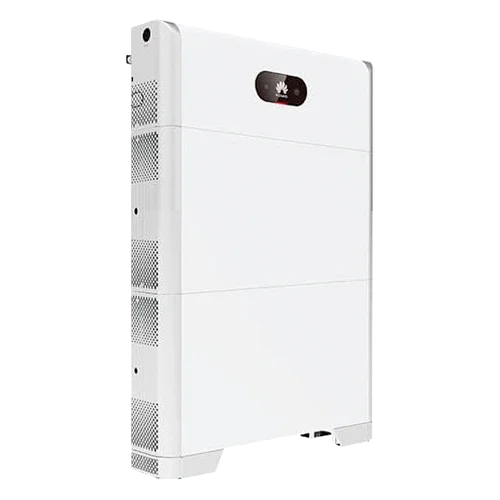

Huawei Luna2000 10kWh S0 LiFePO4 IP65 Battery
Modelo: Luna2000 10kWh S0- Sku: HUAWBAT004
- Vendor: Huawei
Specifications
Product Description
The Huawei Luna2000 15kWh S0 LiFePO4 IP65 Battery is the highest capacity HV tower in the LUNA2000 residential series. It incorporates three LUNA2000-5-E0 modules (5 kWh each) and the LUNA power module, totaling 15 kWh usable with 100% depth of discharge, high-safety LFP chemistry, and an IP65 enclosure. Its stackable modular design and native integration with Huawei SUN2000 hybrid inverters simplify installation and daily energy management.
Main Features
- Total usable capacity: 15 kWh (3×5 kWh) with 100% DoD.
- System power: 7.5 kW nominal and 10.5 kW peak (10 s).
- Robust, stable, and long-life LiFePO₄ (LFP) cells.
- IP65 protection rating and natural convection cooling.
- Parallel expansion up to 30 kWh for growing projects.
- Monitoring and control via the FusionSolar app; CAN/RS485 communications.
Advantages or Benefits
- Maximum autonomy in a single tower, designed for high consumption.
- High power delivery (7.5 kW) to cover demanding household load peaks.
- Safety and reliability of LFP chemistry, with all energy truly usable.
- Quick plug & play installation and compact aesthetics for floor or wall mounting.
- Optimization of self-consumption and reduction of grid dependence.
Purpose or Applications
Recommended for high-consumption homes, small businesses, or systems with large photovoltaic surpluses requiring high-capacity and high-power HV storage, as well as for projects needing backup through Huawei ecosystem solutions.
Technical Specifications
| Usable capacity | 15 kWh (100% DoD) |
| Composition | 3× LUNA2000-5-E0 + Power Module |
| Battery type | LiFePO₄ (LFP) |
| Architecture | High voltage (HV) managed by power module |
| Nominal / peak power | 7.5 kW / 10.5 kW (10 s) |
| Protection | IP65 |
| Tower dimensions (W×D×H) | 670×150×1320 mm approx. |
| Tower weight | ≈163.8 kg (with support) |
| Operating temperature | -20 °C to +55 °C |
| Cooling | Natural convection |
| Communications | CAN/RS485, FusionSolar monitoring |
| Expansion | Parallelizable up to 30 kWh total |
Compatibilities
Direct compatibility with Huawei SUN2000 hybrid inverters. Can be expanded with a second LUNA2000 tower to reach 30 kWh. Huawei ecosystem accessories available for mounting and energy backup.
The Huawei Luna2000 15kWh S0 LiFePO4 IP65 Battery offers the best combination of capacity, power, and LFP safety to take your self-consumption to the next level, with full integration into the Huawei ecosystem.
