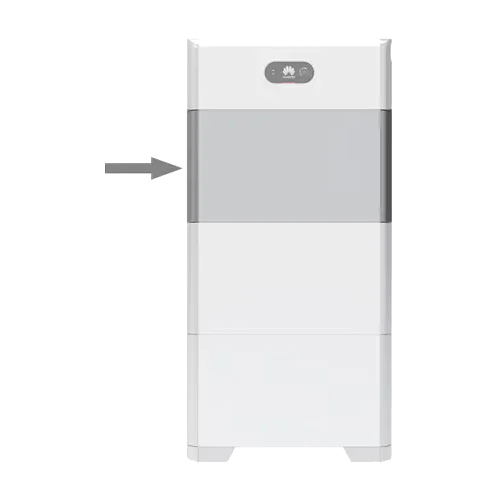

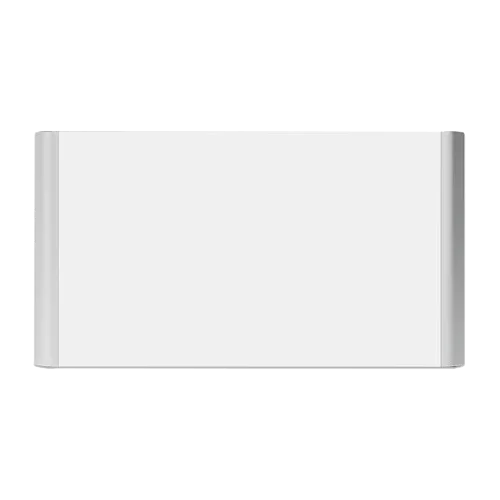

Huawei LUNA2000-5-E0 5kWh LiFePO4 Battery Module
Modelo: LUNA2000-5-E0- Sku: HUAWBAT002
- Vendor: Huawei
Specifications
Product Description
The Huawei LUNA2000-5-E0 5kWh LiFePO4 Battery Module is the 5 kWh energy block for LUNA2000 high voltage systems. With safe LFP chemistry, 100% depth of discharge and IP65 protection, it allows you to expand or start your storage in a modular and professional way, fully compatible with Huawei SUN2000 hybrid inverters.
Main Features
- Energy per module: 5 kWh usable (100% DoD) for maximum autonomy.
- LiFePO₄ (LFP) chemistry with high safety and long service life.
- IP65 protection rating for indoor or outdoor installation.
- Stackable modular format: up to 3 modules per tower (5/10/15 kWh) and system expansion up to 30 kWh.
- Module dimensions: 670×150×360 mm; weight approx. 50 kg.
- Native integration with Huawei ecosystem (FusionSolar monitoring, CAN/RS485 communications via power module).
Advantages or Benefits
- True scalability: start with 5 kWh and grow according to your needs.
- Maximum energy utilization thanks to 100% DoD.
- Clean and quick installation in existing LUNA2000 systems.
- High reliability and safety with LFP cells and IP65.
- Simple integration with SUN2000 hybrid inverters and the FusionSolar app.
Purpose or Applications
Ideal for residential self-consumption and small commercial applications requiring efficient, expandable HV storage with intelligent management: homes with Huawei inverters, expansions of existing systems, or new projects with phased growth.
Technical Specifications
| Capacity per module | 5 kWh usable (100% DoD) |
| Battery type | LiFePO₄ (LFP) |
| System voltage | High voltage (HV) in LUNA2000 tower |
| Protection | IP65 |
| Module dimensions (W×D×H) | 670×150×360 mm |
| Module weight | ≈50 kg |
| Operating temperature | -20 °C to +55 °C (derating according to altitude) |
| Cooling | Natural convection |
| Communications | CAN/RS485 (via LUNA power module) |
| Expansion | Up to 3 modules per tower; parallel systems up to 30 kWh |
Compatibilities
Compatible with Huawei SUN2000 hybrid inverters and with the power module LUNA2000-5KW-C0 (required for operation). Recommended accessory: LUNA2000 Wall Mounting Bracket. If you already have a LUNA2000 tower, this module can be stacked without complex wiring.
The Huawei LUNA2000-5-E0 5kWh LiFePO4 Battery Module is the safest and most flexible way to expand your HV storage, optimizing self-consumption and the efficiency of your installation with SUN2000 inverters.
