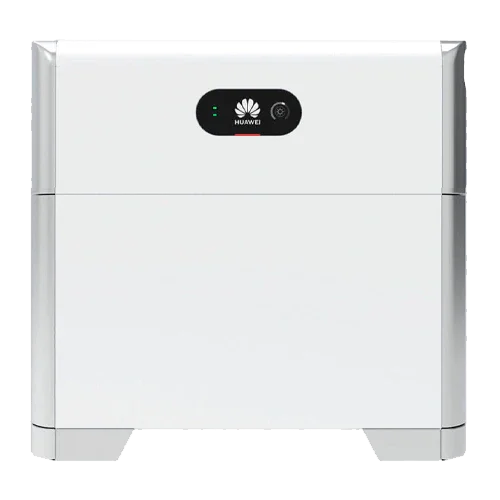

Huawei Luna2000 5kWh S0 LiFePO4 IP65 Battery

Product Description

The Huawei Luna2000 5kWh S0 LiFePO4 IP65 Battery is an HV tower that integrates 1 LUNA2000-5-E0 module (5 kWh) and the LUNA power module, offering safe storage with LFP chemistry, 100% depth of discharge, and quick plug & play installation in Huawei SUN2000 hybrid systems.

Main Features

• Usable energy: 5 kWh (100% DoD) to maximize your self-consumption.
• Output power: 2.5 kW nominal and 3.5 kW peak (10 s) to cover household peaks.
• IP65 protection and natural convection cooling: indoor or outdoor use.
• Modular architecture: expandable to 10/15 kWh (up to 3 modules per tower) and up to 30 kWh in parallel.
• Intelligent monitoring via FusionSolar app; CAN/RS485 communications.
• 5 kWh tower dimensions: 670×150×600 mm; approx. weight 63.8 kg (with floor stand).

Advantages or Benefits

• Quick and clean installation with stackable design and minimal wiring.
• LFP safety and 100% DoD for longer lifespan and usable capacity.
• Scalable: grows from 5 to 15 kWh in the same tower, or in parallel up to 30 kWh.
• Full integration with Huawei SUN2000 hybrid inverters and advanced energy management.
• IP65 enclosure suitable for demanding residential environments.

Purpose or Applications

Designed for homes with photovoltaic self-consumption seeking basic backup and consumption optimization, as well as small businesses requiring compact and safe storage with Huawei inverters.

Technical Specifications

Compatibilities

Direct compatibility with Huawei SUN2000 hybrid inverters. Accessories and expansions: LUNA2000-5-E0 battery module, LUNA2000 Wall Mounting Bracket, and second tower to reach 30 kWh. No external communication devices required.

The Huawei Luna2000 5kWh S0 LiFePO4 IP65 Battery provides compact, safe, and scalable HV storage to maximize your self-consumption with SUN2000 inverters.
