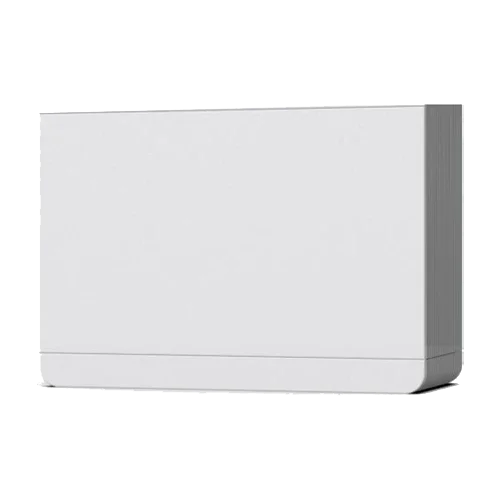

Huawei LUNA2000-7-E1 Battery Module 6.9kWh LiFePO4

Modelo: LUNA2000-7-E1

Sku: HUAWBAT001
Vendor: Huawei

€4.388,49 EUR

€3.510,79 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Huawei LUNA2000-7-E1 6.9kWh LiFePO4 Battery Module provides 6.9 kWh usable with 100% DoD and IP66. Modular HV architecture, 3.5 kW per group, silent (<29 dB), and expandable up to 20.7 kWh per tower.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

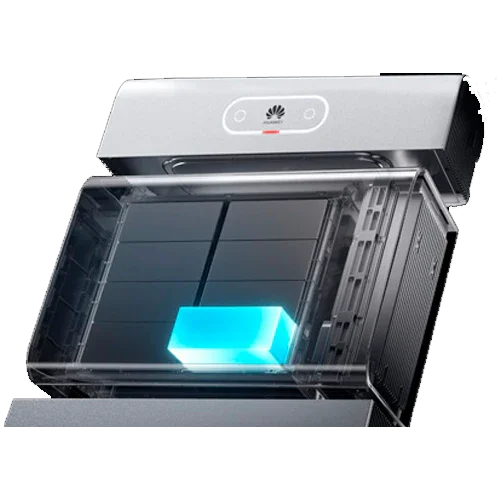

The Huawei LUNA2000-7-E1 6.9kWh LiFePO4 Battery Module is the energy block of the LUNA2000-S1 series for high-voltage systems. Each module delivers 6.9 kWh usable with 100% depth of discharge, incorporates an internal optimizer (Module+), IP66 protection, and cable-free inter-module connection, which speeds up installation and improves reliability. Designed to work with the LUNA2000-10KW-C1 power module and SUN2000 hybrid inverters, it offers stable performance, very quiet operation (<29 dB), and a compact aesthetic suitable for indoor or outdoor use.

Main Features

Energy per module: 6.9 kWh usable (100% DoD) with safe LiFePO₄ (LFP) chemistry.
Power per group: up to 3.5 kW with 1 module; 7 kW with 2; 10.5 kW with 3 (10 s peak).
IP66 protection rating, natural convection cooling, and noise <29 dB.

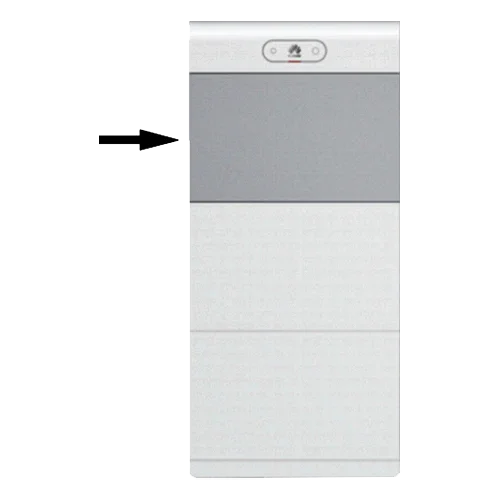

Stackable modular architecture: 1–3 modules per tower (6.9–20.7 kWh) and up to 4 towers in parallel.
System operating voltage range: 350–560 V (single-phase) / 600–980 V (three-phase).
RS485/FE/CAN communications and comprehensive monitoring via the FusionSolar platform.

Advantages or Benefits

True scalability: expand capacity without replacing equipment, adapting to consumption growth.
Greater energy utilization thanks to 100% DoD and the integrated optimizer per module.
Quick installation with cable-free connection between modules and simplified commissioning.
Safety and durability with LFP cells and IP66, suitable for residential and commercial environments.
Silent operation (<29 dB) and compact design for easy placement.

Purpose or Applications

Ideal for residential and small commercial self-consumption with Huawei inverters, storage for time-of-use tariffs, basic backup against micro-outages, and projects requiring phased expansion while maintaining high efficiency.

Technical Specifications

Capacity per module	6.9 kWh usable (100% DoD)
Cell type	LiFePO₄ (LFP)
Power per group	3.5 kW (1 module) / 7 kW (2) / 10.5 kW (3)
System operating voltage	350–560 V (single) / 600–980 V (three)
Protection	IP66
Module dimensions (W×D×H)	590 × 255 × 360 mm
Module weight	≈68 kg
Operating temperature	-20 °C to +55 °C (derating according to curve)
Noise	<29 dB
Cooling	Natural convection
Communications	RS485 / FE / CAN
Scalability per tower	1–3 modules (6.9–20.7 kWh)
Parallel	Up to 4 towers (up to 82.8 kWh) depending on inverter

Compatibilities

Direct compatibility with the latest generation Huawei SUN2000 hybrid inverters (e.g., SUN2000-12/15/17/20/25K-MB0 and SUN2000-3/4/5/6/8/10KTL-M1). Requires LUNA2000-10KW-C1 power module to operate. Recommended accessories: wall mount and parallelization kits for additional groups.

The Huawei LUNA2000-7-E1 6.9kWh LiFePO4 Battery Module is the ideal foundation to safely, efficiently, and scalably expand your HV storage system with SUN2000 inverters.
