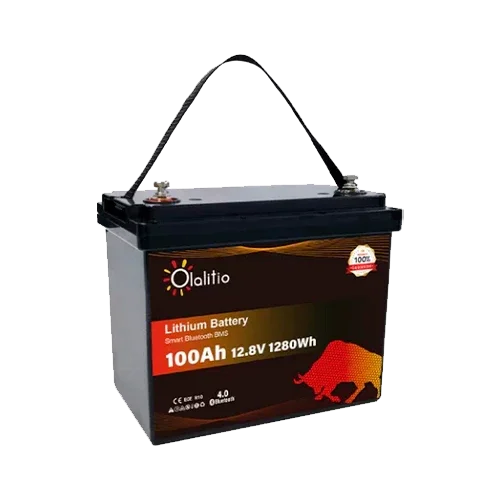

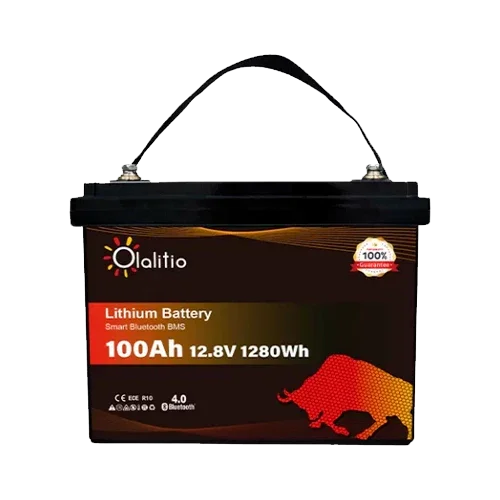

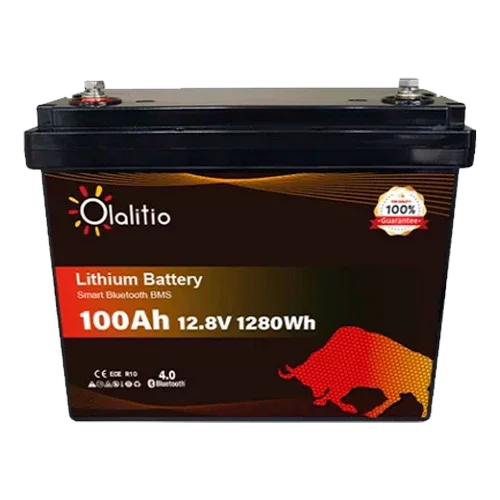

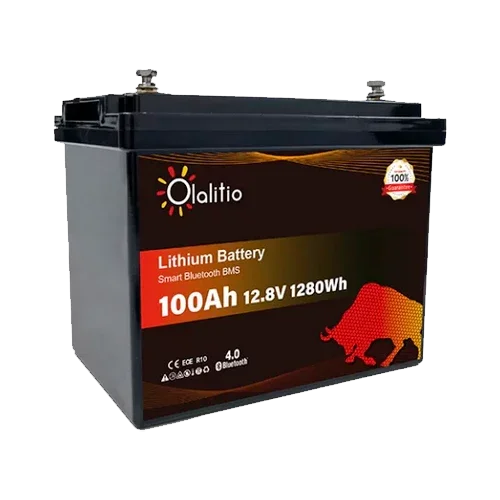

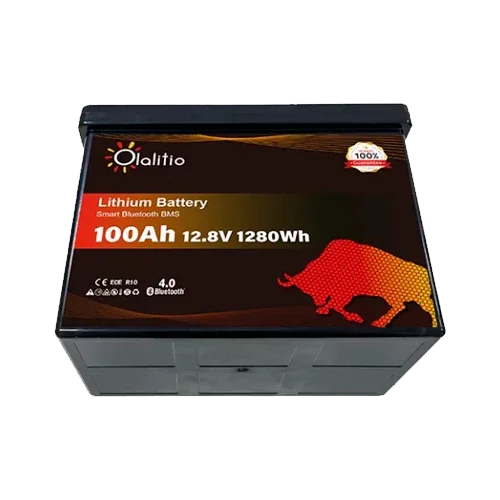

Lithium Battery 12V 100Ah Olalitio OLA-12-100-P Bluetooth
Modelo: OLA-12-100-P Bluetooth- Sku: OLALBAT002
- Vendor: Olalitio
Specifications
Product Description
The Olalitio OLA-12-100-P Bluetooth 12V 100Ah Lithium Battery combines high energy density with a robust IP65 construction and an intelligent BMS system. With 1,280 Wh usable, 100 A continuous discharge, and peaks of 450 A, it is a professional option for powering demanding loads in campers, caravans, boats, or 12 V solar energy systems. The integrated Bluetooth connectivity allows you to monitor voltage, current, state of charge, and alarms on your mobile device, optimizing daily use and extending service life.
Main Features
- Capacity/Energy: 100 Ah / 1,280 Wh; nominal voltage 12.8 V (operating range 10–14.6 V).
- Output power: 100 A continuous discharge and up to 450 A peak (200–500 ms) for occasional starts.
- True longevity: >4,500 cycles at 90% DoD, reducing the cost per kWh over time.
- Fast charging: CCCV/IU profile at 14.6 V; recommended current 30 A (max. 50 A).
- Bluetooth 4.0: smart monitoring from a smartphone of BMS parameters and events.
- Robust design: ABS IP65 enclosure, M8 terminals, weight 10.6 kg, and compact format.
Advantages or Benefits
- More autonomy with less weight: replaces much heavier lead-acid batteries, freeing up space and improving system efficiency.
- Integrated safety: BMS with protections against overcharge, overdischarge, overtemperature, and short circuit for reliable operation.

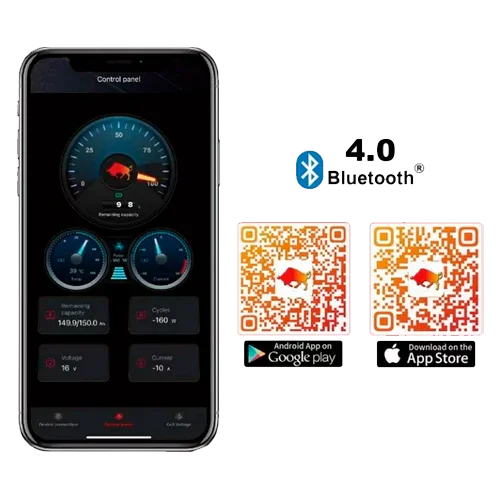

- Real-time control: with the Bluetooth app you can see voltage, current, and health status; anticipate maintenance and avoid deep discharges.
- Efficient recharging: supports up to 50 A charging, ideal with alternators, 230 V chargers, or MPPT solar controllers.
- Scalable and flexible: possibility of up to 4 in series and 4 in parallel (4S4P) to increase voltage or capacity.
Purpose or Applications
Ideal for campers and caravans (fridge, lighting, USB/12 V outlets, 230 V inverter), marine (onboard services, electronics, windlass within current limits), and 12 V photovoltaic in cabins, telecommunications, or small and medium off-grid residences. Its IP65 sealing and wide thermal range (discharge –20 to 75 °C) make it suitable for demanding environments.
Technical Specifications
| Model | OLA-12-100-P |
| Chemistry | Li-ion with integrated BMS |
| Nominal capacity | 100 Ah (1,280 Wh) |
| Nominal voltage | 12.8 V |
| Operating range | 10–14.6 V |
| Life cycles | >4,500 @ 90% DoD |
| Charging profile | CCCV/IU at 14.6 V |
| Charging current | Recommended 30 A (max. 50 A) |
| Continuous discharge | 100 A |
| Discharge peak | 450 A (200–500 ms) |
| Bluetooth | Integrated (4.0) |
| Configurations | Up to 4S4P (series/parallel) |
| Protection | IP65 |
| Enclosure | ABS |
| Terminals | M8 (tightening torque 9–11 N·m) |
| Dimensions | 260 × 170 × 210 mm (L × W × H) |
| Weight | 10.6 kg |
| Discharge temperature | –20 °C to 75 °C |
| Charging temperature | 0 °C to 50 °C |
| Storage temperature | –5 °C to 35 °C |
| Warranty | 5 years |
Compatibilities
Works with 12 V MPPT/PWM solar controllers, 230 V chargers with lithium profile (14.6 V), and 12 V inverters. For expansions, always use identical batteries (same brand/model and state of charge) and balance before connecting. For series/parallel configurations, respect the limit of up to 4S4P and protect each branch with suitable fuses and disconnectors.
The Olalitio OLA-12-100-P Bluetooth 12V 100Ah Lithium Battery offers reliable energy, intelligent control, and an excellent weight-to-capacity ratio for photovoltaic, camper, and marine use, ensuring long-lasting performance with safety and ease of management.
Descargar ficha técnica
