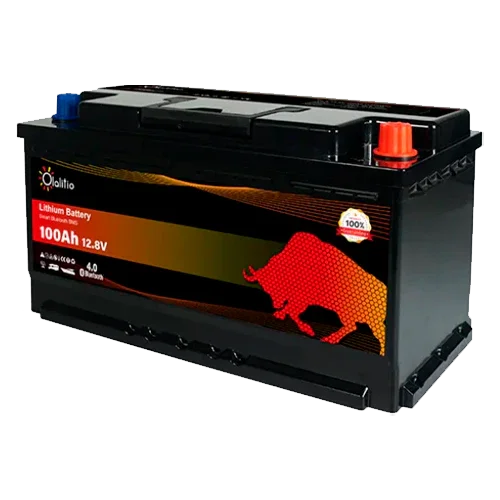

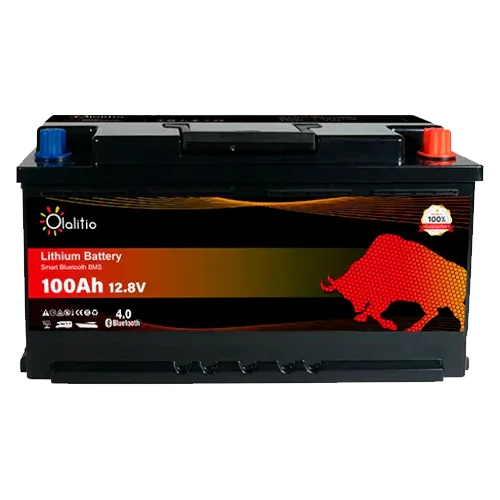

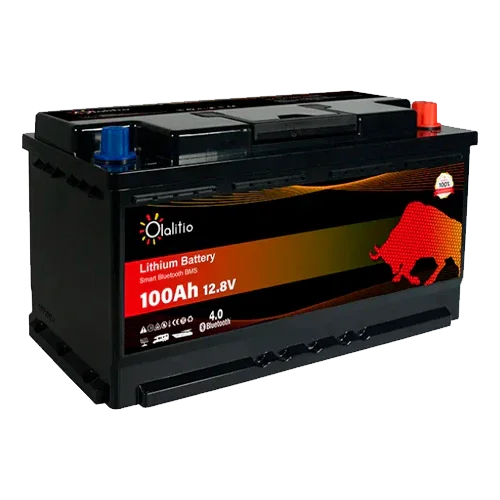

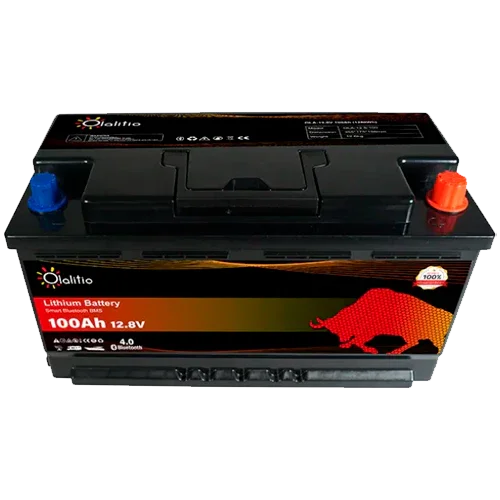

12V 100Ah Lithium Battery Olalitio OLA-12-100-S Under-Seat Bluetooth
Modelo: OLA-12-100-S Bajo Asiento Bluetooth- Sku: OLALBAT004
- Vendor: Olalitio
Specifications
Product Description
The Olalitio OLA-12-100-S 12V 100Ah Lithium Battery Under-Seat Bluetooth is a compact and robust lithium battery designed to make use of limited spaces (under-seat) without sacrificing autonomy. With 1,280 Wh, Li-ion chemistry, and an intelligent BMS, it delivers high currents while maintaining excellent thermal and electrical stability. Its IP65 rating protects against dust and water jets, making it ideal for mobile or demanding environments. Bluetooth monitoring allows you to read voltage, current, estimated SOC, and BMS events from your mobile device, improving daily management in 12 V installations for camper vans, caravans, marine, and solar energy applications.
Main Features
- Under-seat (slim) format: 355 × 175 × 188 mm for installation in narrow compartments of vehicles and boats.
- Usable energy and voltage: 100 Ah / 1,280 Wh at 12.8 V, operating range 10–14.6 V.
- High performance: up to 150 A continuous discharge and 450 A peak (200–500 ms) for starting surges.
- True longevity: >4,500 cycles at 90% DoD, reducing the cost per kWh over its lifetime.
- Controlled fast charging: CCCV/IU profile at 14.6 V; recommended 30 A (max. 50 A).

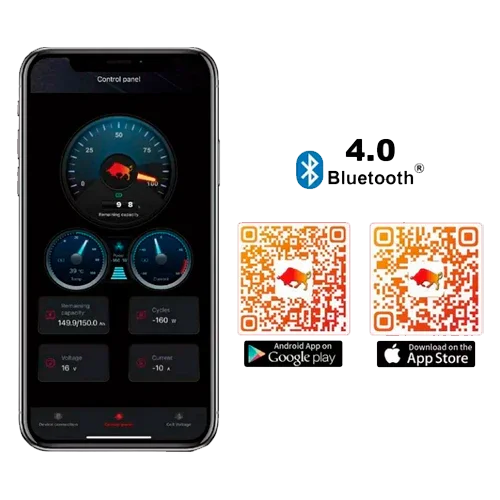

- Bluetooth 4.0 and IP65: monitoring app and sealed ABS enclosure for outdoor or humid environments.
Advantages or Benefits
- More autonomy with less volume: replaces larger and heavier lead-acid batteries, freeing up useful space in the installation.
- Active BMS safety: protections against overcharge, overdischarge, overtemperature, and short circuit.
- Mobile control: check the battery status in seconds and anticipate maintenance, avoiding accidental deep discharges.
- Versatile use: perfect for continuous loads (refrigerator, lighting) and brief peaks in camper vans, marine, or 12 V solar systems.
- Scalable: possibility of series/parallel connection (up to 4S4P) to increase voltage or capacity while following best practices.
Purpose or Applications
Designed for camper vans and caravans (fridge, pumps, lights, 12 V outlets, and small 230 V inverters), marine (onboard services and electronics), and 12 V photovoltaic in shelters, cabins, buoys, or telecommunications. Its under-seat format and IP65 protection enable clean, accessible installations resistant to vibrations, dust, and splashes.
Technical Specifications
| Model | OLA-12-100-S |
| Chemistry | Li-ion with integrated BMS |
| Capacity / Energy | 100 Ah / 1,280 Wh |
| Nominal voltage | 12.8 V |
| Operating range | 10–14.6 V |
| Number of cycles | >4,500 @ 90% DoD |
| Charging profile | CCCV / IU at 14.6 V |
| Charging current | Recommended 30 A (max. 50 A) |
| Continuous discharge | 150 A |
| Discharge peak | 450 A (200–500 ms) |
| Bluetooth | Integrated (4.0) with monitoring app |
| Configurations | Up to 4 in series and 4 in parallel (4S4P) |
| Protection | IP65 |
| Enclosure / Material | ABS |
| Terminals | SAE |
| Dimensions (L×W×H) | 355 × 175 × 188 mm |
| Weight | 12.6 kg |
| Discharge temperature | –20 °C to 75 °C |
| Charging temperature | 0 °C to 50 °C |
| Storage temperature | –5 °C to 35 °C |
| Warranty | 5 years |
Compatibilities
Compatible with 12 V systems: 12 V MPPT/PWM solar charge controllers, 230 V chargers with lithium profile (14.6 V), and 12 V inverters. For expansions, use identical batteries (same brand/model and state of charge), balance them before connecting, and protect each branch with suitable fuses/disconnectors. For series configurations, respect the limit of up to 4S and verify the voltages of connected equipment.
The Olalitio OLA-12-100-S 12V 100Ah Lithium Battery Under-Seat Bluetooth combines a slim format, 150 A continuous power, IP65, and intelligent control, offering a professional and durable solution for camper vans, boats, and 12 V solar applications.
