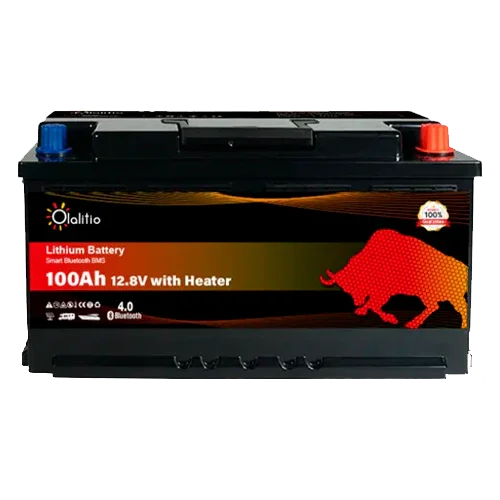

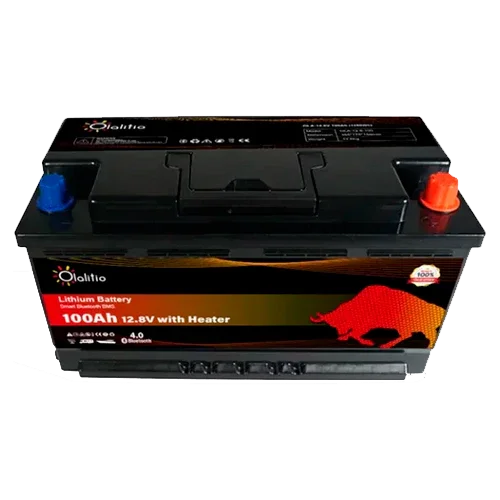

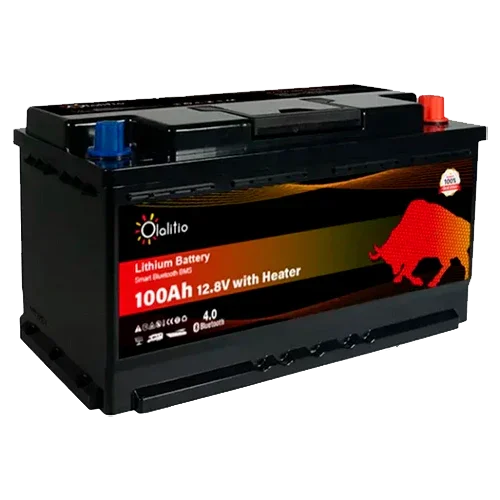

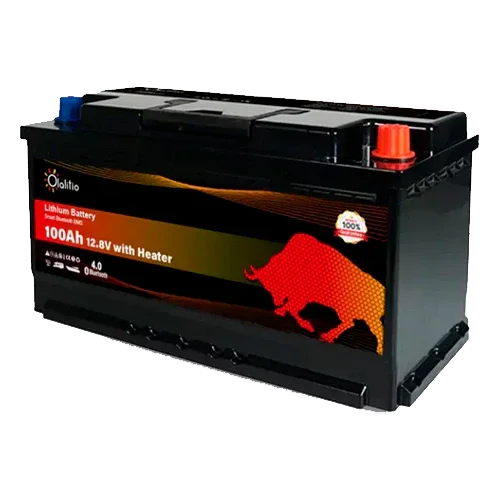

Lithium Battery 12V 100Ah Olalitio OLA-12-100-SH Under-Seat Heating Bluetooth
Modelo: OLA-12-100-SH Bajo Asiento Calefacción Bluetooth- Sku: OLALBAT005
- Vendor: Olalitio
Specifications
Product Description
The Olalitio OLA-12-100-SH 12V 100Ah Lithium Battery Under-Seat Heating Bluetooth is designed to perform in cold climates and confined spaces. With 1,280 Wh of energy, intelligent BMS, and IP65 enclosure, it combines a slim under-seat format with an integrated heating system that raises the internal temperature before charging to protect the cells when the environment is freezing. Bluetooth connectivity allows you to check voltage, current, state of charge, and BMS events from your mobile phone, making daily use easier in camper vans, caravans, marine, or 12 V photovoltaic applications.
Main Features
- Under-seat format: narrow chassis for tight spaces in vehicles and boats.
- Integrated heating: thermal module that enables safe charging in cold climates by preheating the pack.
- Energy and power: 100 Ah / 1,280 Wh at 12.8 V, 150 A continuous discharge and 450 A peak (200–500 ms).
- Longevity: >4,500 cycles at 90% DoD, very competitive cost per kWh compared to lead-acid.

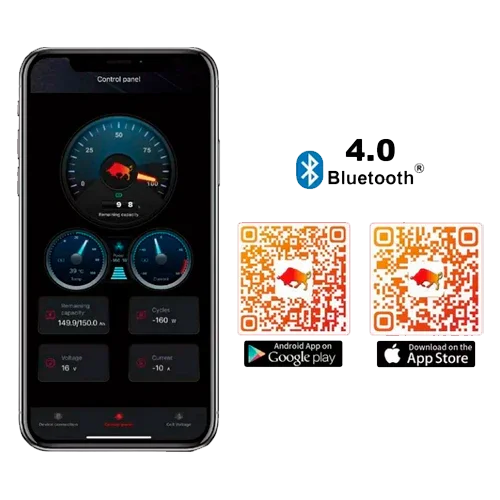

- Bluetooth 4.0: real-time monitoring of parameters and alarms from a smartphone.
- IP65 protection: sealed ABS enclosure against dust and water jets; SAE terminals.
Advantages or Benefits
- Ready for winter: internal heating prevents damage from cold charging and keeps the battery available when you need it most.
- More autonomy, less weight: replaces larger lead-acid banks, frees up space, and reduces alternator and charger consumption.
- Active safety: the BMS protects against overcharge, overdischarge, overtemperature, and short circuit.
- Mobile control: check SOC, voltage, and current to prevent deep discharges and plan recharges.
- Flexible installation: slim under-seat format, SAE connections, and the possibility of expansion in series/parallel.
Purpose or Applications
Ideal for camper vans and caravans (fridge, pumps, lights, 230 V inverter), marine (onboard services and electronics), and 12 V solar energy in shelters, cabins, and telecommunications. Its under-seat design and IP65 rating simplify clean installations resistant to vibration, dust, and splashes, even in low-temperature environments.
Technical Specifications
| Model | OLA-12-100-SH |
| Chemistry | Lithium (Li-ion) with integrated BMS |
| Capacity / Energy | 100 Ah / 1,280 Wh |
| Nominal voltage | 12.8 V |
| Operating range | 10–14.6 V |
| Number of cycles | >4,500 @ 90% DoD |
| Charge profile | CCCV / IU at 14.6 V |
| Charge current | Recommended 30 A (max. 50 A) |
| Continuous discharge | 150 A |
| Discharge peak | 450 A (200–500 ms) |
| Heating | Integrated; heater operation −5 °C to 35 °C |
| Bluetooth | Integrated (4.0), monitoring via app |
| Configurations | Up to 4 in series and 4 in parallel (4S4P) |
| Protection | IP65 |
| Enclosure / Terminals | ABS / SAE |
| Dimensions (L × W × H) | 355 × 175 × 188 mm |
| Weight | 12.6 kg |
| Discharge temperature | −20 °C to 75 °C |
| Charge temperature | 0 °C to 50 °C (with heating, automatic preheating) |
| Storage temperature | −5 °C to 35 °C |
| Warranty | 5 years |
Compatibilities
Compatible with 12 V systems: 12 V MPPT/PWM solar charge controllers, 230 V chargers with lithium profile (14.6 V), and 12 V inverters. For expansions, use identical batteries (same brand/model and state of charge), balance them before connecting, and protect each branch with fuses and disconnectors. For series connections, respect the limit of up to 4S and verify the permissible voltages of associated equipment.
The Olalitio OLA-12-100-SH 12V 100Ah Lithium Battery Under-Seat Heating Bluetooth is the perfect ally for cold climates: 150 A power, internal heating, IP65, and intelligent control for reliable supply in camper vans, marine, and solar applications.
