Lithium Battery 12V 100Ah Olalitio OLA-12-100-SLN3 Under Seat Bluetooth
Modelo: OLA-12-100-SLN3 Bajo Asiento Bluetooth- Sku: OLALBAT003
- Vendor: Olalitio
Specifications
Product Description

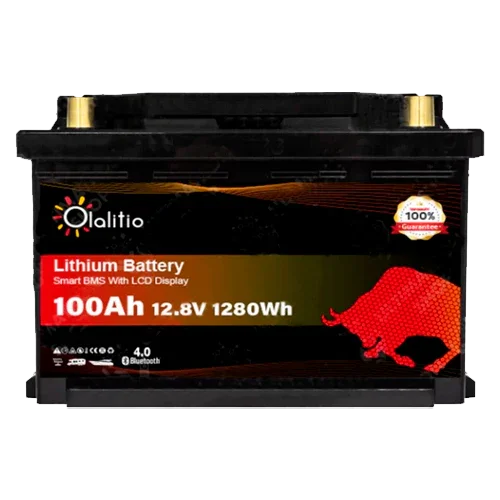

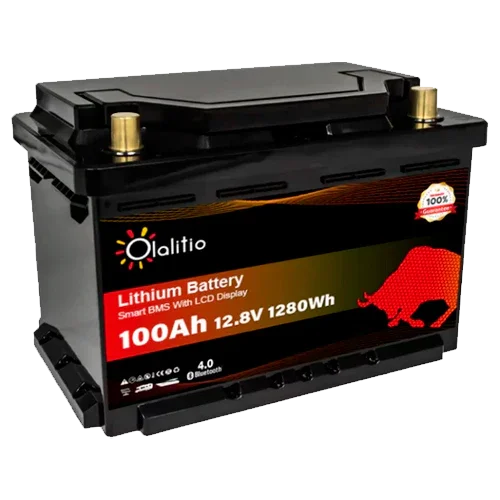

The Olalitio OLA-12-100-SLN3 12V 100Ah Lithium Battery Under-Seat Bluetooth is designed in a slim format for installation under the seat or in tight spaces without sacrificing capacity. Its usable 1,280 Wh, integrated BMS, and IP65 protection ensure safety and performance in camper vans, caravans, boats, or 12 V photovoltaic systems. The Bluetooth app allows you to monitor voltage, current, and alarms from your mobile phone for total control.
Main Features
- Slim under-seat format: compact dimensions to make better use of space in vehicles and boats.
- Energy and capacity: 100 Ah / 1,280 Wh at 12 V to power demanding loads.
- Longevity: more than 6,000 cycles at 80% DoD, reducing the cost per kWh over its service life.

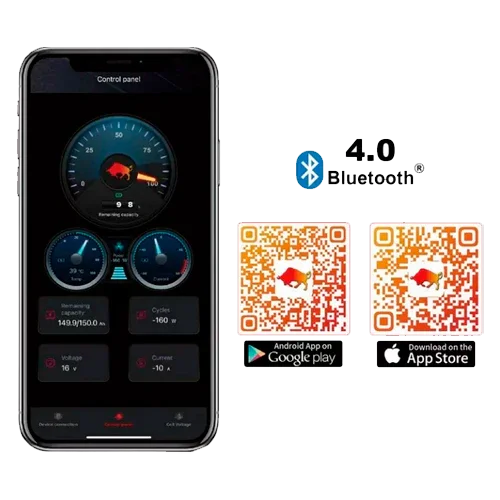

- Integrated Bluetooth: real-time monitoring of BMS parameters and events from your smartphone.
- Robust construction: ABS enclosure with IP65 protection rating, suitable for demanding environments.
- Ready for 12 V systems: compatible with solar charge controllers and chargers with lithium profile (14.6 V).
Advantages or Benefits
- More autonomy with less weight and volume: replaces larger lead-acid batteries, freeing up useful space.
- Active safety: BMS with protections against overcharge, overdischarge, overtemperature, and short circuit.
- Intelligent control: the app prevents deep discharges and facilitates preventive maintenance.
- Flexible installation: slim format, SAE terminals, and the possibility to work in series/parallel.
- Intensive use without losses: no “memory effect” and excellent stability under continuous loads.
Purpose or Applications
Ideal for camper vans and caravans (refrigerator, water pumps, lighting, and 230 V inverter), marine (onboard services and electronics), and 12 V solar energy in shelters, cabins, buoys, or telecommunications. The under-seat format allows for clean and safe installations in very limited spaces.
Technical Specifications
| Model | OLA-12-100-SLN3 |
| Chemistry | Lithium with integrated BMS |
| Nominal capacity | 100 Ah (1,280 Wh) |
| Nominal voltage | 12.8 V |
| Operating range | 10–14.6 V |
| Life cycles | >6,000 @ 80% DoD |
| Charge profile | CCCV / IU at 14.6 V |
| Charge current | Recommended 20 A (max. 50 A) |
| Continuous discharge | 100 A |
| Discharge peak | 300 A (200–500 ms) |
| Bluetooth | Integrated (4.0) |
| Configurations | Up to 4 in series and 4 in parallel (4S4P) |
| Protection | IP65 |
| Terminals | SAE |
| Dimensions | 279 × 175 × 189 mm (L × W × H) |
| Weight | 10.7 kg |
| Enclosure material | ABS |
| Discharge temperature | –20 °C to 75 °C |
| Charge temperature | 0 °C to 50 °C |
| Storage temperature | –5 °C to 35 °C |
| Warranty | 5 years |
Compatibilities
Works with 12 V MPPT/PWM solar charge controllers, 230 V chargers with lithium profile (14.6 V), and 12 V inverters. For expansions, always use identical batteries (same brand/model and state of charge), balance before connecting, and protect each branch with suitable fuses and disconnectors.
The Olalitio OLA-12-100-SLN3 12V 100Ah Lithium Battery Under-Seat Bluetooth offers high energy density, slim format, and intelligent control, a professional and durable solution for 12 V mobile and solar installations.
