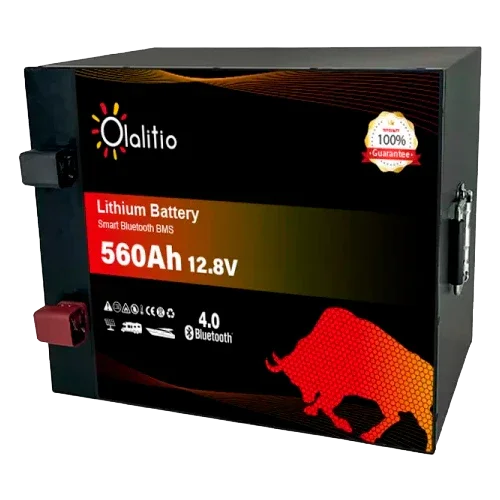

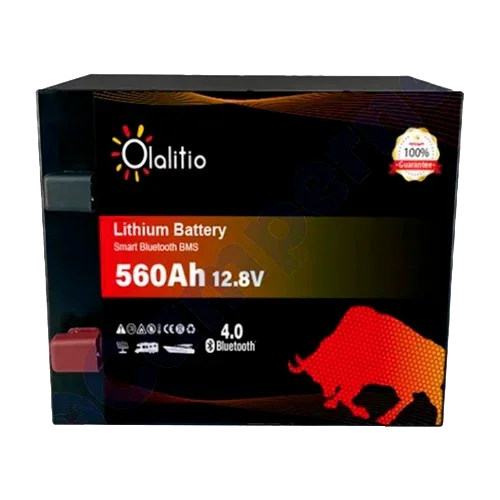

Lithium Battery 12V 560Ah Olalitio OLA-12-560-M Under Seat Bluetooth
Modelo: OLA-12-560-M Bajo Asiento Bluetooth- Sku: OLALBAT016
- Vendor: Olalitio
Specifications
Product Description
The Olalitio OLA-12-560-M 12V 560Ah Lithium Battery Under-Seat Bluetooth is designed to provide great autonomy in 12 V systems without compromising safety, control, and reliability. With 7,168 Wh usable at 12.8 V, an intelligent BMS, and Bluetooth 4.0 connectivity, it allows you to monitor voltage, current, state of charge, and events from your mobile device, simplifying daily management in campers, boats, and photovoltaic projects. Its metal enclosure with IP65 protection and protective electronics ensure stable operation under continuous demand and in demanding environments.
Main Features
- High energy: 560 Ah at 12.8 V (≈7.17 kWh) to power continuous loads and 12 V inverters with ease.
- Sustained power: 200 A continuous discharge and up to 600 A peak (200–500 ms) for startups and transient peaks.
- Safe fast charging: CCCV/IU profile at 14.6 V; 100 A recommended (max. 150 A).
- True longevity: >4,500 cycles at 90% DoD, drastically reducing the cost per kWh over its service life.

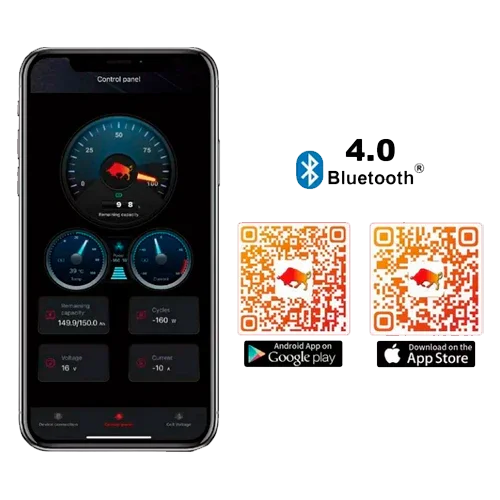

- Bluetooth 4.0: real-time BMS monitoring from a smartphone.
- Robustness: metal enclosure IP65, designed for vibrations, dust, and splashes.
Advantages or Benefits
- More autonomy with less volume: replaces multiple lead-acid banks, frees up space, and reduces overall weight.
- Active safety: BMS with protections against overcharge, overdischarge, short circuit, and overtemperature (cutoff at 65 °C and reconnection at 48 °C).
- Intelligent management: the Bluetooth app helps you avoid deep discharges, plan recharges, and detect anomalies in time.
- Stable performance: maintains voltage under demanding loads, ideal for refrigerators, pumps, electronics, and inverter peaks.
- Versatile installation: format for technical compartments or under-seat (depending on space), with high-reliability M8 terminals.
Purpose or Applications
Suitable for camper and caravan (refrigerator, water pumps, lighting, 12 V outlets, and 230 V inverter), marine (onboard services, electronics, windlass within current limits), and 12 V solar energy in shelters, cabins, telecommunications, or backup systems. Its IP65 rating and operational temperature range make it suitable for variable climates, vibrations, and intensive use.
Technical Specifications
| Model | OLA-12-560-M |
| Chemistry | LiFePO4 with integrated BMS |
| Capacity / Energy | 560 Ah / ≈7,168 Wh |
| Nominal voltage | 12.8 V |
| Operating range | 10–14.6 V |
| Number of cycles | >4,500 @ 90% DoD |
| Charge profile / voltage | CCCV / IU at 14.6 V |
| Charge current | Recommended 100 A (max. 150 A) |
| Continuous discharge | 200 A |
| Discharge peak | 600 A (200–500 ms) |
| Bluetooth | Integrated 4.0 (monitoring via app) |
| Environmental protection | IP65 |
| Enclosure / Terminals | Metal / M8 |
| Dimensions (L × W × H) | 440 × 300 × 375 mm |
| Weight | 56 kg |
| Discharge temperature | −20 to 60 °C |
| Charge temperature | 0 to 45 °C |
| High temperature cutoff | 65 °C (reconnection at 48 °C) |
| Warranty | 5 years |
Compatibilities
Compatible with 12 V systems: 12 V MPPT/PWM solar charge controllers, 230 V chargers with lithium profile (14.6 V), and 12 V inverters. For expansions, use identical batteries (same brand/model and state of charge), balance before connecting, and protect each branch with suitable fuses/disconnectors. Consult the manufacturer before making series/parallel connections to respect the limits of the BMS and associated equipment.
The Olalitio OLA-12-560-M 12V 560Ah Lithium Battery Under-Seat Bluetooth combines high capacity, 200 A continuous, IP65, and intelligent control, offering a professional and durable solution for 12 V mobility and solar energy with maximum peace of mind.
