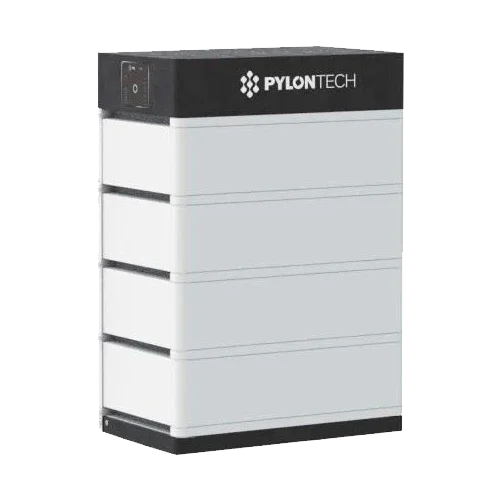

48V Lithium Battery Pylontech Force L1 14.20kWh with BMS
Modelo: Force L1 14,20kWh- Sku: PYLOBAT031
- Vendor: Pylontech
Specifications
Product Description
The 48V Lithium Battery Pylontech Force L1 14.20kWh with BMS increases the capacity of the Force L1 system through four FL48074 modules managed by the FC0048-100S BMS. Its 48 V architecture with LiFePO4 chemistry ensures maximum safety and a very long service life, while the stackable design without internal wiring simplifies assembly, reduces incidents, and offers a refined aesthetic for residential use.
Main Features
- Indicative usable capacity: up to ~12.8 kWh with 90% DoD (14.20 kWh nominal).
- Stable power delivery: 75 A continuous and up to 110 A peak (15 s).
- More daily autonomy: ideal for medium-high residential consumption and extended backup.
- Robustness and protection: IP55, integrated circuit breaker, and active management by BMS.
- Effortless expansion: stackable column format, no bridges between modules.
- Universal integration: RS485/CAN with broad compatibility in 48 V ecosystems.
Advantages or Benefits
- Energy for the whole day: greater usable capacity to cover more hours of nighttime consumption.
- Optimized total cost: high efficiency ≈96% and >6000 cycles reduce the cost per kWh delivered.
- Residential safety: LFP chemistry, certifications, and active cell control.
- Scalability: allows expansion to 17.76 / 21.31 / 24.86 kWh while maintaining design and electronics.
- Agile installation: guided stacking and minimal external wiring for quick commissioning.
Purpose or Applications
Demanding residential self-consumption, small businesses with evening/nighttime consumption, home UPS, and off-grid projects with sufficient photovoltaic production. Excellent for homes with heat pumps, swimming pools, or intensive appliances.
Technical Specifications
| System capacity | 14.20 kWh (4× FL48074) |
| System voltage | 48 V (LV) |
| Electrical capacity | 296 Ah (sum of modules) |
| Continuous / peak current | 75 A / 110 A (15 s) |
| Chemistry | LiFePO4 (LFP) |
| DoD / Efficiency | 90% / ≈96% |
| Communication | RS485 / CAN (BMS FC0048-100S) |
| Protection | IP55; integrated circuit breaker |
| Approx. dimensions (W×D×H) | 600×380×870 mm (base + BMS + 4 modules) |
| Approx. weight | ≈159 kg (complete stack) |
| Operating temperature | 0–50 °C |
| Cycles / Service life | >6000 / 15 years (nominal conditions) |
| Certifications | VDE2510-50, IEC62619, CE, IEC62477-1, UN38.3 |
Compatibilities
Includes FC0048-100S BMS and 4 FL48074 modules. Compatible with 48 V hybrid inverters that support LFP batteries via RS485/CAN (check the inverter manufacturer's list). The stack can be expanded by adding FL48074 modules up to the higher configurations of the Force L1 series.
The 48V Lithium Battery Pylontech Force L1 14.20kWh with BMS offers more daily autonomy, high safety, and seamless integration for residential projects seeking performance and modular growth.
