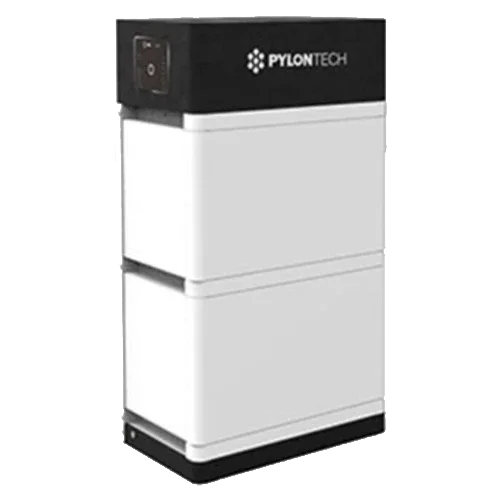

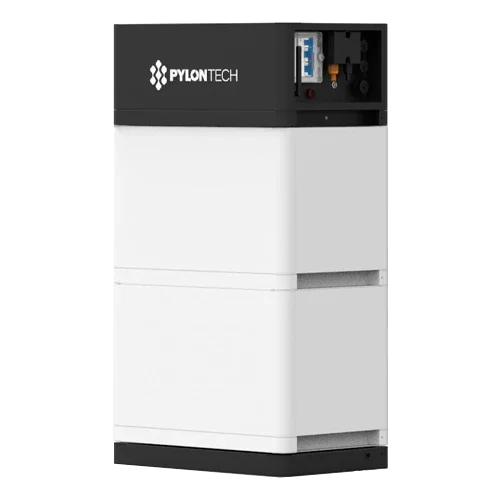

48V Lithium Battery Pylontech Force L2 7.10kWh with BMS

Modelo: Force L2 7,10kWh

Sku: PYLOBAT035
Vendor: Pylontech

€4.609,34 EUR

€3.687,47 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

48V Lithium Battery Pylontech Force L2 7.10kWh with BMS (2× FL4874M + FC0048M-100S). Modular LFP system with IP55, 90% DoD, >6000 cycles and RS485/CAN bus. Compact, efficient, and ready for self-consumption and backup.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Pylontech Force L2 48V Lithium Battery 7.10kWh with BMS combines two FL4874M modules (3.552 kWh each) with the FC0048M-100S controller to form an elegant, safe, and very easy-to-install 48 V (LV) tower. The stackable design eliminates wiring between modules, speeds up assembly, and minimizes errors. With LiFePO4 chemistry, 90% depth of discharge, ≈96% efficiency, and IP55 protection rating, it is a robust solution for homes starting with storage or seeking reliable backup.

Main Features

System capacity: 7.10 kWh (2× FL4874M, 48 V, 148 Ah).
Operating current: 75 A nominal and up to 110 A peak (15 s); depending on configuration, up to 100 A nominal may be supported.
Protection and durability: IP55, >6000 cycles, and estimated lifespan of 15 years.
Stackable installation: no bridges between modules; minimal external wiring.
Intelligent management: BMS FC0048M-100S with RS485/CAN communications.

Advantages or Benefits

Ready to expand: increase to 10.70 / 14.20 kWh by adding modules in the same tower.
Real efficiency: fewer losses and more usable kWh each day.
Top-level safety: stable LFP chemistry, integrated circuit breaker, and VDE/IEC certifications.
Clean installation: column format with residential aesthetics and minimal maintenance.
Wide compatibility: CAN/RS485 integration with 48 V inverters.

Purpose or Applications

Residential self-consumption, small businesses, home UPS, backup against outages, and 48 V off-grid systems. Ideal as the first phase of scalable storage.

Technical Specifications

System capacity	7.10 kWh (2× FL4874M)
System voltage	48 V (LV)
Electrical capacity	148 Ah
Nominal / peak current	75 A / 110 A (15 s)
Chemistry	LiFePO4 (LFP)
DoD / Efficiency	90% / ≈96%
Communication	RS485 / CAN (BMS FC0048M-100S)
Protection rating	IP55
Tower height	822 mm (base + BMS + 2 modules)
Module dimensions	450×296×296 mm (each module)
Approx. tower weight	≈82 kg
Operating temperature	0–50 °C
Cycles / Lifespan	>6000 / ~15 years
Certifications	VDE2510-50, IEC62619, CE, IEC62477-1, CEC, UN38.3

Compatibilities

Includes BMS FC0048M-100S and 2 FL4874M modules. Compatible with 48 V inverters that support LFP batteries via RS485/CAN. Expandable by adding FL4874M modules in the same Force L2 tower.

The Pylontech Force L2 48V Lithium Battery 7.10kWh with BMS offers safety, efficiency, and modular growth for your 48 V residential storage installation.
