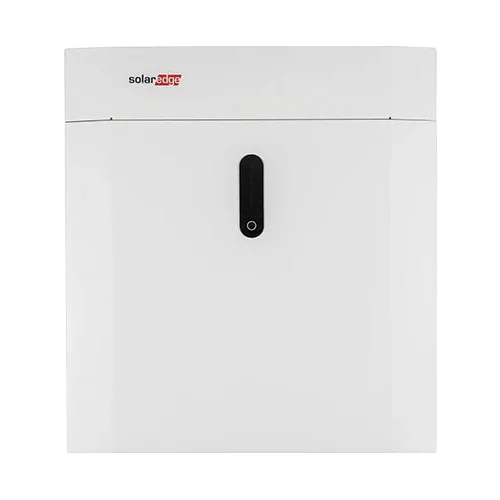

Lithium Battery 48V 4.6kWh SolarEdge 1xBAT-05K48
Modelo: 1xBAT-05K48- Sku: SOEDBAT002
- Vendor: SolarEdge
Specifications
Product Description
The 48V 4.6kWh Lithium Battery SolarEdge 1xBAT-05K48 is the low-voltage storage block of the SolarEdge Home ecosystem. With LFP chemistry, IP65 protection, and native communication with Home Hub and Home Wave inverters, it provides high efficiency thanks to DC coupling and a clean installation. This configuration includes a floor stand and top cover to ensure the tower is ready and aesthetically pleasing from day one.
Main Features
- Usable energy per module: 4.6 kWh (DoD 100%).
- Continuous power (charge/discharge, 1 module): 2.825/4.096 kW.
- Voltage range: 44.8–56.5 V DC; safe and stable LFP chemistry.
- Communications: RS485 between modules and CAN bus to the inverter.
- Protection rating IP65, indoor/outdoor use, and noise <25 dBA.
- Floor mounting with wall anchoring; tower with included cover.
Advantages or Benefits
- Higher system performance by operating in direct current alongside the SolarEdge inverter.
- Enhanced safety with LiFePO₄ technology and internal protections.
- Scalable up to 5 modules per inverter to expand up to 23 kWh as needed.
- Plug & play installation with SetApp and minimal wiring.
- Unified management from the SolarEdge app: generation, consumption, and battery.
Purpose or Applications
Ideal for homes with photovoltaic self-consumption seeking to store daily surplus for nighttime use, reduce electricity bills, and cover critical loads during micro-outages when the system includes backup functions.
Technical Specifications
| Usable capacity | 4.6 kWh |
| Continuous power (charge/discharge) | 2.825 kW / 4.096 kW |
| Voltage range | 44.8–56.5 V DC |
| Chemistry | LiFePO₄ (LFP) |
| Cycle efficiency (peak) | >95.4 % |
| Communications | RS485 (inter-module), CAN to inverter |
| Protection rating | IP65 |
| Module dimensions (W×H×D) | 540 × 500 × 240 mm |
| Weight | 54.7 kg |
| Tower height (1 module with cover and stand) | ≈ 670 mm |
| Operating temperature | −10 to +50 °C |
| Noise | < 25 dBA |
| Modules per inverter | Up to 5 (max. 23 kWh) |
| Warranty | 10 years |
| Includes | Floor stand and top cover |
Compatibilities
Direct compatibility with SolarEdge Home Hub and SolarEdge Home Wave inverters (DC coupling). For expansions to multiple batteries, the corresponding interconnection kit is required.
The 48V 4.6kWh Lithium Battery SolarEdge 1xBAT-05K48 is a safe, efficient, and scalable solution that optimizes your self-consumption with full integration into SolarEdge Home.
