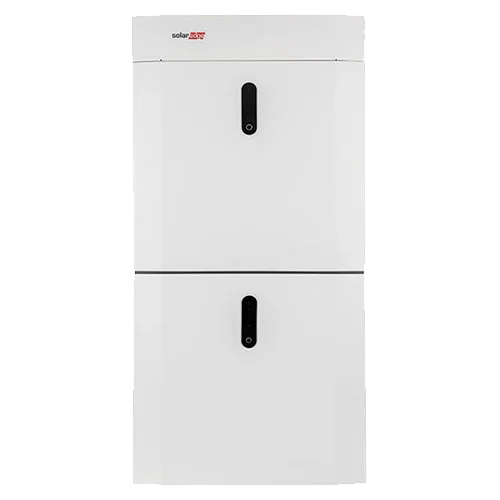

Lithium Battery 48V 9.6kWh SolarEdge 2xBAT-05K48
Modelo: 2xBAT-05K48- Sku: SOEDBAT003
- Vendor: SolarEdge
Specifications
Product Description
The 48V 9.6kWh Lithium Battery SolarEdge 2xBAT-05K48 groups two BAT-05K48 modules in a single tower with floor stand and top cover included. This low-voltage LFP configuration integrates natively with SolarEdge Home Hub and Home Wave inverters, offering high performance thanks to DC coupling and intelligent management from the SolarEdge app.
Main Features
- Usable system energy: 2 × 4.6 kWh = 9.2 kWh (DoD 100%).
- Continuous power with multiple modules: up to 5 kW (charge/discharge).
- Voltage range: 44.8–56.5 V DC; stable and safe LFP chemistry.
- Communications: RS485 between modules and CAN bus with the inverter.
- IP65 protection, indoor or outdoor installation, <25 dBA.
- Tower height with 2 modules, stand, and cover: ≈ 1170 mm.
Advantages or Benefits
- Greater daily autonomy: doubles the capacity compared to a single-module tower while maintaining high efficiency.
- Ready to expand: supports up to 5 modules per inverter (up to 23 kWh).
- Clean installation: plug & play kits and automatic configuration via SetApp.
- Safety and reliability: LiFePO₄ and certified internal protections.
- Centralized management: monitor production, consumption, and battery from a single SolarEdge platform.
Purpose or Applications
Recommended for homes and small businesses with higher night-time consumption or need for extended backup. Perfect for self-consumption systems seeking to reduce feed-in and optimize energy purchase.
Technical Specifications
| Usable system capacity | ≈ 9.2 kWh (2 × 4.6 kWh) |
| Continuous power (multiple modules) | 5 kW (charge/discharge) |
| Voltage range | 44.8–56.5 V DC |
| Chemistry | LiFePO₄ (LFP) |
| Cycle efficiency (peak) | >95.4 % |
| Communications | RS485 inter-modules; CAN with inverter |
| Protection rating | IP65 |
| Dimensions per module | 540 × 500 × 240 mm |
| Weight per module | 54.7 kg |
| Tower height (2 modules with stand and cover) | ≈ 1170 mm |
| Operating temperature | −10 to +50 °C |
| Noise | < 25 dBA |
| Modules per inverter | Up to 5 (max. 23 kWh) |
| Warranty | 10 years |
| Includes | Floor stand and top cover |
Compatibilities
Direct compatibility with SolarEdge Home Hub and SolarEdge Home Wave (DC coupling). For expansions or grouping of towers, official cable kits are used (battery-to-battery and tower-to-tower).
The 48V 9.6kWh Lithium Battery SolarEdge 2xBAT-05K48 combines capacity, efficiency, and seamless integration into the SolarEdge ecosystem to maximize your self-consumption and ensure energy when you need it most.
