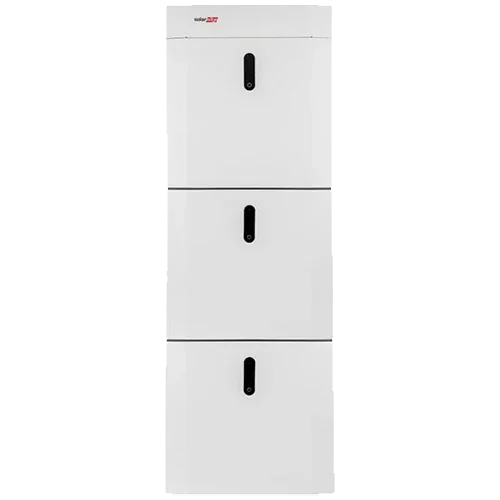

Lithium Battery 48V 13.8kWh SolarEdge 3xBAT-05K48
Modelo: 3xBAT-05K48- Sku: SOEDBAT004
- Vendor: SolarEdge
Specifications
Product Description
The 48V 13.8kWh Lithium Battery SolarEdge 3xBAT-05K48 combines three BAT-05K48 modules of 4.6 kWh each in a compact, safe, and outdoor-ready tower (IP65). Designed for native integration with SolarEdge Home Hub and Home Wave inverters via direct current coupling, this low-voltage solution (48 V) maximizes self-consumption performance, reduces losses compared to AC solutions, and offers plug & play installation with configuration via the SetApp app. Includes floor stand and top cover, achieving a refined aesthetic and stable wall mounting.
Main Features
- Usable system energy: 13.8 kWh (3 × 4.6 kWh; 100% DoD).
- Continuous system power: up to 5 kW (charge/discharge) with multiple modules.
- Safe chemistry: LiFePO₄ (LFP) with internal protections and integrated BMS.
- Communications: RS485 between modules; CAN bus to the SolarEdge inverter.
- IP65 protection, indoor/outdoor use; noise < 25 dBA.
- Tower installation: floor stand and cover included; wall anchoring.
Advantages or Benefits
- More daily autonomy: 13.8 kWh usable to cover night-time consumption, evening peaks, and possible micro-outages when using system backup functions.
- Total integration: a single ecosystem (inverter, battery, and app) simplifies configuration, monitoring, and support.
- True scalability: possibility to expand up to 5 modules per inverter (23 kWh), adapting capacity to the growth of the home or business.
- Superior efficiency: DC coupling that avoids double conversion and improves the overall performance of the PV system.
- Safety and durability: stable LFP chemistry, passive thermal management, and international certifications.
Purpose or Applications
Recommended for homes with medium-high consumption, small businesses, and second residences seeking to store solar surplus, reduce grid purchases, and have energy available in contingencies. Suitable for time-of-use tariffs, feed-in optimization, and projects with significant night-time demand (climate control, refrigeration, home IT, etc.).
Technical Specifications
| Usable system capacity | 13.8 kWh (3 × 4.6 kWh) |
| Continuous power (charge/discharge) | Up to 5 kW with multiple modules |
| Nominal voltage | 48 V DC (range 44.8–56.5 V) |
| Chemistry | LiFePO₄ (LFP) |
| Cycle efficiency (peak) | >95.4 % |
| Communications | RS485 inter-modules; CAN with inverter |
| Protection rating | IP65 (indoor/outdoor) |
| Dimensions per module | 540 × 500 × 240 mm |
| Weight per module | ≈54.7 kg |
| Tower height (3 modules with cover and stand) | ≈ 1,670 mm |
| Operating temperature | −10 to +50 °C |
| Noise | < 25 dBA |
| Modules per inverter | Up to 5 (max. 23 kWh) |
| Warranty | 10 years |
| Includes | Floor stand and top cover |
Compatibilities
Direct compatibility with SolarEdge Home Hub and SolarEdge Home Wave (DC coupling). For expansions and tower groupings, official battery-to-battery/tower-to-tower interconnection kits are used.
The 48V 13.8kWh Lithium Battery SolarEdge 3xBAT-05K48 offers capacity, efficiency, and seamless integration to maximize your self-consumption and ensure energy when you need it most.
