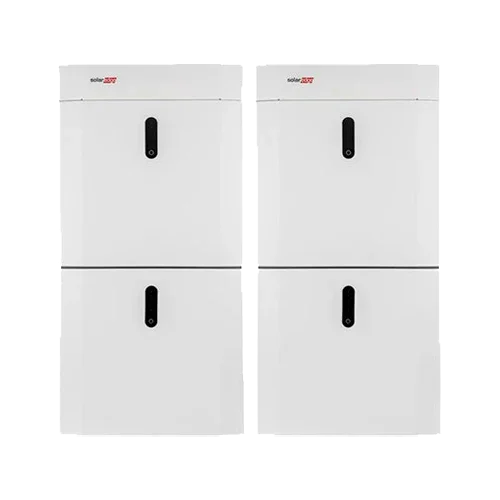

Lithium Battery 48V 18.4kWh SolarEdge 4xBAT-05K48
Modelo: 4xBAT-05K48- Sku: SOEDBAT005
- Vendor: SolarEdge
Specifications
Product Description
The 48V 18.4kWh Lithium Battery SolarEdge 4xBAT-05K48 is a residential/light commercial storage solution that integrates four BAT-05K48 modules (4.6 kWh each) into a single robust and sealed tower (IP65). Operating in direct current alongside SolarEdge Home Hub and Home Wave inverters, it reduces conversion losses, accelerates response, and simplifies commissioning via SetApp. Includes floor stand and top cover for a clean, safe installation with a professional finish.
Main Features
- Usable system energy: 18.4 kWh (4 × 4.6 kWh; 100% DoD).
- Continuous system power: up to 5 kW (charge/discharge) with multiple modules.
- LFP chemistry with integrated BMS, high thermal stability, and long service life.
- Communications: RS485 between modules and CAN bus to the inverter.
- Protection rating IP65, indoor or outdoor installation; noise < 25 dBA.
- Scalable up to 5 modules per inverter (total capacity 23 kWh).
Advantages or Benefits
- High storage: 18.4 kWh to cover prolonged nighttime consumption, slow electric vehicles, or simultaneous peaks.
- Superior performance: DC coupling and native SolarEdge control maximize PV-battery cycle efficiency.
- Professional installation: predefined tower with stand and cover; minimal wiring and automatic configuration.
- Safety and reliability: LiFePO₄, IP65 enclosure, and multiple electronic protections.
- Unified management: view generation, consumption, SOC, and energy flow in a single app.
Purpose or Applications
Ideal for homes with high nighttime demand, small businesses with critical equipment, second homes with unsupervised periods, and projects seeking to reduce purchases during peak hours. Suitable for self-consumption plans with backup, zero export optimization, and TOU tariff savings strategies.
Technical Specifications
| Usable system capacity | 18.4 kWh (4 × 4.6 kWh) |
| Continuous power (charge/discharge) | Up to 5 kW with multiple modules |
| Nominal voltage | 48 V DC (range 44.8–56.5 V) |
| Chemistry | LiFePO₄ (LFP) |
| Cycle efficiency (peak) | >95.4 % |
| Communications | RS485 inter-modules; CAN with inverter |
| Protection rating | IP65 (indoor/outdoor) |
| Dimensions per module | 540 × 500 × 240 mm |
| Weight per module | ≈54.7 kg |
| Tower height (4 modules with cover and stand) | ≈ 2,170 mm |
| Operating temperature | −10 to +50 °C |
| Noise | < 25 dBA |
| Modules per inverter | Up to 5 (max. 23 kWh) |
| Warranty | 10 years |
| Includes | Floor stand and top cover |
Compatibilities
Direct compatibility with SolarEdge Home Hub and SolarEdge Home Wave (DC coupling). For expansions or tower grouping, official battery-to-battery/tower-to-tower interconnection kits are used, maintaining RS485 communication and CAN control with the inverter.
The 48V 18.4kWh Lithium Battery SolarEdge 4xBAT-05K48 offers great capacity, high efficiency, and seamless integration into the SolarEdge ecosystem to take your self-consumption to the next level with maximum reliability.
