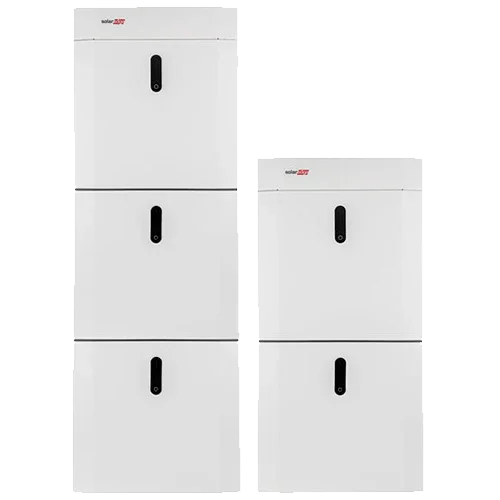

Lithium Battery 48V 23kWh SolarEdge 5xBAT-05K48
Modelo: 5xBAT-05K48- Sku: SOEDBAT006
- Vendor: SolarEdge
Specifications
Product Description
The 48V 23kWh Lithium Battery SolarEdge 5xBAT-05K48 combines five BAT-05K48 modules (4.6 kWh each) in a single high-performance tower, ready for outdoor use (IP65) and fully integrated into the SolarEdge Home ecosystem. By operating in direct current with Home Hub and Home Wave inverters, it reduces conversion losses and optimizes self-consumption. The solution is delivered with a floor stand and top cover for stable, safe installation with a professional finish.
Main Features
- Usable system energy: 23 kWh (5 × 4.6 kWh; 100% DoD).
- Continuous system power: up to 5 kW (charge/discharge) with multiple modules.
- Safe chemistry: LiFePO₄ (LFP) with BMS and electronic protections.
- Communications: RS485 between modules and CAN bus with the inverter for native control.
- Protection rating IP65 for indoor/outdoor use; noise < 25 dBA.
- Tower installation: floor stand and cover included; wall anchoring recommended.
Advantages or Benefits
- Superior autonomy: 23 kWh usable to cover long nighttime consumption, simultaneous appliances, and extended backup.
- High efficiency: DC coupling that avoids double conversion, improving overall photovoltaic system performance.
- Total integration: a single app to monitor generation, consumption, SOC, and energy flows, with quick configuration via SetApp.
- Safety and durability: stable LFP chemistry, passive thermal management, and certifications that provide long-term peace of mind.
- Scalable and modular: module-based architecture that facilitates replacements and future reconfigurations.
Purpose or Applications
Designed for homes with high energy demand, small businesses, second residences, and projects requiring maximum storage to reduce peak hour purchases, improve self-consumption, and provide energy during contingencies. Ideal for zero feed-in strategies, time-of-use tariffs, and support for critical loads when the system includes backup elements.
Technical Specifications
| Usable system capacity | 23 kWh (5 × 4.6 kWh) |
| Continuous power (charge/discharge) | Up to 5 kW with multiple modules |
| Nominal voltage / range | 48 V DC / 44.8–56.5 V |
| Chemistry | LiFePO₄ (LFP) |
| Cycle efficiency (peak) | >95.4 % |
| Communications | RS485 between modules; CAN with inverter |
| Protection rating | IP65 (indoor/outdoor) |
| Dimensions per module | 540 × 500 × 240 mm |
| Weight per module | ≈ 54.7 kg |
| Tower height (5 modules with cover and stand) | ≈ 2,670 mm |
| Operating temperature | −10 to +50 °C |
| Noise | < 25 dBA |
| Warranty | 10 years |
| Includes | Floor stand and top cover |
Compatibilities
Direct compatibility with SolarEdge Home Hub and SolarEdge Home Wave inverters (DC coupling). For expansions, tower grouping, or battery-to-battery connection, official interconnection kits are used, maintaining RS485 communication between modules and CAN control with the inverter.
The 48V 23kWh Lithium Battery SolarEdge 5xBAT-05K48 is the highest capacity option in the SolarEdge low voltage system: safe, efficient, and fully integrated to take your self-consumption and energy backup to the highest level.
