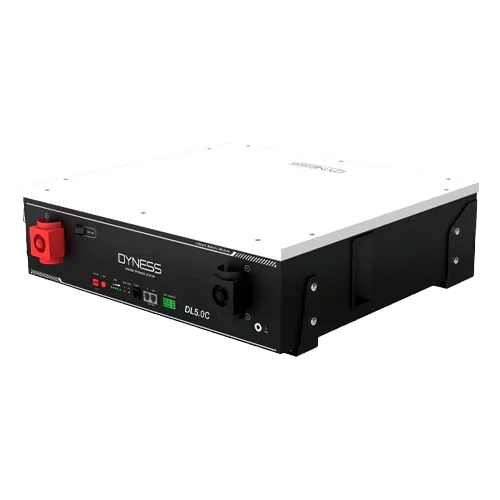

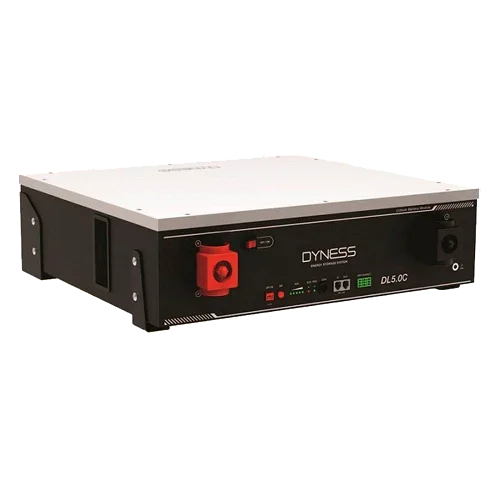

Dyness DL5.0C 48V 5.12kWh LiFePO4 Lithium Battery
Modelo: DL5.0C- Sku: DYNEBAT003
- Vendor: Dyness
Specifications
Product Description
The Dyness DL5.0C 48V 5.12kWh LiFePO4 Lithium Battery is a low-voltage storage module (51.2 V nominal) designed for residential and light C&I installations seeking safety, performance, and scalability. With 5.12 kWh per unit and 100 Ah, it integrates an advanced BMS with CAN/RS485/RS232 communication to interface with leading 48 V inverters, monitoring via APP, and remote update option. Its design allows for wall, floor, or stacked mounting, facilitating progressive capacity expansion and quick, reliable commissioning.
Main Features
- LiFePO₄ (LFP) chemistry with high thermal safety, stability, and long service life.
- Energy per module: 5.12 kWh · capacity 100 Ah · nominal voltage 51.2 V (LV 48 V).
- BMS with OVP/UVP, OCP, OTP/UTP protections, cell balancing, and SOC/SOH reading.
- Connectivity: CAN/RS485 with Dyness profile; monitoring APP and remote update.
- Scalable: parallel connection of up to 50 units to increase kWh and bank power.

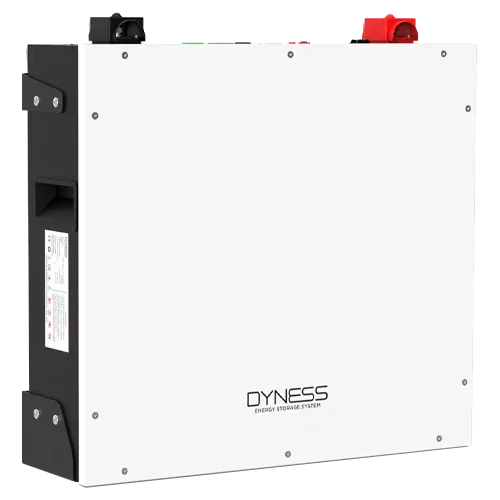

- Flexible mounting: wall, floor, or stacked; robust format for indoor use (IP20).
Advantages or Benefits
- More autonomy from day one: 5.12 kWh per module to cover peaks and nighttime consumption.
- Native integration with 48 V inverters thanks to BMS communication via CAN/RS485.
- Simple scaling: add modules as needed without redoing the installation.
- Efficiency and reliability: low internal resistance and active BMS management for stable performance.
- Optimized total cost: thousands of useful cycles and virtually zero maintenance.
Purpose or Applications
Ideal for residential self-consumption with storage, backup (backup/UPS) depending on the inverter, small commercial installations, telecom, and micro-industrial at 48 V. The DL5.0C is also perfect for expanding existing LV banks while maintaining native communication between the BMS and the inverter.
Technical Specifications
| Power | Up to ≈5.12 kW per module at 100 A (depending on BMS/inverter) |
| Energy | 5.12 kWh per module |
| Nominal voltage | 51.2 V (LV 48 V) |
| Capacity | 100 Ah |
| Communication | CAN / RS485 / RS232 (Dyness profile) |
| Cycles | ≥6,000 @80 % DoD (25 °C) |
| Continuous current | Recommended ≈50–75 A · Max. discharge ≈100 A |
| Voltage range | 44.8–57.6 V |
| Operating temperature | Charge 0…+55 °C · Discharge −20…+55 °C |
| Format | Wall/floor/stacked mounting · Indoor use (IP20) |
| Dimensions/Weight | ≈558 × 545 × 150 mm · ≈54 kg |
Compatibilities
Communicates via BMS with 48 V inverters that offer the Dyness profile via CAN/RS485, including Deye SUN (LP1 series), Solis RHI 48 V, GoodWe EM/ES 48 V, SolaX X1/X3 Hybrid LV, and Victron (MultiPlus/Quattro) via GX device over CAN bus. Not compatible with high-voltage (HV) ecosystems such as Tower/PowerCube/PowerDepot H.
For maximum performance, size the cable section to achieve a voltage drop ≤1–2 %, protect each battery and the bank with DC fuse/MCB and accessible isolator, make power connections in a star configuration on DC busbars, and use shielded data cable with the shield grounded at one end only. Select the “Dyness” profile on the inverter and verify telemetry (SOC, voltage, and current) before commissioning.
In summary, the Dyness DL5.0C 48V 5.12kWh LiFePO4 Lithium Battery is a professional solution for demanding renewable energy projects: it increases autonomy, optimizes space, and improves the overall efficiency of your installation.
