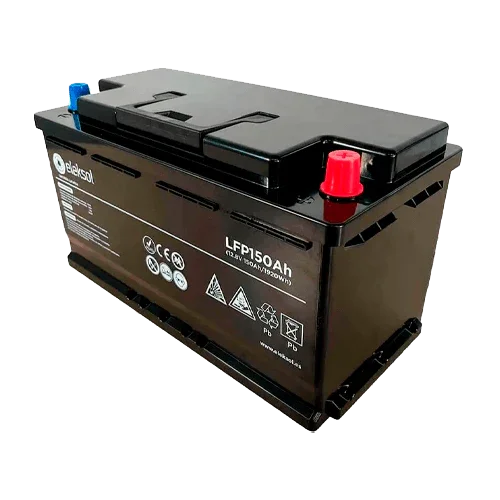

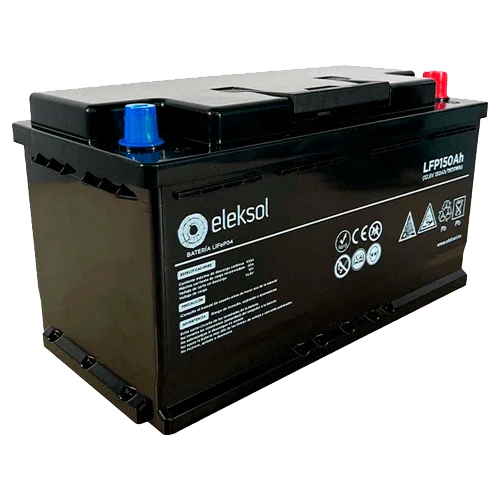

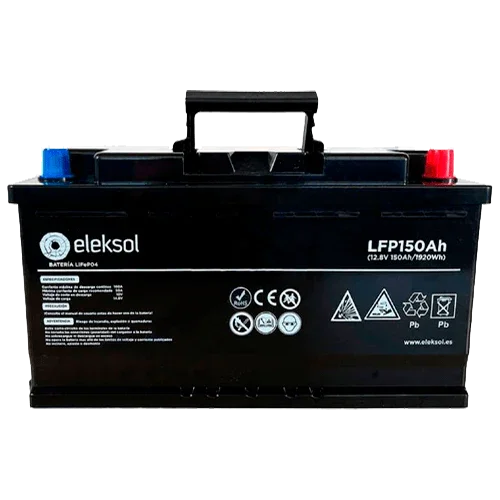

Eleksol Lithium Battery 12.8V 150Ah LFP150AH
Modelo: LFP150AH- Sku: ELEKBAT008
- Vendor: Eleksol
Specifications
Product Description
The Eleksol Lithium Battery 12.8V 150Ah LFP150AH is a high-performance LiFePO₄ (LFP) accumulator in a 12 V “drop-in” format, designed to replace AGM/GEL/VRLA lead-acid batteries without complications. It incorporates a protective BMS and high-quality prismatic cells to provide electrical safety, long service life (>3,000 cycles at 80% DoD), and stable energy delivery. With M8 terminals, a robust ABS case, and a contained weight (~20 kg), this solution is ideal for solar installations, UPS/EPS, marine, caravans, and telecommunications, where reliability, lightness, and fast recharging are valued.
Main Features
- Safe, stable, and maintenance-free LiFePO₄ (LFP) chemistry, with integrated BMS (protection for voltage, current, and temperature).
- 150 Ah at 12.8 V (≈ 1,920 Wh), high coulombic efficiency, and flat voltage curve for better energy utilization.
- Direct replacement for 12 V lead-acid; compatible in series up to 4 units (≈ 51.2 V) and in parallel up to 2 identical units.
- Fast recharge with CC-CV profile; recommended voltage 14.6 V per 12.8 V battery.
- Discharge peak 300 A/10 s and continuous discharge 150 A (≈ 1.9 kW DC per unit, before losses).
- Dimensions 483×170×241/246 mm, weight ≈ 20 kg, M8 terminals, and durable ABS container.
Advantages or Benefits
- Up to 50–70% less weight than AGM/GEL and greater usable energy per cycle: more autonomy in the same space.
- Long service life: >3,000 cycles at 80% DoD → lower total cost of ownership compared to lead-acid.
- Fast recharge and minimal self-discharge: ready for intensive, mobile, or short charging window uses.
- Active safety: the BMS protects against overcharge, overdischarge, short circuit, and extreme temperatures.
- Clean “plug & play” installation at 12 V, with less wiring and no periodic maintenance.
Purpose or Applications
Especially suitable for off-grid and self-consumption solar systems at 12/24/36/48 V (depending on series), UPS/EPS, telecommunications, control and automation, emergency lighting, marine, and caravans/motorhomes. Also suitable for light mobility and applications with moderate/high continuous power demands. In vehicles with alternators, it is recommended to interpose a DC-DC charger for proper voltage and current control.
Technical Specifications
| Nominal voltage | 12.8 V |
| Capacity | 150 Ah |
| Energy | ≈ 1,920 Wh |
| Technology | LiFePO₄ (LFP) with BMS |
| Charge voltage (CV) | 14.6 V |
| Charge current | Recommended 75 A · Max. 150 A |
| Continuous discharge | 150 A |
| Discharge peak | 300 A / 10 s |
| End of discharge (BMS) | 11.2 V |
| Life cycles | > 3,000 @ 80% DoD |
| Operating temperature | Discharge −20 ~ 55 °C · Charge 0 ~ 50 °C |
| Series / Parallel | Series up to 4 · Parallel up to 2 (identical units) |
| Terminals | M8 |
| Dimensions | 483 × 170 × 241/246 mm (L × W × H/Total H) |
| Weight | ≈ 20 kg |
| Container material | ABS |
Compatibilities
Compatible with PWM/MPPT solar charge controllers offering LiFePO₄ profile or adjustable voltages; with AC chargers for lithium (CC-CV 14.6 V) and with alternators via DC-DC charger. Works with 12 V pure sine wave inverters sized to the bank capacity: up to ~1.5–1.7 kW AC per battery (depending on efficiency and peaks). Suitable for series banks (24/36/48 V) with 4 identical units and for parallel expansion with 2 identical units (pre-equalize voltages, symmetrical wiring, and fuse per battery).
Eleksol Lithium Battery 12.8V 150Ah LFP150AH is a professional storage solution for renewable energy and critical backup, providing maximum safety, lightness, and control, optimizing the autonomy and efficiency of your installation.
