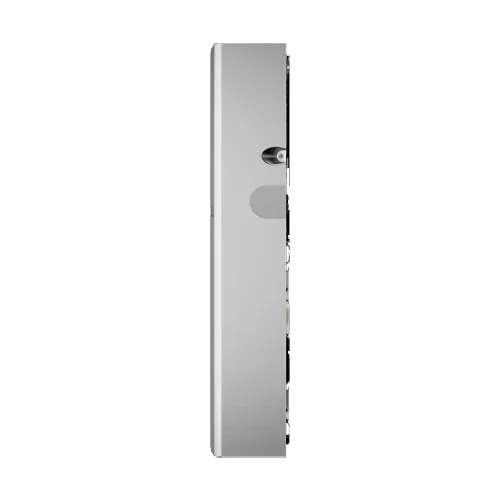

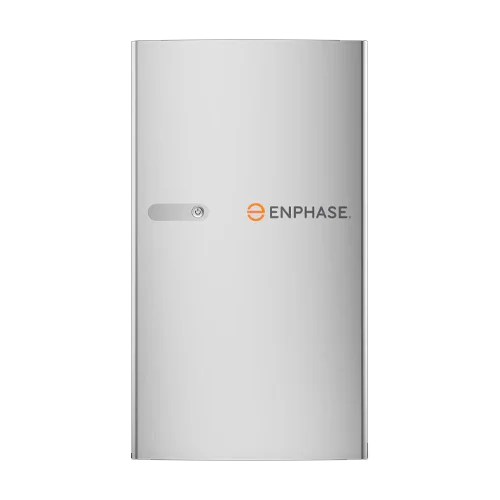

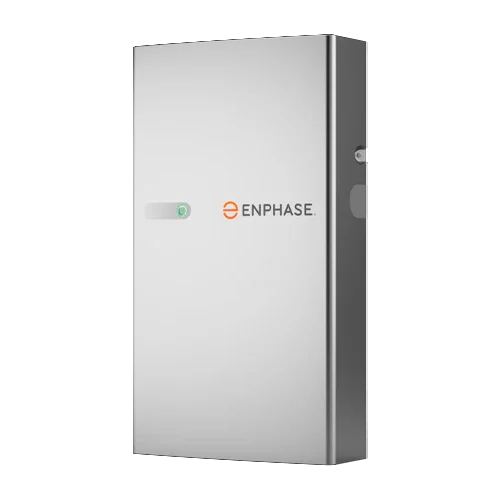

Enphase IQ Battery 5P 5kWh Lithium Battery Single-phase/Three-phase

Modelo: IQ Battery 5P

Sku: ENPHBAT001
Vendor: Enphase

€4.359,59 EUR

€3.487,67 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

The Enphase IQ Battery 5P 5kWh Lithium Battery Single-phase/Three-phase offers AC storage with 3.84 kVA, LFP chemistry, IP55, and integration with IQ Gateway for self-consumption and intelligent backup from the app.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Enphase IQ Battery 5P 5kWh Single-phase/Three-phase Lithium Battery is an AC-coupled storage system with FlexPhase technology that operates in single-phase or three-phase mode with the same unit. It incorporates six IQ8T-BAT microinverters, safe LFP chemistry, 3.84 kVA of continuous power, and IP55 rating. It integrates with IQ Gateway for advanced monitoring, remote updates, and intelligent management of self-consumption and tariffs, with the option of full backup via IQ System Controller 3 INT.

Main Features

Usable capacity: 5.0 kWh per unit (LFP, long service life).
Continuous output power: 3.84 kVA (single-phase) · 3.84 kVA in three-phase (1.28 kVA/phase).
FlexPhase: operation in single-phase 230 V or three-phase 230/400 V with the same battery.
Six integrated IQ8T-BAT microinverters; 100% AC coupling.
Round-trip AC-AC efficiency: up to 90% (typical at partial load).
Management and monitoring in Enphase App with IQ Gateway (Standard or Metered).

Advantages or Benefits

Simple installation: AC-coupled, no need to redesign existing PV strings.
Increased safety: LFP chemistry and sealed electronics; no fans.
Scalable: expand capacity by adding more IQ Battery 5P units in parallel.
Real savings: prioritizes self-consumption, optimizes by schedules and dynamic tariffs.
Reliable backup: with IQ System Controller 3 INT enables automatic backup.

Purpose or Applications

Ideal for homes and small businesses with photovoltaic self-consumption seeking flexible storage, full integration with Enphase microinverters, and backup capability. Perfect for new installations and repowering projects where safety, modularity, and quick commissioning are priorities.

Technical Specifications

Usable capacity	5.0 kWh
Continuous power (AC)	3.84 kVA (single-phase) · 3.84 kVA in three-phase (1.28 kVA/phase)
Chemistry	LiFePO₄ (LFP)
System voltage	230 V L-N (single-phase) · 230/400 V (three-phase)
Internal microinverters	6× IQ8T-BAT
AC-AC efficiency	Up to 90% (typical)
Protection	IP55 (battery) · IP67 (IQ8T-BAT)
Format	Wall or pedestal; natural convection (no fans)
Dimensions	980 × 550 × 188 mm
Installed weight	≈ 83 kg
Warranty	Up to 15 years or 6000 cycles (≥ 60% capacity)

Compatibilities

Native integration with IQ Gateway (Standard/Metered), IQ Relay 1P/3P, and IQ System Controller 3 INT for backup. Compatible with Enphase IQ7 and IQ8 microinverters and with single-phase 230 V and three-phase 230/400 V topologies. Can coexist with third-party inverters in backup configurations via System Controller.

Enphase IQ Battery 5P 5kWh Single-phase/Three-phase Lithium Battery is a professional solution for storing your solar energy, optimizing costs, and keeping your installation always under control from the app.

Enphase IQ Battery 5P 5kWh Single-phase/Three-phase Lithium Battery provides single/three-phase flexibility, LFP safety, and scalability to meet demanding self-consumption and backup projects.
