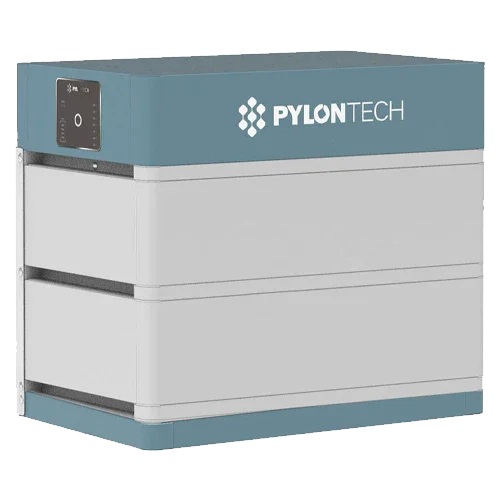

Pylontech Force H1 10.65kWh 144V Lithium Battery with BMS
Modelo: Force H1 10,65kWh 144V- Sku: PYLOBAT015
- Vendor: Pylontech
Specifications
Product Description
The Pylontech Force H1 10.65kWh 144V HV Lithium Battery with BMS is a high-voltage storage system based on LiFePO4 (LFP) chemistry that integrates 3 FH48074 modules of 3.55 kWh each and the BMS FC0500-40S controller. Designed for self-consumption and backup, it offers safety, efficiency, and stable communication with HV hybrid inverters via CAN/RS485.
Main Features
- Usable system energy: 10.65 kWh (3× FH48074 of 3.55 kWh).
- Nominal string voltage: 144 V (high voltage for HV inverters).
- LiFePO4 chemistry: high thermal safety, long cycle life, and low self-discharge.
- BMS FC0500-40S included: monitors cells, balances modules, and protects the system.
- CAN/RS485 communications for integration with compatible hybrid inverters.
- Stackable rack-type Force H1 format: clean installation, short cabling, and quick expansion.
Advantages or Benefits
- Efficiency and performance: the HV bus reduces currents, losses, and cable cross-section.
- Top-level safety: LFP + BMS with protections for voltage, current, and temperature.
- Scalability: expands to 14.20 / 17.76 / 21.31 / 24.86 kWh without changing architecture.
- Interoperability: stable link via CAN/RS485 with standard HV ecosystems.
- Orderly installation: vertical rack, compact footprint, and minimal maintenance.
Purpose or Applications
Residential and light commercial self-consumption with HV hybrid inverter; backup of critical loads; time-of-use arbitrage and increased self-consumption. Ideal for three-phase systems where efficiency and robust communication are prioritized.
Technical Specifications
| System energy | 10.65 kWh (3× 3.55 kWh) |
| Nominal voltage | 144 V (high voltage) |
| Chemistry | LiFePO4 (LFP) |
| Number of modules | 3× FH48074 in series |
| BMS | FC0500-40S (included) |
| Communication | CAN / RS485 (to inverter and monitoring) |
| Protections | OV/UV, OC, temp., short circuit, cell balancing |
| Protection rating | IP20 (indoor use, Force H1 rack) |
| Operating temperature | Charge 0–50 °C · Discharge −10–50 °C |
| Dimensions / weight | Stacked Force H1 set (see official drawing) |
| Service life | High, with thousands of cycles (typical DoD, 25 °C) |
| Warranty | Up to 10 years (according to manufacturer) |
Compatibilities
Direct compatibility with FH48074 modules and BMS FC0500-40S. Integrable with HV hybrid inverters (via CAN/RS485). See the manufacturer's official list for specific models. Accessories: Force H1 base/rack, wiring kits, and mounting elements.
The Pylontech Force H1 10.65kWh 144V HV Lithium Battery with BMS offers a safe, scalable, and efficient HV platform to stabilize your photovoltaic installation and ensure energy when you need it most.
