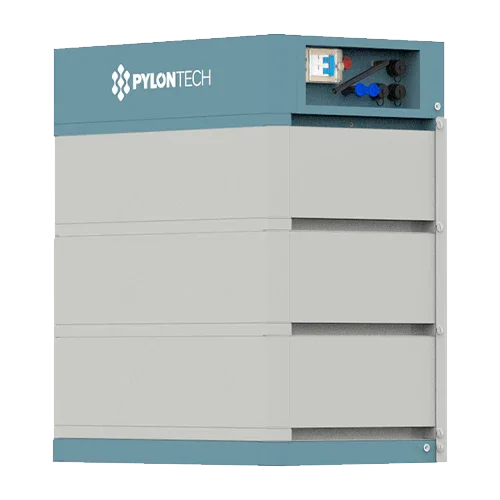

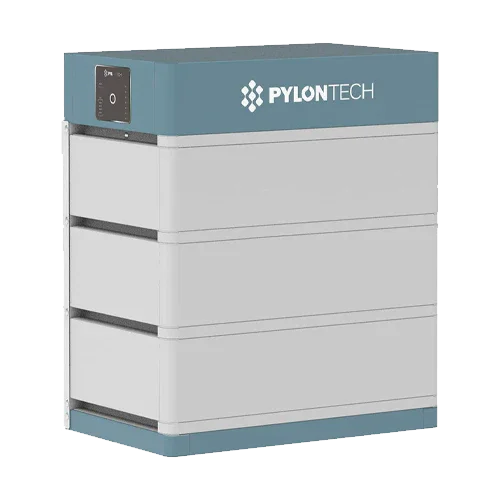

Pylontech Force H1 High Voltage Lithium Battery 14.20kWh 192V with BMS
Modelo: Force H1 14,20kWh 192V- Sku: PYLOBAT016
- Vendor: Pylontech
Specifications
Product Description
The Pylontech Force H1 HV Lithium Battery 14.20kWh 192V with BMS expands usable energy to 14.20 kWh through 4 FH48074 modules in series, managed by the BMS FC0500-40S. Its high-voltage architecture at 192 V optimizes currents and losses, providing a robust foundation for advanced self-consumption, three-phase backup, and intelligent energy management in residential or commercial environments.
Main Features
- System energy: 14.20 kWh (4× FH48074 of 3.55 kWh each).
- Nominal voltage: 192 V HV for integration with high-voltage hybrid inverters.
- Chemistry LiFePO4: maximum safety, thermal stability, and long cycle life.
- BMS FC0500-40S included: module balancing, telemetry, and comprehensive protections.
- Communications CAN/RS485: interoperability with standard HV ecosystems.
- Stackable Force H1 rack format: modular installation and expandable up to 24.86 kWh.
Advantages or Benefits
- More autonomy: 14.20 kWh to cover nighttime consumption and moderate peaks.
- Electrical performance: lower current for the same power → fewer losses and more compact cabling.
- Active safety: BMS monitors voltage, current, and temperature per module.
- Linear scalability: add modules without modifying the system or technical room.
- Minimal maintenance: sealed architecture, monitoring, and updatable firmware.
Purpose or Applications
Ideal for homes with medium/high consumption, SMEs, and three-phase back-up. Useful for time-of-use arbitrage (charge at low cost, use at high cost), increasing self-consumption, and reducing demand peaks.
Technical Specifications
| System energy | 14.20 kWh (4× 3.55 kWh) |
| Nominal voltage | 192 V (high voltage) |
| Chemistry | LiFePO4 (LFP) |
| Number of modules | 4× FH48074 in series |
| BMS | FC0500-40S (included) |
| Communication | CAN / RS485 with the inverter |
| Protections | OV/UV, OC, temperature, short circuit, balancing |
| Protection rating | IP20 (indoor, Force H1 rack) |
| Operating temperature | Charge 0–50 °C · Discharge −10–50 °C |
| Dimensions / weight | Stacked Force H1 set (see manufacturer's diagram) |
| Service life | Thousands of cycles (typical DoD, 25 °C) |
| Warranty | Up to 10 years (according to manufacturer) |
Compatibilities
With FH48074 and FC0500-40S as native components. Integration with HV hybrid inverters via CAN/RS485 (consult the official list for specific models). Accessories: Force H1 base/rack, cabling, and mounting hardware.
The Pylontech Force H1 HV Lithium Battery 14.20kWh 192V with BMS offers additional capacity, safety, and efficiency for projects requiring high performance and reliable communication with the inverter.
