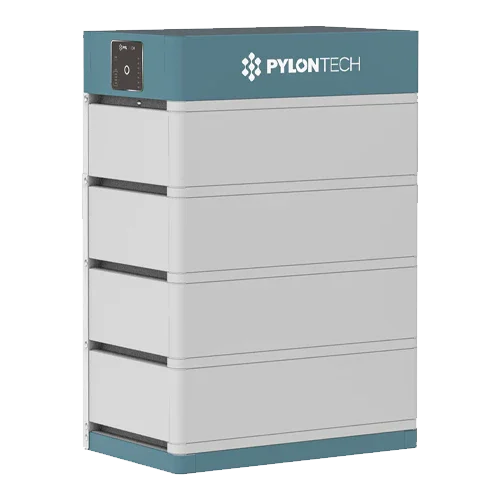

Pylontech Force H1 17.76kWh 240V Lithium Battery with BMS
Modelo: Force H1 17,76kWh 240V- Sku: PYLOBAT017
- Vendor: Pylontech
Specifications
Product Description
The Pylontech Force H1 17.76kWh 240V HV Lithium Battery with BMS is designed for photovoltaic installations that require greater autonomy without sacrificing safety or efficiency. It combines five FH48074 modules (3.55 kWh each) with the BMS FC0500-40S in a high-voltage stack at 240 V. The LiFePO4 (LFP) chemistry provides thermal stability and a long cycle life, while CAN/RS485 communication ensures robust integration with the main HV hybrid inverters on the market.
Main Features
- System energy: 17.76 kWh using 5× FH48074 in series.
- Nominal operating voltage: 240 V (high voltage for HV hybrids).
- LiFePO4 chemistry: high safety, low degradation, and stable performance.
- BMS FC0500-40S included: module balancing, SoC/SoH, and comprehensive protections.
- CAN/RS485 communications with the inverter for control and monitoring.
- Stackable Force H1 rack format: vertical installation, short cabling, and easy expansion.
Advantages or Benefits
- Greater daily autonomy: 17.76 kWh to cover night-time consumption and typical peaks.
- Lower losses: the HV bus reduces current for the same power → optimized cables and sections.
- Active safety: protections against overvoltage/undervoltage, overcurrent, temperature, and short circuit.
- Simple scalability: possibility to expand up to 21.31 or 24.86 kWh in the same rack.
- Interoperability: stable connection with standard HV ecosystems via CAN/RS485.
Purpose or Applications
Perfect for homes with medium–high consumption, SMEs, offices, and three-phase back-up. Suitable for time-of-use arbitrage (charge during off-peak/use during peak), increased self-consumption, peak reduction, and service continuity during grid outages.
Technical Specifications
| System energy | 17.76 kWh (5× 3.55 kWh) |
| Nominal voltage | 240 V (HV) |
| Chemistry | LiFePO4 (LFP) |
| Number of modules | 5× FH48074 in series |
| BMS | FC0500-40S (included) |
| Communication | CAN / RS485 to inverter |
| Protections | OV/UV, OC, temperature, short circuit, balancing |
| Protection rating | IP20 (indoor use) |
| Operating temperature | Charge 0–50 °C · Discharge −10–50 °C |
| Cycle life | High, with typical DoD and 25 °C |
| Dimensions / weight | Stacked Force H1 set (see official drawing) |
| Warranty | Up to 10 years (according to manufacturer) |
Compatibilities
Native compatibility with FH48074 and FC0500-40S. Integration with HV hybrid inverters via CAN/RS485 (see official list by model). Accessories: Force H1 base/rack, wiring kits, and hardware.
The Pylontech Force H1 17.76kWh 240V HV Lithium Battery with BMS combines capacity, safety, and efficiency to take your photovoltaic system to a professional level with intelligent management and high continuous performance.
