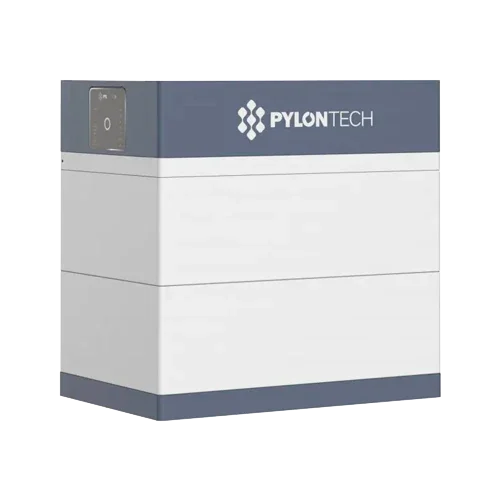

Pylontech Force H3 High Voltage Lithium Battery 10.2kWh 204.8V with BMS
Modelo: Force H3 10,2kWh 204,8V- Sku: PYLOBAT023
- Vendor: Pylontech
Specifications
Product Description
The Pylontech Force H3 10.2kWh 204.8V HV Lithium Battery with BMS is the entry-level configuration of the H3 series. It integrates two FH10050 modules (5.12 kWh each) managed by the BMS FC1000-FH3 to form a 204.8 V stack with LiFePO4 chemistry, 95% DoD, and CAN/RS485/Modbus RTU communications. Its floor-standing IP55 enclosure and guided cabling provide a quick, tidy installation ready for future expansions.
Main Features
- System energy: 10.24 kWh (two FH10050); typical usable ≈9.69 kWh (95% DoD).
- Nominal string voltage: 204.8 V (high voltage).
- Nominal working current: 50 A (short peak 55 A).
- LFP chemistry: thermal safety and long service life (>8000 cycles at 25 °C).
- IP55 floor-standing set with front access and passive thermal management.
- CAN/RS485 communication and Modbus RTU protocol for inverter integration.
Advantages or Benefits
- HV efficiency: lower currents → reduced losses and more compact cables.
- Comprehensive safety: LFP + BMS with electrical and thermal protections.
- Simple expansion: expand to 15.4 / 20.5 / 25.6 / 30.7 / 35.8 kWh by adding modules.
- True interoperability: stable CAN/RS485 link that minimizes alarms.
- Clean installation: floor rack, compact footprint, and minimal maintenance.
Purpose or Applications
Residential self-consumption and SMEs with HV hybrid inverter; basic backup for critical loads, time-of-use arbitrage, and stabilization against micro-outages. Suitable for three-phase systems seeking reliability and efficiency.
Technical Specifications
| Total capacity | 10.24 kWh (2×5.12 kWh) |
| Usable capacity | ≈9.69 kWh (95% DoD) |
| Nominal voltage | 204.8 V (HV) |
| Nominal / peak current | 50 A / 55 A (≤15 min) |
| Chemistry | LiFePO4 (LFP) |
| Modules | 2× FH10050 in series |
| BMS | FC1000-FH3 (included) |
| Parallel | Up to 6 groups |
| Communication | CAN / RS485 / Modbus RTU |
| Protection rating | IP55 (Force H3 set) |
| Thermal range | Charge −10…55 °C · Discharge −20…45 °C |
| Dimensions / weight | ≈540×350×530 mm · ≈92 kg (2-module set) |
| Certifications | CE, UN38.3, IEC62619, IEC63056, UL1973, UL9540A, VDE-AR-E 2510-50 |
Compatibilities
Native compatibility with FH10050 and BMS FC1000-FH3. Integration with HV hybrid inverters via CAN/RS485 (consult official list by model). Accessories: Force H3 rack/base and cabling.
The Pylontech Force H3 10.2kWh 204.8V HV Lithium Battery with BMS offers a safe and efficient HV base to start your storage, with the possibility to expand easily as your needs evolve.
