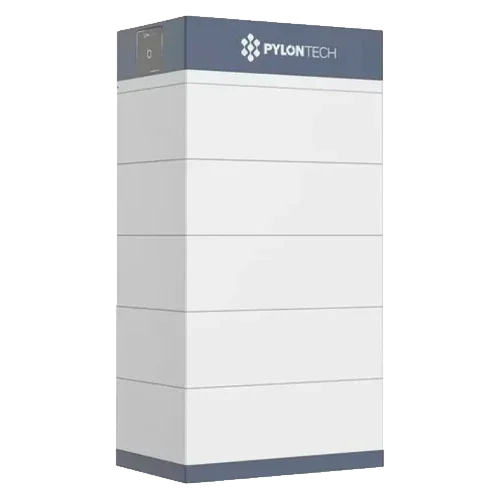

Pylontech Force H3 High Voltage Lithium Battery 25.6kWh 512V with BMS
Modelo: Force H3 25,6kWh 512V- Sku: PYLOBAT026
- Vendor: Pylontech
Specifications
Product Description
The Pylontech Force H3 25.6kWh 512V HV Lithium Battery with BMS is designed for photovoltaic installations that require high daily autonomy, high efficiency, and flawless communication with high-voltage hybrid inverters. This configuration connects five FH10050 modules (5.12 kWh each) in series, managed by the BMS FC1000-FH3, to form a 512 V stack using LiFePO4 (LFP) chemistry. The floor-standing set with IP55 rating, guided cabling, and telemetry via CAN/RS485 (Modbus RTU) ensures quick commissioning, stable operation, and minimal maintenance over thousands of cycles.
Main Features
- System energy: 25.6 kWh (5× FH10050 of 5.12 kWh each).
- Nominal string voltage: 512 V (high voltage HV).
- LiFePO4 chemistry with high thermal safety and low degradation.
- BMS FC1000-FH3 included: cell balancing, SoC/SoH calculation, and comprehensive protections.
- Communications CAN/RS485 and Modbus RTU protocol for professional integration.
- Floor-standing set IP55: robust installation, front access, and modular expansion.
Advantages or Benefits
- High autonomy: 25.6 kWh allows coverage of long nights and intensive consumption.
- HV efficiency: lower current for the same power → less loss and more compact cabling.
- Comprehensive safety: LFP chemistry and BMS protections (OV/UV, OC, temperature, short circuit).
- Predictable operation: reliable telemetry (SoC/SoH) for charge/discharge strategies and time-of-use arbitration.
- Scalability: possibility to expand to 30.7 kWh or 35.8 kWh without redesigning the architecture.
Purpose or Applications
High-consumption homes, businesses, and offices with HV hybrid inverter; three-phase systems requiring backup for critical loads, peak reduction, and increased self-consumption. Also suitable for projects with intensive backup use and microgrids.
Technical Specifications
| System energy | 25.6 kWh (5× 5.12 kWh) |
| Typical usable capacity | ≈95 % DoD |
| Nominal voltage | 512 V (HV) |
| Nominal / peak current | 50 A / 55 A |
| Chemistry | LiFePO4 (LFP) |
| Modules | 5× FH10050 in series |
| BMS | FC1000-FH3 (included) |
| Parallel | Up to 6 groups |
| Communication | CAN / RS485 / Modbus RTU |
| Protection rating | IP55 (Force H3 set) |
| Thermal range | Charge −10…55 °C · Discharge −20…45 °C |
| Life cycles | >8000 (25 °C) |
| Dimensions / weight | Force H3 floor cabinet (≈540×350×530 mm per module) |
| Certifications | CE, UN38.3, IEC62619, IEC63056, UL1973, UL9540A, VDE-AR-E 2510-50 |
Compatibilities
Native compatibility with FH10050 and FC1000-FH3. Integration with HV hybrid inverters via CAN/RS485 (refer to official list by model). Accessories: Force H3 base/frame and interconnection cabling.
The Pylontech Force H3 25.6kWh 512V HV Lithium Battery with BMS offers capacity, LFP safety, and HV efficiency for high-performance projects seeking stability, autonomy, and flawless communication with the inverter.
