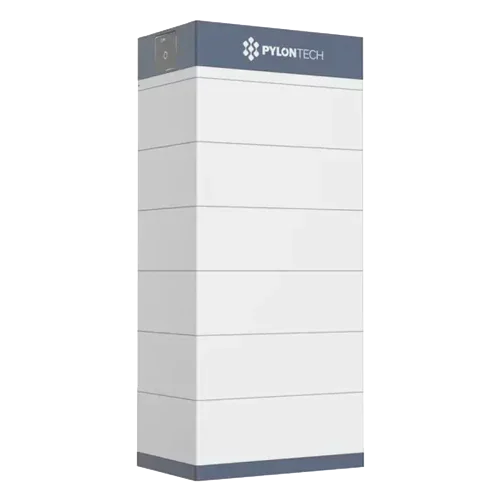

Pylontech Force H3 High Voltage Lithium Battery 30.7kWh 614.4V with BMS
Modelo: Force H3 30,7kWh 614,4V- Sku: PYLOBAT027
- Vendor: Pylontech
Specifications
Product Description
The Pylontech Force H3 30.7kWh 614.4V HV Lithium Battery with BMS is a high-voltage storage solution for installations requiring large capacity and sustained power. With six FH10050 modules (5.12 kWh each) in series and the BMS FC1000-FH3, it forms a 614.4 V stack using LiFePO4 chemistry, with a typical depth of discharge (DoD) of 95% and robust communication via CAN/RS485. Its HV architecture reduces currents to minimize losses in cabling and electronics, while the floor-standing IP55 cabinet and guided wiring simplify installation and maintenance.
Main Features
- System energy: 30.7 kWh (6× FH10050 of 5.12 kWh).
- Nominal voltage: 614.4 V (high voltage for maximum efficiency).
- LFP chemistry: thermal stability, superior safety, and long cycle life.
- BMS FC1000-FH3: active balancing, SoC/SoH, and comprehensive protections.
- Communications CAN/RS485 and Modbus RTU for integration with HV hybrid systems.
- Floor-standing IP55 set, expandable and with front access.
Advantages or Benefits
- Very high autonomy for intensive consumption and long nights without relying on the grid.
- Electrical efficiency: HV bus with low currents → lower losses and better overall performance.
- Comprehensive safety: protections against overvoltage/undervoltage, overcurrent, temperature, and short circuit.
- Intelligent management: clear telemetry (SoC/SoH) for time-of-use arbitration and control of critical loads.
- Scalability: possibility to expand further to 35.8 kWh in the same rack.
Purpose or Applications
High-consumption homes, businesses, and offices with HV hybrid inverter; continuous three-phase backup for essential loads, peak reduction, micro-outage stabilization, and optimization of self-consumption in professional PV installations.
Technical Specifications
| System energy | 30.7 kWh (6× 5.12 kWh) |
| Typical usable capacity | ≈95% DoD |
| Nominal voltage | 614.4 V (HV) |
| Nominal / peak current | 50 A / 55 A |
| Chemistry | LiFePO4 (LFP) |
| Modules | 6× FH10050 in series |
| BMS | FC1000-FH3 (included) |
| Parallel | Up to 6 groups |
| Communication | CAN / RS485 / Modbus RTU |
| Protection rating | IP55 (Force H3 set) |
| Thermal range | Charge −10…55 °C · Discharge −20…45 °C |
| Life cycles | >8000 (25 °C) |
| Dimensions / weight | Force H3 floor cabinet (≈540×350×530 mm per module) |
| Certifications | CE, UN38.3, IEC62619, IEC63056, UL1973, UL9540A, VDE-AR-E 2510-50 |
Compatibilities
Native compatibility with FH10050 and FC1000-FH3. Integration with HV hybrid inverters via CAN/RS485 (refer to official list by model). Accessories: Force H3 base/rack and wiring kits.
The Pylontech Force H3 30.7kWh 614.4V HV Lithium Battery with BMS combines large capacity, LFP safety, and HV efficiency to ensure reliable, scalable, and professional storage in demanding photovoltaic installations.
