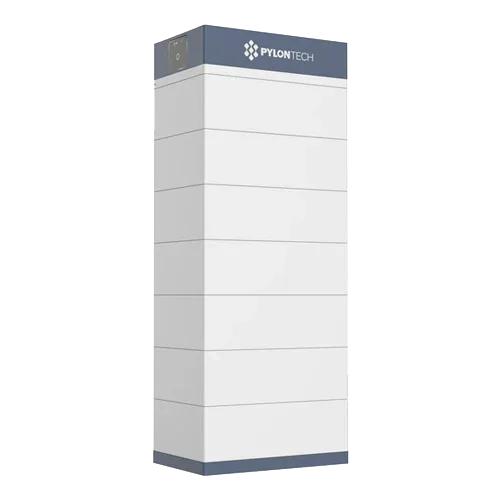

Pylontech Force H3 High Voltage Lithium Battery 35.8kWh 716.8V with BMS
Modelo: Force H3 35,8kWh 716,8V- Sku: PYLOBAT028
- Vendor: Pylontech
Specifications
Product Description
The Pylontech Force H3 35.8kWh 716.8V HV Lithium Battery with BMS is the highest capacity configuration in the Force H3 series. It integrates seven FH10050 modules (5.12 kWh each) connected in series and managed by the BMS FC1000-FH3 to form a high-voltage stack at 716.8 V. Its LiFePO4 (LFP) chemistry, IP55 protection rating, and professional CAN/RS485 (Modbus RTU) communication ensure safety, reliability, and seamless integration with HV hybrid inverters in advanced residential and commercial installations.
Main Features
- Total energy: 35.84–35.8 kWh with 7 FH10050 modules in series.
- System nominal voltage: 716.8 V (high voltage for maximum efficiency).
- LiFePO4 chemistry: thermal stability, low degradation, and thousands of cycles.
- BMS FC1000-FH3: balancing, precise SoC/SoH calculation, and comprehensive protections.
- Floor-mounted set IP55, front access, and guided cabling for quick installation.
- Communication CAN/RS485 with Modbus RTU protocol for control and monitoring.
Advantages or Benefits
- Outstanding autonomy: 35.8 kWh to cover long nights, weekends, or continuous critical loads.
- Superior electrical performance: the HV bus reduces currents → less loss and better inverter utilization.
- Comprehensive safety: LFP chemistry and BMS with protections against overvoltage/undervoltage, overcurrent, temperature, and short circuit.
- Predictable operation: reliable telemetry (SoC/SoH) that facilitates charge/discharge strategies and time-of-use arbitrage.
- Scalability and order: modular architecture in a floor cabinet; allows parallel groups to increase energy and power.
Purpose or Applications
Designed for high-consumption homes, businesses, offices, and small industries with HV hybrid inverters requiring three-phase backup, peak demand reduction, increased self-consumption, and service continuity during micro-outages. It is ideal when seeking the maximum capacity of the Force H3 family without compromising safety and efficiency.
Technical Specifications
| System energy | 35.84–35.8 kWh (7× 5.12 kWh) |
| Typical usable capacity | ≈95 % DoD (managed by BMS) |
| Nominal voltage | 716.8 V (HV) |
| Nominal / peak current | 50 A / 55 A |
| Chemistry | LiFePO4 (LFP) |
| Modules | 7× FH10050 in series |
| BMS | FC1000-FH3 (included) |
| Parallel | Up to 6 groups in parallel |
| Communication | CAN / RS485 (Modbus RTU) to inverter |
| Protections | OV/UV, OC, temperature, short circuit, cell balancing |
| Protection rating | IP55 (Force H3 set, protected indoor use) |
| Thermal range | Charge −10…55 °C · Discharge −20…45 °C |
| Life cycles | >8000 (25 °C, typical profile) |
| Dimensions / weight | Approximately 540×350×530 mm per module · ≈92 kg per module |
| Certifications | CE, UN38.3, IEC62619, IEC63056, UL1973, UL9540A, VDE-AR-E 2510-50 |
Compatibilities
Native compatibility with FH10050 modules and BMS FC1000-FH3. Integration with HV hybrid inverters via CAN/RS485 (consult the official compatibility list by manufacturer and model). Related accessories: Force H3 rack/base and interconnection cabling.
The Pylontech Force H3 35.8kWh 716.8V HV Lithium Battery with BMS is the most capable HV solution in its range: maximum autonomy, LFP safety, and intelligent management for high-performance photovoltaic projects.
