Pylontech H2-96/192V 7.10kWh High Voltage Lithium Battery with BMS
Modelo: H2-96/192V 7,10kWh- Sku: PYLOBAT020
- Vendor: Pylontech
Specifications
Product Description

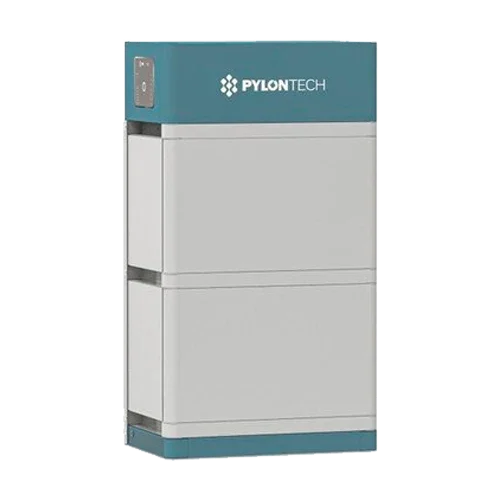

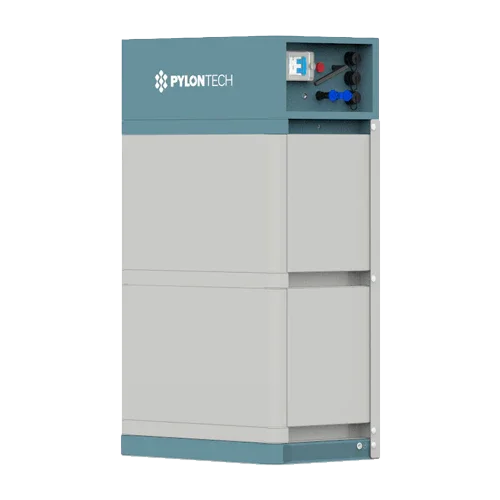

The Pylontech H2-96/192V 7.10 kWh HV Lithium Battery with BMS is the entry-level configuration of the Force H2 range: two FH9637M modules (3.55 kWh each) managed by the BMS FC0500M-40S to form a high-voltage system at 192 V. Designed for efficient self-consumption and basic backup, it combines LiFePO4 safety, stable communication with the inverter, and a robust floor-standing format with IP55 protection rating.
Main Features
- System energy: 7.10 kWh (2× 3.55 kWh).
- Nominal voltage: 192 V (high voltage H2-96/192V).
- LiFePO4 chemistry with high safety and thousands of cycles.
- BMS FC0500M-40S included: balancing, SoC/SoH, and comprehensive protections.
- Communications CAN/RS485 with HV hybrid inverters.
- Enclosure and floor assembly IP55, clean and expandable installation.
Advantages or Benefits
- Efficiency: HV bus with low currents → less loss and contained cabling.
- Safety: LFP + BMS with protection for voltage, current, temperature, and short circuit.
- Scalability: expands to 10.65 kWh (288 V) or 14.20 kWh (384 V) by adding modules.
- Easy integration: stable CAN/RS485 communication to avoid alarms and interruptions.
- Professional format: floor-standing cabinet, front access, and minimal maintenance.
Purpose or Applications
Residential and SMEs with HV hybrid inverter requiring essential backup, increased self-consumption, and time-of-use arbitrage. Suitable for three-phase systems prioritizing efficiency and reliability.
Technical Specifications
| System energy | 7.10 kWh (2× 3.55 kWh) |
| Nominal voltage | 192 V (H2-96/192V) |
| Chemistry | LiFePO4 (LFP) |
| Modules | 2× FH9637M in series |
| BMS | FC0500M-40S (included) |
| Communication | CAN / RS485 to inverter |
| Protections | OV/UV, OC, temperature, short circuit, balancing |
| Protection rating | IP55 (Force H2 assembly) |
| Operating temperature | Charge 0–50 °C · Discharge −10–50 °C |
| Life cycles | ≥6000 (typical DoD, 25 °C) |
| Dimensions / weight | Force H2 floor cabinet/rack (see official drawing) |
| Warranty | Up to 10 years (according to manufacturer) |
Compatibilities
Direct compatibility with FH9637M modules and BMS FC0500M-40S. Integration with HV hybrid inverters via CAN/RS485 (see official list by model). Accessories: Force H2 structure/base and interconnection cabling.
The Pylontech H2-96/192V 7.10 kWh HV Lithium Battery with BMS offers a solid entry into HV storage: safe, efficient, and ready to grow as your energy needs evolve.
