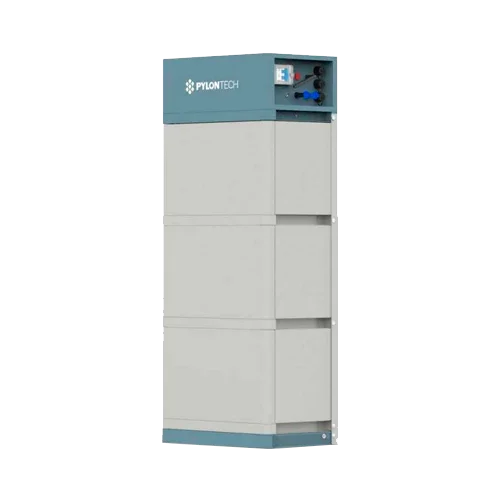

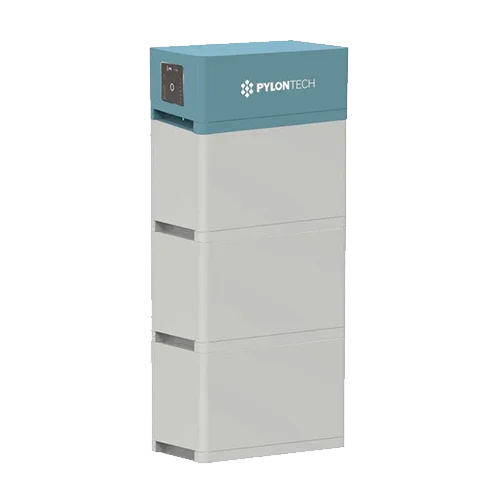

Pylontech H2-96/288V 10.65kWh High Voltage Lithium Battery with BMS
Modelo: H2-96/288V 10,65kWh- Sku: PYLOBAT021
- Vendor: Pylontech
Specifications
Product Description
The Pylontech H2-96/288V 10.65kWh HV Lithium Battery with BMS is designed for photovoltaic systems that require greater autonomy and seamless integration with high-voltage hybrid inverters. This configuration groups three FH9637M modules (3.55 kWh each) under the control of the BMS FC0500M-40S, forming a 288 V LiFePO4 (LFP) string with long cycle life, high safety, and superior electrical efficiency. The Force H2 set offers robust floor mounting with IP55 protection rating and stable CAN/RS485 communication to the inverter for SoC/SoH telemetry and alarms.
Main Features
- System energy: 10.65 kWh (3× FH9637M of 3.55 kWh each).
- Nominal string voltage: 288 V (high voltage HV).
- LiFePO4 chemistry: thermal safety and thousands of cycles with low degradation.
- BMS FC0500M-40S: balancing, comprehensive protections, and SoC/SoH calculation.
- CAN/RS485 communications with compatible HV hybrid inverters.
- IP55 floor set: clean and expandable installation in the Force H2 cabinet.
Advantages or Benefits
- Greater daily autonomy: 10.65 kWh to cover typical nighttime consumption.
- High efficiency: the HV bus reduces currents → lower losses and more compact cabling.
- Active safety: LFP and BMS with protection against overvoltage, undervoltage, overcurrent, and temperature.
- Scalability: possibility to expand to 14.20 kWh (384 V) by adding one more module.
- Interoperability: stable CAN/RS485 link that minimizes alarms and shutdowns.
Purpose or Applications
Residential self-consumption and SMEs with HV hybrid inverter, backup of critical loads, time-of-use arbitrage (charging during off-peak and using during peak), and reduction of demand peaks. Ideal for three-phase systems seeking reliability and consistent performance.
Technical Specifications
| System energy | 10.65 kWh (3× 3.55 kWh) |
| Nominal voltage | 288 V (HV) |
| Chemistry | LiFePO4 (LFP) |
| Modules | 3× FH9637M in series |
| BMS | FC0500M-40S (included) |
| Communication | CAN / RS485 to inverter |
| Protections | OV/UV, OC, temperature, short circuit, cell balancing |
| Protection rating | IP55 (Force H2 set) |
| Cycle life | ≥6000 (typical DoD, 25 °C) |
| Operating temperature | Charge 0–50 °C · Discharge −10–50 °C |
| Installation | Force H2 floor cabinet/rack |
Compatibilities
Direct compatibility with FH9637M and FC0500M-40S. Integration with HV hybrid inverters via CAN/RS485 (see official list by model). Accessories: Force H2 structure/base and dedicated cabling.
The Pylontech H2-96/288V 10.65kWh HV Lithium Battery with BMS combines capacity, safety, and efficiency to take your storage to a professional level with intelligent management and reliable operation.
