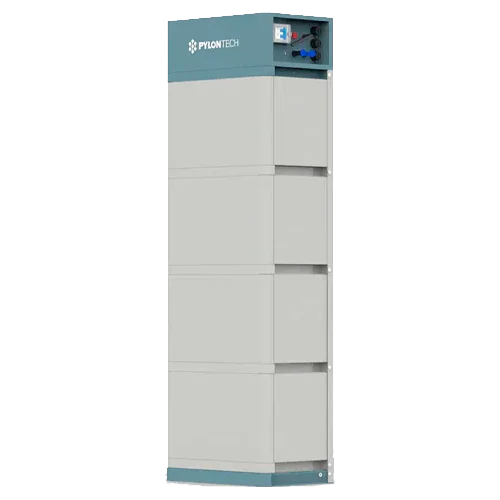

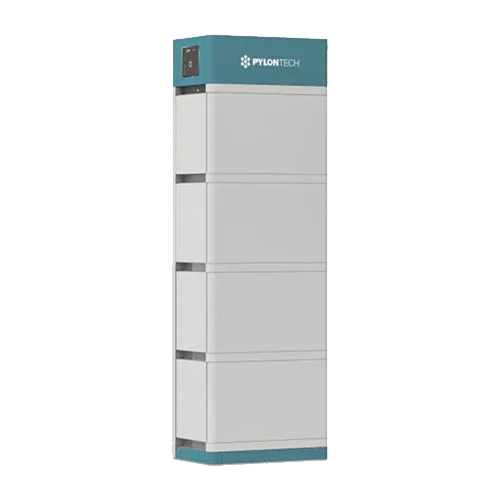

Pylontech H2-96/384V 14.20kWh High Voltage Lithium Battery with BMS
Modelo: H2-96/384V 14,20kWh- Sku: PYLOBAT022
- Vendor: Pylontech
Specifications
Product Description
The Pylontech H2-96/384V 14.20kWh HV Lithium Battery with BMS is the top configuration of the Force H2 series: four FH9637M modules of 3.55 kWh in series under the BMS FC0500M-40S, forming a 384 V system designed for demanding residential projects and small commercial installations. Its LiFePO4 chemistry offers thermal stability and thousands of cycles, while the IP55 floor set and CAN/RS485 communication ensure professional integration with HV hybrid inverters, with reliable SoC/SoH telemetry and comprehensive protections.
Main Features
- System capacity: 14.20 kWh (4× FH9637M).
- Nominal voltage: 384 V (high voltage for maximum efficiency).
- LFP chemistry: superior safety and low degradation.
- BMS FC0500M-40S: balancing and protection against OV/UV, OC, temperature, and short circuit.
- CAN/RS485 communications for stable integration with the inverter.
- IP55 floor set (Force H2): robust installation with minimal maintenance.
Advantages or Benefits
- High autonomy: 14.20 kWh to cover long nights and high consumption.
- Electrical efficiency: lower current in HV → less loss and better overall performance.
- Comprehensive safety: LFP + BMS with reliable telemetry and alarms.
- Interoperability: stable link via CAN/RS485 with standard HV ecosystems.
- Scalability and order: modular architecture in a floor cabinet, expandable and compact.
Purpose or Applications
High-consumption homes, businesses, and offices with HV hybrid inverter; three-phase backup for critical loads, time-of-use arbitrage, and peak demand reduction. Ideal when constant performance and robust communication with the inverter are required.
Technical Specifications
| System energy | 14.20 kWh (4× 3.55 kWh) |
| Nominal voltage | 384 V (HV) |
| Chemistry | LiFePO4 (LFP) |
| Modules | 4× FH9637M in series |
| BMS | FC0500M-40S (included) |
| Communication | CAN / RS485 to inverter |
| Protections | OV/UV, OC, temperature, short circuit, balancing |
| Protection rating | IP55 (Force H2 set) |
| Life cycles | ≥6000 (typical DoD, 25 °C) |
| Operating temperature | Charge 0–50 °C · Discharge −10–50 °C |
| Installation | Force H2 floor cabinet/rack |
Compatibilities
Native compatibility with FH9637M modules and BMS FC0500M-40S. Integration with HV hybrid inverters via CAN/RS485 (see official list by model). Accessories: Force H2 structure/base and interconnection cabling.
The Pylontech H2-96/384V 14.20kWh HV Lithium Battery with BMS is a high-performance, safe, and professional HV platform to maximize your photovoltaic installation with reliable, long-lasting storage.
