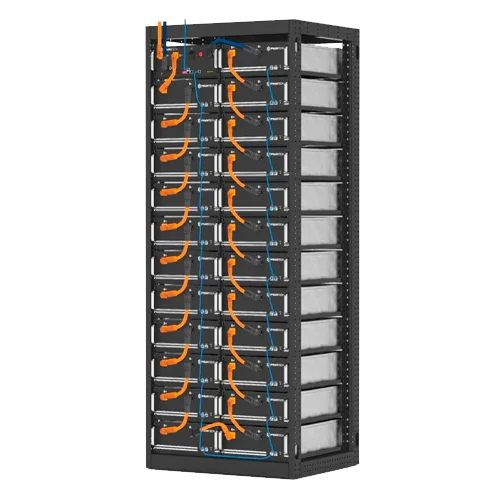

Pylontech PowerCube M1 HV Lithium Battery 108.93kWh 736V with BMS + Rack + 23 Modules
Modelo: PowerCube M1 108,93kWh 736V- Sku: PYLOBAT038
- Vendor: Pylontech
Specifications
Product Description
The Pylontech PowerCube M1 HV Lithium Battery 108.93 kWh 736V with BMS + Rack + 23 Modules is a commercial and industrial storage solution ready to deploy. The system combines 23 H32148 modules of 4.74 kWh each (LiFePO4 chemistry) in an M1 rack with SC1000-200E controller/BMS, reaching 108.93 kWh at a nominal 736 V. Its high-voltage architecture reduces currents and losses, while industrial CAN/RS485 communication ensures seamless integration with EMS/SCADA and high-performance inverters.
Main Features
- Total system capacity: 108.93 kWh at 736 V (23× H32148).
- SC1000-200E BMS/Controller with telemetry, alarms, and cell management.
- System efficiency 96 % and DoD 80 % (10–90 %).
- Nominal charge current 74 A (max. 148 A) for demanding operations.
- Indoor rack design IP20 with front maintenance and quick module replacement.
Advantages or Benefits
- Safety and reliability: LFP chemistry, advanced BMS protections, and service life >10 years (≈4000 cycles).
- True scalability: modular architecture allowing stepwise adjustment of capacity and power.
- Energy efficiency: high voltage → lower currents, less heating, and better overall performance.
- Professional integration: CAN/RS485 interfaces for EMS/SCADA, history, and remote control.
- Optimized ownership cost: simple maintenance, front access, and quick module replacement.
Purpose or Applications
Designed for C&I: energy shifting, peak shaving, microgrid support, grid stabilization, and backup for critical processes in factories, logistics centers, commercial buildings, hospitals, or data centers.
Technical Specifications
| Architecture | PowerCube M1 (rack + BMS + 23 H32148 modules) |
| Total energy | 108.93 kWh |
| Nominal voltage | 736 Vdc |
| Chemistry | LiFePO4 (LFP) |
| Depth of discharge | 80 % (10–90 %) |
| Efficiency | 96 % |
| Charge current (nom./max.) | 74 A / 148 A |
| Minimum discharge voltage | ≈690 Vdc |
| Protection rating | IP20 (indoor use) |
| Rack dimensions | ≈815×659×2130 mm (W×D×H) |
| Approximate weight | ≈1,250 kg |
| Service life / cycles | >10 years / ≈4000 cycles |
| Operating temperature | 10–40 °C (storage −20–60 °C) |
| Communications | CAN / RS485 (EMS/SCADA and inverter integration) |
| Certifications | TÜV, CE |
Compatibilities
Direct compatibility with H32148 modules and SC1000-200E controller from the PowerCube M1 series. Related accessories: M1 rack/frame (e.g., RK2130-M1), wiring harnesses, and gateways for EMS/SCADA.
The Pylontech PowerCube M1 HV Lithium Battery 108.93 kWh 736V with BMS + Rack + 23 Modules provides industrial HV storage ready to operate, with LFP safety, 96 % efficiency, and professional integration for the most demanding C&I projects.
