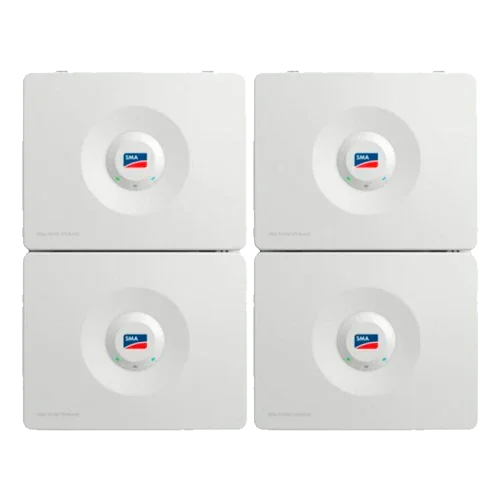

Lithium Battery HV SMA 13.1kWh 4xHS-BM-3.28-10 Home Storage
Modelo: 4xHS-BM-3.28-10- Sku: SMAACCE022
- Vendor: SMA
Specifications
Product Description
The HV Lithium Battery SMA 13.1kWh 4xHS-BM-3.28-10 Home Storage combines four 3.28 kWh modules to provide 13.12 kWh of usable high-voltage capacity, with the robustness and safety of LiFePO4 chemistry. Designed for homes seeking high autonomy, consistent performance, and full compatibility with the SMA ecosystem, this IP65 solution can be wall-mounted or installed on a base and integrates with the SMA Home Energy platform for advanced management and monitoring.
Main Features
- Usable capacity: 13.12 kWh (4 × HS-BM-3.28-10) with a lifespan of up to 8,000 cycles.
- Nominal voltage 384 V (operating range 360–432 V) and 36 A charge/discharge.
- IP65 protection, low self-consumption (≈2 W per module), and high efficiency (94.5%).

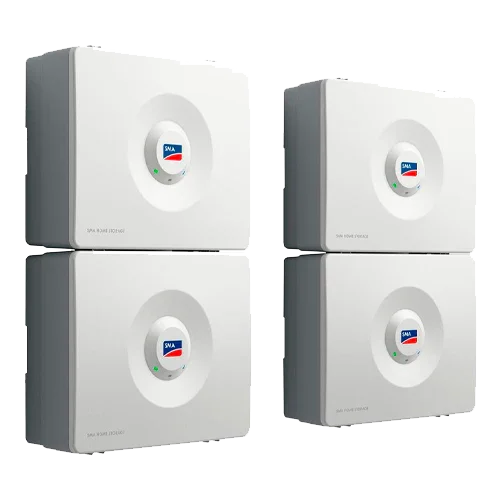

- System dimensions: 2 × (610 × 969 × 214.6 mm); approx. weight: 152 kg.
- Standardized connections: DC MC4 and RJ45 communication (SMA battery interface).
- Modular and stackable architecture to expand up to 16.4 kWh without changing the system.
Advantages or Benefits
- Large HV capacity to maximize self-consumption, reduce grid purchases, and provide backup.
- Native integration with SMA hybrid inverters and their portal/app for intelligent control.
- LiFePO4 chemistry: intrinsic safety, temperature stability, and long lifespan.
- Quick “plug & play” installation with MC4 connections and preconfigured wiring.
- IP65 design suitable for indoor/outdoor use, saving space and simplifying maintenance.
Purpose or Applications
Ideal for homes with high daytime/nighttime consumption, critical loads, and the need for reliable back-up. Also suitable for small businesses already using SMA inverters and requiring an efficient, silent, and scalable HV battery bank.
Technical Specifications
| Usable capacity | 13.12 kWh |
| Nominal voltage / range | 384 V / 360–432 V |
| Max. charge/discharge current | 36 A |
| Chemistry | LiFePO4 |
| Efficiency | 94.5% |
| Protection | IP65 |
| Operating temperature | Discharge −10…+50 °C / Charge 0…+50 °C |
| Self-consumption | ≈2 W per module |
| Dimensions (W×H×D) | 2 × (610 × 969 × 214.6 mm) |
| Approx. weight | 152 kg |
| Connections | DC MC4 · RJ45 communication |
| Certifications | CE, UN 38.3, IEC 62619, IEC 62477, VDE 2510-50 |
| Warranty | 10 years (registration required) |
Compatibilities
Direct compatibility with SMA hybrid inverters SB-SE (SMA Home Storage from 3.2 to 13.1 kWh) and STP-SE (from 6.5 to 16.4 kWh). Recommended accessories: floor base HS-BU-10 and communication cable HS-COM-CBL-3-10.
The HV Lithium Battery SMA 13.1kWh 4xHS-BM-3.28-10 Home Storage is a professional, safe, and efficient HV solution that maximizes the autonomy of your photovoltaic installation and prepares you for reliable residential back-up.
