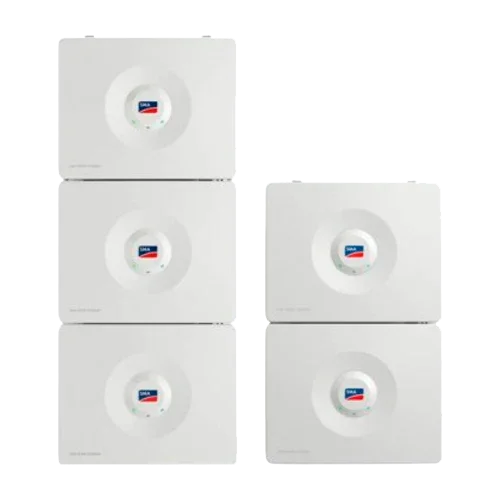

Lithium Battery HV SMA 16.4kWh 5xHS-BM-3.28-10 Home Storage

Modelo: 5xHS-BM-3.28-10

Sku: SMAACCE023
Vendor: SMA

€8.995,63 EUR

€7.646,28 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

SMA HV Lithium Battery 16.4kWh 5xHS-BM-3.28-10 Home Storage with LiFePO4 cells, nominal voltage 480 V, IP65 and up to 8000 cycles. Stackable modular system, 36 A and 94.5% efficiency for self-consumption and backup with SMA inverters.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

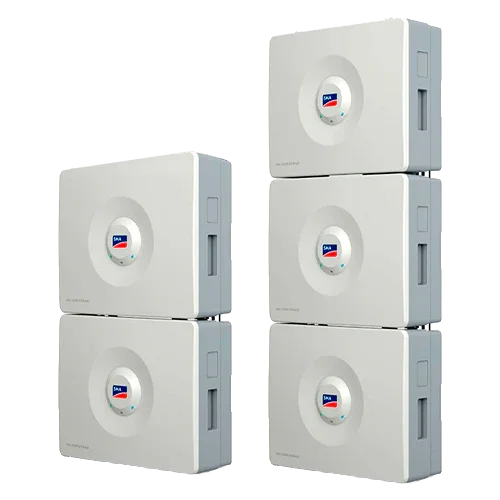

The HV Lithium Battery SMA 16.4kWh 5xHS-BM-3.28-10 Home Storage is the highest capacity configuration in SMA's home range: five HV modules of 3.28 kWh (LiFePO4) totaling 16.4 kWh usable, with native integration into SMA hybrid inverters. Its high-voltage architecture reduces losses, achieves an efficiency of 94.5%, and, thanks to its IP65 protection, can be installed indoors or outdoors with “plug & play” assembly via MC4 and RJ45.

Main Features

Usable system capacity: 16.4 kWh (5 × HS-BM-3.28-10) with up to 8000 cycles.
Nominal voltage 480 V (operating range 450–540 V) and 36 A charge/discharge.
Safe LiFePO4 chemistry with low self-consumption (≈2 W per module).
IP65 protection rating and stackable modular format for wall or base installation.
Battery efficiency: 94.5%; full integration into SMA Home Energy.
Standardized connections: DC MC4 and RJ45 communication.

Advantages or Benefits

Maximum autonomy for demanding homes and small businesses with SMA inverters.
Stable and safe response thanks to LiFePO4 and HV topology.
Quick, tidy, and scalable installation within the same SMA ecosystem.
Reliable backup in case of grid outages when combined with SMA hybrid inverter with backup function.
Low maintenance and centralized monitoring on the SMA platform.

Purpose or Applications

Ideal for high-consumption residential installations (electric vehicle, air conditioning, pumps, etc.) and for businesses seeking to maximize self-consumption, reduce power peaks, and have backup energy with SMA hybrid inverters.

Technical Specifications

Usable capacity	16.4 kWh
Nominal voltage / range	480 V / 450–540 V
Max. charge/discharge current	36 A
Chemistry	LiFePO4
Efficiency	94.5 %
Protection	IP65
Operating temperature	Discharge −10…+50 °C · Charge 0…+50 °C
Self-consumption	≈2 W per module
Dimensions (W×H×D)	≈610 × 2415 × 214.6 mm (5 modules stacked)
Approx. weight	≈190 kg (5 × 38 kg)
Connections	DC MC4 · RJ45 communication
Certifications	CE, UN 38.3, IEC 62619, IEC 62477, VDE 2510-50
Warranty	10 years (registration required)

Compatibilities

Direct compatibility with SMA hybrid inverters of the STP-SE series (ranges from 6.5 to 16.4 kWh). Recommended accessories: floor base HS-BU-10 and communication cable HS-COM-CBL-3-10. For expansions or replacements, add identical HS-BM-3.28-10 modules.

The HV Lithium Battery SMA 16.4kWh 5xHS-BM-3.28-10 Home Storage offers the largest HV storage in the SMA range for intelligent, efficient, and robust backup self-consumption.
