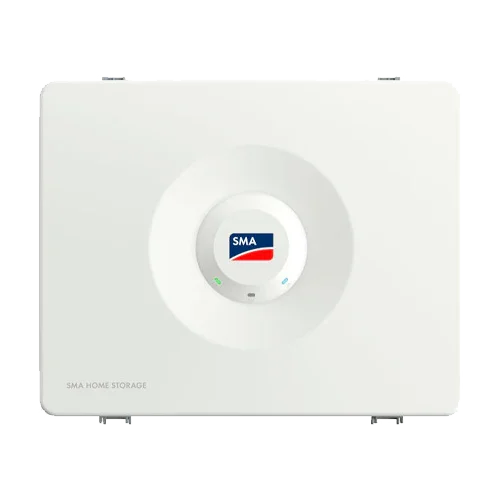

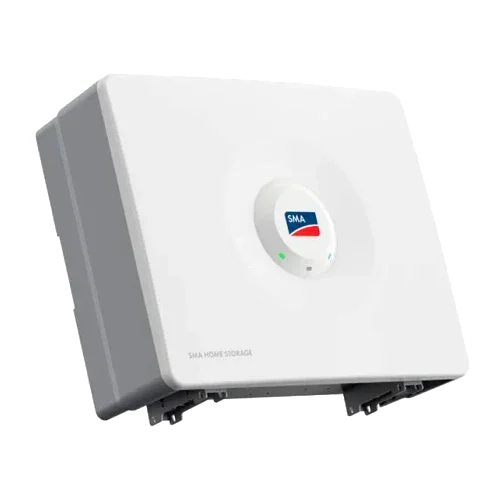

Lithium Battery HV SMA 3.2kWh HS-BM-3.28-10 Home Storage
Modelo: HS-BM-3.28-10- Sku: SMAACCE019
- Vendor: SMA
Specifications
Product Description
The HV Lithium Battery SMA 3.2kWh HS-BM-3.28-10 Home Storage is the high-voltage (HV) base block of SMA's home solution. With safe and durable LiFePO4 technology, IP65 for indoor/outdoor use, and a stackable modular design, this battery integrates seamlessly with SMA hybrid inverters for self-consumption and backup power. Its nominal voltage of 96 V and an efficiency of 94.5% allow energy management with maximum reliability and minimal loss.
Main Features
- Usable capacity: 3.28 kWh (LiFePO4) with up to 8,000 cycles.
- Nominal voltage: 96 V; operating range: 90–108 V.
- Max. charge/discharge current: 36 A (high daily performance).
- IP65 protection rating for wall or floor installation.
- Battery efficiency: 94.5% and low self-consumption (≈2 W per module).
- RJ45 communication, MC4 DC connection, and “plug & play”.
Advantages or Benefits
- Greater safety and lifespan thanks to LiFePO4 chemistry and HV design.
- True scalability: expand from 3.2 to 16.4 kWh by adding HS-BM-3.28-10 modules.
- Full integration into SMA's Home Energy Solution for monitoring and control.
- Worry-free outdoor use (IP65) and compact, space-saving format.
- Reliable backup during grid outages when used with SMA hybrid inverter and back-up.
Purpose or Applications
Especially suitable for homes with photovoltaic self-consumption seeking efficient HV storage, domestic backup support, and future expansion without changing the system. Also useful in small offices or businesses with SMA hybrid inverters.
Technical Specifications
| Usable capacity | 3.28 kWh |
| Nominal voltage | 96 V |
| Voltage range | 90–108 V |
| Max. charge/discharge current | 36 A |
| Efficiency | 94.5% |
| Chemistry | LiFePO4 |
| Protection | IP65 |
| Temperature | Discharge −10…+50 °C / Charge 0…+50 °C |
| Self-consumption | ≈2 W per module |
| Dimensions (W×H×D) | 610×483×214.6 mm |
| Approx. weight | 38 kg |
| Connections | MC4 DC · RJ45 communication |
| Certifications | CE, UN 38.3, IEC 62619, IEC 62477, VDE 2510-50 |
| Warranty | 10 years (registration required) |
Compatibilities
Direct compatibility with SMA hybrid inverters: SB-SE models (for 3.2 to 13.1 kWh). Accessories: floor base HS-BU-10 and communication cable HS-COM-CBL-3-10. When scaling above 6.5 kWh, it is also compatible with STP-SE.
The HV Lithium Battery SMA 3.2kWh HS-BM-3.28-10 Home Storage combines safety, efficiency, and scalability for professional HV photovoltaic storage, ready for self-consumption and back-up.
