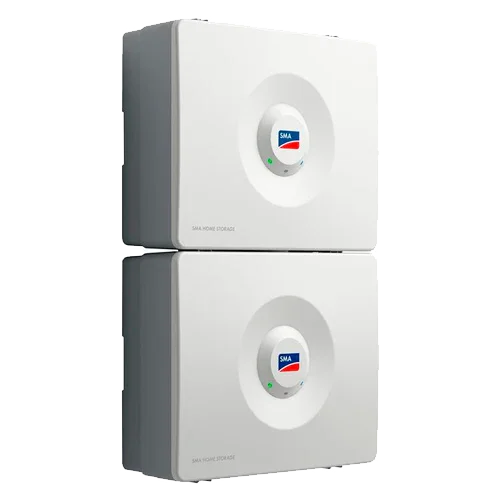

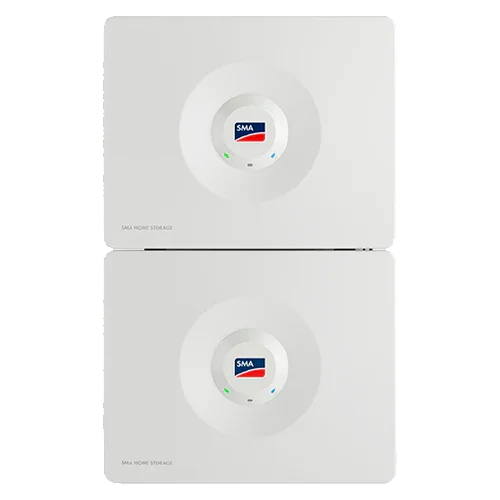

Lithium Battery HV SMA 6.5kWh 2xHS-BM-3.28-10 Home Storage
Modelo: 2xHS-BM-3.28-10- Sku: SMAACCE020
- Vendor: SMA
Specifications
Product Description
The HV Lithium Battery SMA 6.5kWh 2xHS-BM-3.28-10 Home Storage combines two 3.28 kWh HV modules into a robust, scalable system with a usable capacity of 6.56 kWh. Its LiFePO4 chemistry, IP65 protection rating, and SMA-optimized electronics ensure safety, 94.5% efficiency, and seamless integration with SMA hybrid inverters for self-consumption and backup power.
Main Features
- Usable capacity: 6.56 kWh (2× HS-BM-3.28-10) with up to 8,000 cycles.
- Nominal voltage: 192 V; operating range: 180–216 V.
- Max. charge/discharge current: 36 A for intensive daily use.
- Stackable “plug & play” format; wall or base installation.
- IP65 protection and low self-consumption (≈2 W per module).
- RJ45 communication and MC4 DC connection for quick assembly.
Advantages or Benefits
- High voltage (HV) reduces losses and improves system performance.
- Simple scalability up to 16.4 kWh by adding more identical modules.
- Full compatibility with the SMA management platform and its backup functions.
- Clean, modular installation ready for outdoor use.
- Long service life and 10-year warranty with product registration.
Purpose or Applications
Perfect for homes with photovoltaic self-consumption that require greater daily autonomy, backup against brief outages, and the possibility to expand in the future without changing ecosystem. Also suitable for small businesses with SMA hybrid inverters.
Technical Specifications
| Usable capacity | 6.56 kWh |
| Nominal voltage | 192 V |
| Voltage range | 180–216 V |
| Max. charge/discharge current | 36 A |
| Efficiency | 94.5 % |
| Chemistry | LiFePO4 |
| Protection | IP65 |
| Temperature | Discharge −10…+50 °C / Charge 0…+50 °C |
| Self-consumption | ≈2 W per module |
| Dimensions (W×H×D) | 610×969×214.6 mm |
| Approx. weight | 76 kg |
| Connections | MC4 DC · RJ45 communication |
| Certifications | CE, UN 38.3, IEC 62619, IEC 62477, VDE 2510-50 |
| Warranty | 10 years (registration required) |
Compatibilities
Direct compatibility with SMA hybrid inverters STP-SE (for 6.5 to 16.4 kWh). Also compatible with SB-SE when operating within the supported range. Recommended accessories: floor base HS-BU-10 and communication cable HS-COM-CBL-3-10.
The HV Lithium Battery SMA 6.5kWh 2xHS-BM-3.28-10 Home Storage offers efficient, safe, and expandable HV storage, ready to integrate with SMA and optimize your self-consumption with reliable backup.
