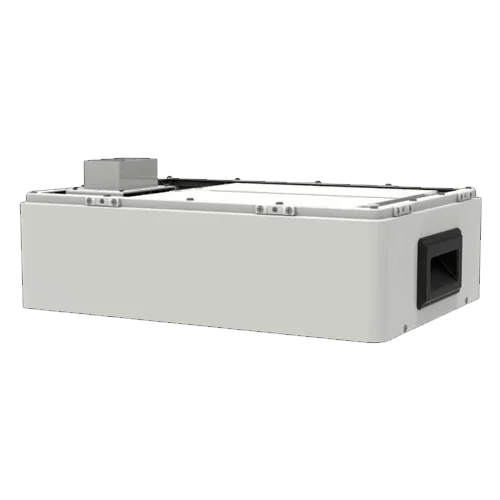

Lithium Battery Module 3.6 kWh HV Solax T-BAT-SYS-HV-S3.6
Modelo: T-BAT-SYS-HV-S3.6- Sku: SOLXBAT006
- Vendor: Solax
Specifications
Product Description
The 3.6 kWh HV Lithium Battery Module Solax T-BAT-SYS-HV-S3.6 (TP-HS3.6) is the high-voltage energy block of the SolaX T-BAT HS family. Its cobalt-free LFP (LiFePO₄) chemistry, IP65 enclosure for indoor/outdoor use, and intelligent management with dedicated BMS make it a robust, safe, and scalable option for residential self-consumption and small commercial installations. The system allows expansion with stackable modules, remote diagnostics and updates via the inverter, and is prepared for cold climates thanks to its integrated heating function.
Main Features
- Energy per module: 3.6 kWh nominal (LFP) with more than 6,000 cycles at 90% DoD.
- Stackable HV architecture: from 2 to 13 modules per tower (7.3–47.9 kWh nominal).
- Tower voltage range: 90–116 V (2 modules) up to 315–406 V (12 modules) and 358.4–665.6 V nominal with 13 modules.
- Recommended continuous current 35 A and maximum 50 A (charge and discharge).
- Protection IP65, soft start, and RS485/CAN communications.
- Module dimensions: 510 × 365 × 152 mm; weight 33.5 kg.
Advantages or Benefits
- Superior safety: LiFePO₄ cells with thermal management and multi-layer electronic protection.
- True scalability: phased growth without rewiring; clean and quick stacking by a single person.
- Consistent performance: active balancing, accurate SOC/SOH reading, and soft-start that protects inverter and battery.
- Operation in cold climates: active heating enables charge/discharge down to −30 °C.
- Native integration: direct RS485/CAN communication with SolaX HV inverters to optimize self-consumption, backup, and tariffs.
Purpose or Applications
Designed for self-consumption with storage, management of off-peak/peak tariffs, backup during outages, and microgrids with SolaX HV inverters. Ideal for homes, SMEs, and technical rooms; the IP65 enclosure allows for protected indoor or outdoor installation.
Technical Specifications
| Module model | TP-HS3.6 (part of the T-BAT-SYS-HV-S3.6 system) |
| Energy per module | 3.6 kWh nominal |
| Usable energy (tower @90% DoD) | From 6.5 kWh (2 modules) up to 43.1 kWh (13 modules) |
| Chemistry | Li-ion (LiFePO₄) |
| No. of modules per tower | 2–13 (7.3–47.9 kWh nominal) |
| Nominal tower voltage | 102.4 V (2 modules) … 358.4 V (12 modules) … 665.6 V (13 modules) |
| Operating voltage range | 90–116 V (2 modules) … 315–406 V (12 modules) |
| Recommended / max. current | 35 A / 50 A (charge and discharge) | Nominal / max. power (depending on modules) | 3.5–12.5 kW / 5.1–23.2 kW |
| Protection | IP65 |
| Communications | RS485, CAN |
| Operating temperature | Without heating: charge 0…53 °C / discharge −20…53 °C; with heating: −30…53 °C |
| Humidity / Altitude | 5–95% RH (non-condensing) / < 3000 m |
| Module dimensions | 510 × 365 × 152 mm |
| Module weight | 33.5 kg |
| System BMS | TBMS-MCS0800 (510 × 365 × 157 mm; 10 kg) |
| Series Box | 510 × 365 × 152 mm; 8.8 kg |
| Installation | Stackable floor (base) support |
| Certifications | IEC 62619, IEC 60730, IEC 62040, CE, UN38.3 |
Compatibilities
Direct compatibility with SolaX HV inverters (Hybrid/IES family, single-phase and three-phase). Ecosystem elements: BMS TBMS-MCS0800, Series Box, floor base, and SolaX cable sets. In the same tower, combine exclusively TP-HS3.6 modules with the indicated BMS.
The 3.6 kWh HV Lithium Battery Module Solax T-BAT-SYS-HV-S3.6 is the stackable solution that provides LFP safety, 50 A current, IP65, and modular growth to build a professional and durable HV storage system with SolaX inverters.
