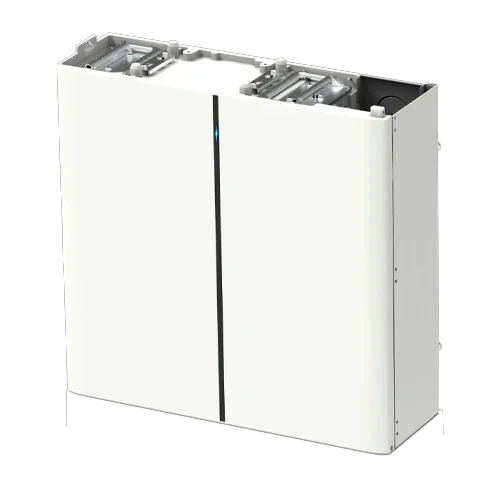

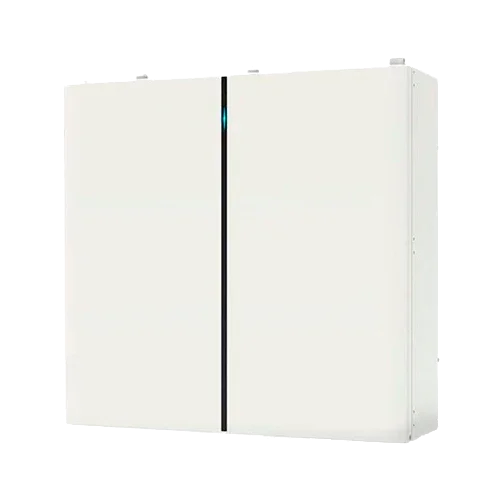

Lithium Battery Module 3.0 kWh HV Solax T30 Triple Power 90–116 V
Modelo: T30 Triple Power- Sku: SOLXBAT002
- Vendor: Solax
Specifications
Product Description
The 3.0 kWh HV Solax T30 Triple Power Lithium Battery Module (HV10230) is SolaX's high-voltage solution for those seeking compact, safe, and scalable storage. Its cobalt-free LFP (LiFePO₄) chemistry, high-performance control electronics, and IP65 sealed enclosure make it a robust module for residential or light commercial use, perfectly integrated with the SolaX HV hybrid inverter range.
Main Features
- Energy per module: 3.1 kWh nominal; 2.8 kWh usable (≈90% DoD).
- Nominal module voltage: 102.4 V; operating range 90–116 V (HV).
- Max. charge/discharge current: 30 A; recommended 25 A for longer lifespan.
- Safe LFP chemistry, >6,000 cycles at 90% DoD.
- IP65 protection rating for indoor or outdoor installation.
- Native RS485/CAN communications with remote diagnostics and updates.
Advantages or Benefits
- Safety and reliability: LiFePO₄ cells, industrial-grade electronics, and IP65 protection reduce risks and failures.
- True scalability: stackable Triple Power format; expand capacity in stages without rewiring the main system.
- Stable performance: advanced BMS management with precise SOC/SOH reading and active balancing between modules.
- Operation in cold climates: heating function allows operation at low temperatures.
- Native integration with SolaX: direct communication to optimize charging/discharging, self-consumption, and backup.
Purpose or Applications
Designed for residential self-consumption with battery, small businesses, tariff optimization (off-peak/flat/peak), backup during outages, and microgrids with SolaX HV inverters. Its size and protection rating allow installation in technical rooms, garages, or sheltered outdoor locations.
Technical Specifications
| Module model | HV10230 (Triple Power T30) |
| Nominal energy (per module) | 3.1 kWh |
| Usable energy @90% DoD | 2.8 kWh |
| Chemistry | Li-ion (LiFePO₄) |
| Nominal module voltage | 102.4 V |
| Voltage range (operation) | 90–116 V |
| Recommended current | 25 A |
| Max. charge/discharge current | 30 A |
| Protection rating | IP65 |
| Communications | RS485, CAN (with inverter and between modules) |
| Service life (90% DoD) | >6,000 cycles |
| Operating temperature | With heating: down to −30 °C; nominal: 0…50 °C (charge) / −10…50 °C (discharge) |
| Max. altitude | < 3,000 m |
| Module dimensions (W×H×D) | 482.5 × 471.5 × 153 mm |
| Module weight | 34.5 kg |
| Master control (BMS) | MC0600 (482.5 × 173.5 × 153 mm; 7.5 kg) |
| Certifications | CE, IEC 62619, UN38.3, IEC 62040, UKCA |
Compatibilities
Direct compatibility with SolaX HV hybrid inverters (e.g., Hybrid G4 generations). Official accessories: MC0600 master control, battery base, and expansion cable sets between modules and to the inverter. In multi-module stacks, combine only with other HV10230 units and with the same BMS.
The 3.0 kWh HV Solax T30 Triple Power Lithium Battery Module is the perfect stackable, high-voltage option to expand your SolaX system with LFP safety, native integration, and an IP65 enclosure designed for many years of service.
