Lithium Battery HV 25 kWh Sungrow SBH250
Modelo: SBH250- Sku: SUNGBAT012
- Vendor: Sungrow
Specifications
Product Description

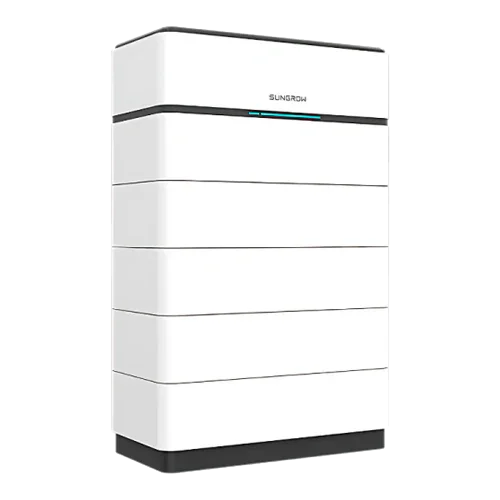

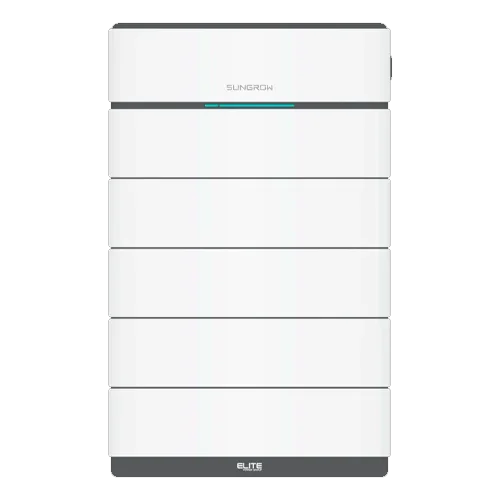

The Sungrow SBH250 25 kWh HV Lithium Battery elevates your storage with a tower of five SG-SBH-5.0 modules (5 kWh each) delivering 25 kWh usable. Based on high-safety, long-life LFP cells, it offers 50 A continuous charge/discharge and 100% depth of discharge to utilize all available energy. Its stackable plug & play architecture eliminates wiring between modules, accelerates installation, and simplifies maintenance, while the assembly achieves IP55 protection rating with natural convection cooling for indoor or outdoor use.
Main Features
- Total usable capacity: 25 kWh (5×5 kWh, LFP chemistry).
- System nominal voltage: ≈ 352 V; reference operating range ≈ 297.0–401.5 V.
- 50 A continuous charge/discharge with high efficiency.
- 100% DOD adjustable for maximum usable energy.
- Stacked mounting without cables between modules; compact footprint.
- CAN communication, advanced BMS, and SOC/status indicators.
Advantages or Benefits
- Greater daily autonomy and extended backup during grid outages.
- Leading safety thanks to LFP chemistry and comprehensive electronic protections.
- Fast and tidy installation, with reduced labor time and minimal maintenance.
- Reliable operation across wide temperature ranges and outdoors (IP55).
- Native integration with Sungrow inverters: intelligent control and cloud monitoring.
Purpose or Applications
Recommended for high-consumption homes, businesses, and SMEs that need to cover more hours of demand, buffer peaks, and optimize the electricity bill through off-peak charging and peak-time discharging strategies.
Technical Specifications
| Technology | LFP Lithium (LiFePO₄), prismatic cell |
| Usable energy | 25 kWh |
| Nominal voltage | ≈ 352 V (5 modules) |
| Voltage range | ≈ 297.0–401.5 V |
| Continuous current | 50 A (charge/discharge) |
| Depth of discharge | Up to 100% (adjustable) |
| Protection rating | IP55 (system) |
| Communication | CAN with Sungrow inverter/BMS |
| Cooling | Natural convection (passive) |
| Operating temperature | Charge 0…50 °C · Discharge −20…50 °C |
| Installation | Vertical stacking, no cables between modules |
| Dimensions & weight | According to number of modules; see installation guide |
| Certifications | CE, UN38.3, IEC 62619, VDE 2510-50, IEC 62477, IEC 63056 |
Compatibilities
Direct (official) compatibility with Sungrow HV hybrid inverters via CAN communication. The SBH family allows 2 to 8 modules per tower; for expansions to higher capacities, maintain module homogeneity and the recommended stacking order.
The Sungrow SBH250 25 kWh HV Lithium Battery combines large capacity, LFP safety, and full integration with Sungrow to maximize your self-consumption with a clean and scalable installation.
