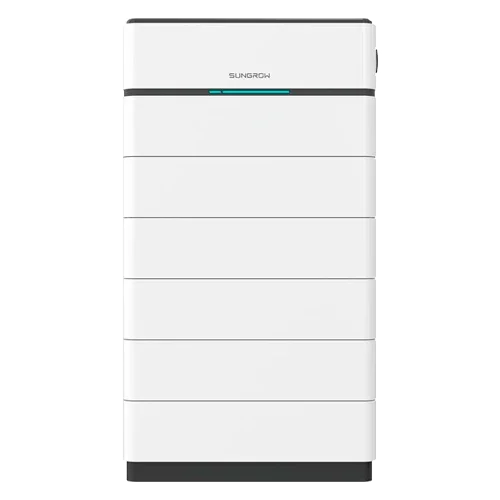

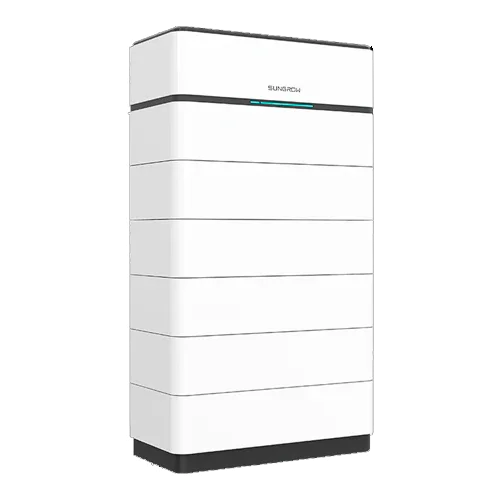

Lithium Battery HV 30 kWh Sungrow SBH300

Product Description

The HV Lithium Battery 30 kWh Sungrow SBH300 is a high-voltage tower composed of six SG-SBH-5.0 modules (5 kWh each) delivering 30 kWh usable. Designed with LFP cells for maximum safety and lifespan, it provides 50 A of continuous charge/discharge and supports 100% depth of discharge. Its stackable plug & play architecture without wiring between modules simplifies assembly and reduces installation time, while the IP55 enclosure with natural convection cooling ensures reliability indoors or outdoors. Integration via CAN with Sungrow inverters enables intelligent control and precise system monitoring.

Main Features

• Usable capacity: 30 kWh (6×5 kWh, LFP chemistry).
• System nominal voltage: ≈ 422 V; reference operating range ≈ 356.4–481.8 V.
• 50 A continuous charge/discharge, high system efficiency.
• 100% DOD to utilize all stored energy.
• Stacked modular design, no cables between modules; reduced footprint.
• CAN communication, advanced BMS, SOC indicators, and comprehensive protections.

Advantages or Benefits

• Extended autonomy to cover intensive consumption and prolonged backup.
• Maximum safety and thermal stability thanks to LFP chemistry.
• Quick installation and minimal maintenance; perfect for phased expansions.
• Reliability in demanding environments (IP55) and wide thermal operating range.
• Native integration with Sungrow inverters for self-consumption strategies and peak shaving.

Purpose or Applications

Targeted at large homes, businesses, and SMEs requiring high daily autonomy, peak reduction, and solid backup during outages, with a special focus on tariff optimization (charging during off-peak, discharging during peak).

Technical Specifications

Compatibilities

Direct compatibility with Sungrow HV hybrid inverters via CAN. The SBH family supports 2 to 8 modules per tower; for expansions, maintain module homogeneity and follow the recommended stacking order.

The HV Lithium Battery 30 kWh Sungrow SBH300 combines high capacity, LFP safety, and full integration with Sungrow to take your self-consumption and energy backup to the next level.
