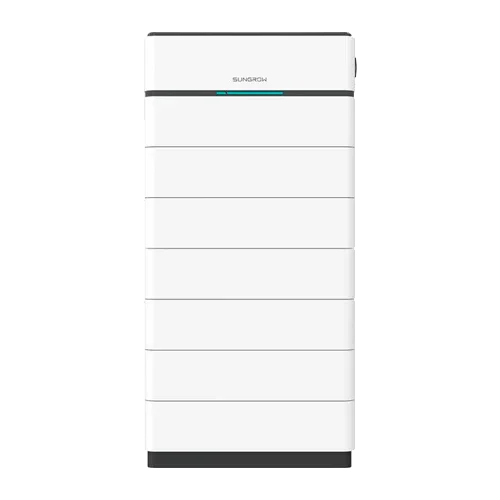

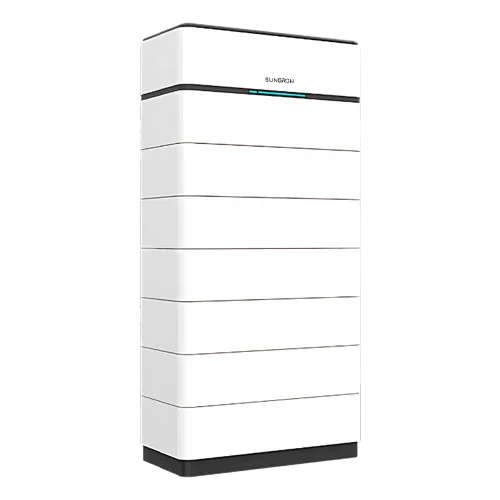

Lithium Battery HV 35 kWh Sungrow SBH350
Modelo: SBH350- Sku: SUNGBAT014
- Vendor: Sungrow
Specifications
Product Description
The HV Lithium Battery 35 kWh Sungrow SBH350 consists of seven SG-SBH-5.0 modules (5 kWh each) with safe and long-lasting LFP chemistry. It offers 35 kWh usable with 50 A continuous charge/discharge and 100% depth of discharge, maximizing the energy available for self-consumption, backup, and tariff management. The stackable plug & play design eliminates wiring between modules, accelerates installation, and reduces maintenance. With IP55 protection rating and natural convection cooling, it operates reliably indoors or outdoors and integrates native CAN communication with Sungrow inverters for intelligent control.
Main Features
- Usable capacity: 35 kWh (7×5 kWh, LFP).
- System nominal voltage: ≈ 492.8 V; operating range ≈ 415.8–562.1 V.
- 50 A continuous charge/discharge with high efficiency.
- 100% DOD configurable to utilize all available energy.
- Stacking without cables between modules, fast installation, and compact footprint.
- CAN communication, advanced BMS, and SOC/status indicators.
Advantages or Benefits
- Superior autonomy to cover intensive consumption and prolonged backup.
- Maximum safety and thermal stability thanks to LFP chemistry.
- Reduced assembly and maintenance times due to its plug & play architecture.
- Reliable operation in a wide thermal range and outdoors (IP55).
- Total integration with Sungrow inverters for monitoring and energy strategies.
Purpose or Applications
Ideal for large homes, businesses, and SMEs with high energy demand, tariff optimization (off-peak charging/peak discharging), and stable backup against outages.
Technical Specifications
| Technology | Lithium LFP (LiFePO₄), prismatic cell |
| Usable energy | 35 kWh |
| Nominal voltage | ≈ 492.8 V |
| Voltage range | ≈ 415.8–562.1 V |
| Continuous current | 50 A (charge/discharge) |
| Depth of discharge | Up to 100% (adjustable) |
| Protection rating | IP55 (system) |
| Communication | CAN with Sungrow inverter/BMS |
| Cooling | Natural convection (passive) |
| Operating temperature | Charge 0…50 °C · Discharge −20…50 °C |
| Installation | Vertical stacking, no cables between modules |
| Certifications | CE, UN38.3, IEC 62619, VDE 2510-50, IEC 62477, IEC 63056 |
Compatibilities
Direct compatibility with Sungrow HV hybrid inverters via CAN. The SBH family allows 2–8 modules per tower; for expansions, maintain module homogeneity and the recommended stacking order.
The HV Lithium Battery 35 kWh Sungrow SBH350 provides high capacity, LFP safety, and native integration with Sungrow to take your self-consumption and backup to the next level.
