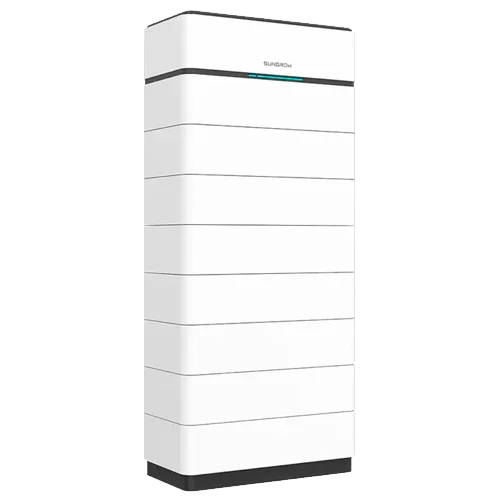

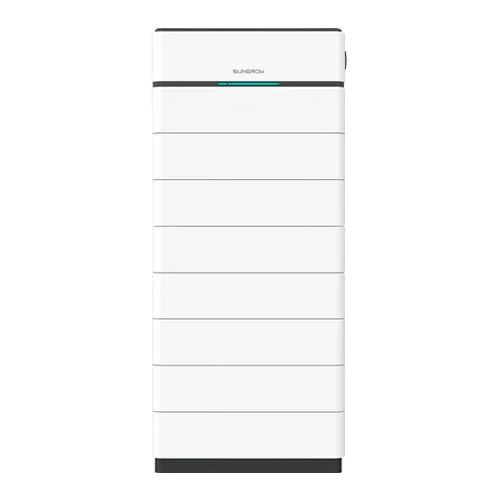

Lithium Battery HV 40 kWh Sungrow SBH400
Modelo: SBH400- Sku: SUNGBAT015
- Vendor: Sungrow
Specifications
Product Description
The HV Lithium Battery 40 kWh Sungrow SBH400 is the top-of-the-line configuration of the SBH series: eight SG-SBH-5.0 modules totaling 40 kWh usable in LFP chemistry. It offers 50 A of continuous charge/discharge and 100% depth of discharge, providing maximum usable energy for self-consumption, peak shaving, and extended backup. Its stackable plug & play architecture eliminates wiring between modules and speeds up installation. The set features IP55 protection and natural convection cooling for reliable operation indoors or outdoors, with native CAN integration to Sungrow inverters.
Main Features
- Usable capacity: 40 kWh (8×5 kWh, LFP).
- Nominal system voltage: ≈ 563.2 V; operating range ≈ 475.2–642.4 V.
- 50 A continuous charge/discharge and high efficiency.
- 100% DOD configurable for maximum usable energy.
- Stacked without cables between modules; compact footprint and minimal maintenance.
- CAN communication, advanced BMS, and comprehensive electronic protections.
Advantages or Benefits
- Maximum autonomy and backup for very demanding consumption.
- Enhanced safety due to LFP chemistry and intelligent BMS management.
- Fast, scalable, and tidy installation; ideal for expansions.
- Reliable operation in a wide thermal range and outdoors (IP55).
- Full integration with Sungrow inverters for cloud control and monitoring.
Purpose or Applications
Designed for high-consumption homes, businesses, and SMEs with intense demand or need for extensive backup, as well as for projects seeking maximum capacity per tower within the Sungrow ecosystem.
Technical Specifications
| Technology | LFP Lithium (LiFePO₄), prismatic cell |
| Usable energy | 40 kWh |
| Nominal voltage | ≈ 563.2 V |
| Voltage range | ≈ 475.2–642.4 V |
| Continuous current | 50 A (charge/discharge) |
| Depth of discharge | Up to 100% (adjustable) |
| Protection rating | IP55 (system) |
| Communication | CAN with Sungrow inverter/BMS |
| Cooling | Natural convection (passive) |
| Operating temperature | Charge 0…50 °C · Discharge −20…50 °C |
| Installation | Vertical stacking, no cables between modules |
| Certifications | CE, UN38.3, IEC 62619, VDE 2510-50, IEC 62477, IEC 63056 |
Compatibilities
Direct (official) compatibility with Sungrow HV hybrid inverters via CAN. The SBH series supports 2–8 modules per tower; for expansions, maintain module homogeneity and the recommended stacking order.
The HV Lithium Battery 40 kWh Sungrow SBH400 combines maximum capacity, LFP safety, and native integration with Sungrow to deliver industry-leading storage performance in its category.
