Lithium Battery HV 9.6 kWh Sungrow SBR096

Product Description

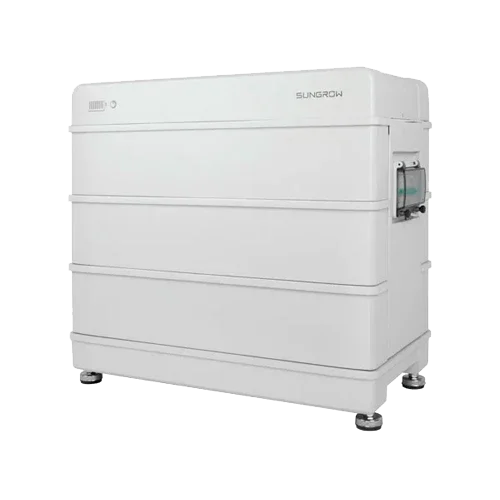

The HV Lithium Battery 9.6 kWh Sungrow SBR096 is a high-voltage tower composed of 3 modules of 3.2 kWh (LFP) and an integrated BMS. It delivers 9.6 kWh usable with 100% DOD and up to 30 A continuous charge/discharge, combining safety, efficiency, and an IP55 installation ready for outdoor use. Designed to work in perfect harmony with Sungrow hybrid inverters, it provides reliable storage for self-consumption, backup, and intelligent energy management.

Main Features

• Usable capacity: 9.6 kWh (3 modules × 3.2 kWh).
• High nominal voltage: 192 V (operating range 162–219 V).
• Continuous current: 30 A charge/discharge with high efficiency.
• 100% DOD configurable to utilize all available energy.
• Protection rating IP55 and natural convection cooling.
• CAN communication, SOC/status indicators, and comprehensive electronic protections.

Advantages or Benefits

• Scalable modular architecture (up to 8 modules per tower) to grow with your needs.
• Reference LFP safety: thermal stability and extended cycle life.
• Quick installation: stacking without cables between modules and compact footprint.
• Reliable operation in a wide thermal range; suitable for indoor or outdoor use.
• Native integration with Sungrow inverters for monitoring, optimization, and backup.

Purpose or Applications

Ideal solution for homes and small businesses seeking to increase self-consumption, have backup in case of grid outages, and optimize tariffs with scheduled charge/discharge. Suitable for new systems or expansions of existing Sungrow installations.

Technical Specifications

Compatibilities

Direct compatibility with Sungrow hybrid inverters of high voltage via CAN communication. For expansions, the SBR family allows 2 to 8 modules per tower; it is recommended to maintain module homogeneity and follow the stacking order recommended by the manufacturer.

The HV Lithium Battery 9.6 kWh Sungrow SBR096 combines safety, performance, and ease of installation in a modular format that grows with you and maximizes the efficiency of your self-consumption system.
