Lithium Battery HV 12.8 kWh Sungrow SBR128

Modelo: SBR128
  • Sku: SUNGBAT004
  • Vendor: Sungrow
€6.850,17 EUR
€5.822,64 EUR
Tax included.
Shipping calculated at checkout.
In stock!
Spend €150,00 to FREE SHIPPING

Sungrow SBR128 HV Lithium Battery 12.8 kWh combines LFP lithium with 30 A continuous and 100% DOD. Modular tower (4×3.2 kWh), IP55, high efficiency, and CAN communication. Perfect for self-consumption and backup with Sungrow inverters.

Purchase with Secure Payment

Specifications

Product Description

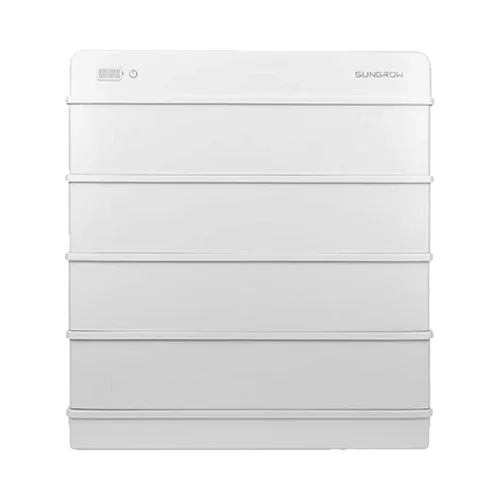

The HV Lithium Battery 12.8 kWh Sungrow SBR128 is a high-voltage tower composed of 4 LFP modules of 3.2 kWh each, managed by BMS and optimized for Sungrow hybrid inverters. It offers 12.8 kWh usable with 30 A continuous charge/discharge and 100% depth of discharge, ensuring maximum energy utilization for self-consumption and backup. Its stackable design, without cables between modules, and IP55 protection rating simplify installation and allow placement indoors or outdoors.

Main Features

  • Usable capacity: 12.8 kWh (4×3.2 kWh, LFP chemistry).
  • Nominal system voltage: 256 V; operating range 216–292 V.
  • 30 A continuous charge/discharge with high efficiency.
  • 100% DOD configurable for maximum usable energy.
  • Protection rating IP55 and natural convection cooling.
  • Communication CAN, SOC/status indicators, and comprehensive electronic protections.

Advantages or Benefits

  • Scalable modular architecture: from 2 to 8 modules per tower to expand as needed.
  • Reference safety thanks to LFP chemistry (thermal stability, long service life).
  • Quick and clean installation: plug & play stacking without cables between modules; compact footprint.
  • Reliable operation in a wide thermal range and up to 4,000 m altitude.
  • Native integration with Sungrow inverters for monitoring, optimization, and backup.

Purpose or Applications

Recommended for homes and SMEs seeking to increase self-consumption, have backup in case of outages, and optimize tariffs through charge/discharge scheduling. Suitable for new systems or expansions of existing Sungrow SBR towers.

Technical Specifications

Technology Lithium LFP (LiFePO₄), prismatic cell
Usable energy 12.8 kWh
Nominal voltage 256 V
Voltage range 216–292 V
Continuous current 30 A (charge/discharge)
Depth of discharge Up to 100% (adjustable)
Protection rating IP55
Communication CAN
Operating temperature Charge 0…50 °C · Discharge −20…50 °C
Dimensions (W×H×D) 625 × 675 × 330 mm
Approximate weight 147 kg
Max. operating altitude 4,000 m
Cooling Natural convection
Protections Over/undervoltage, overcurrent, temperature, DC isolator
Certifications CE, CEC, IEC 62619, UN38.3, VDE 2510-50, IEC 62477, IEC 63056, IEC 61000, UKCA

Compatibilities

Direct (official) compatibility with Sungrow HV hybrid inverters via CAN communication. The SBR family allows 2–8 modules per tower; for expansions, maintain module homogeneity and the stacking order recommended by the manufacturer.

The HV Lithium Battery 12.8 kWh Sungrow SBR128 maximizes self-consumption efficiency with a safe, modular design ready to grow with your installation.
