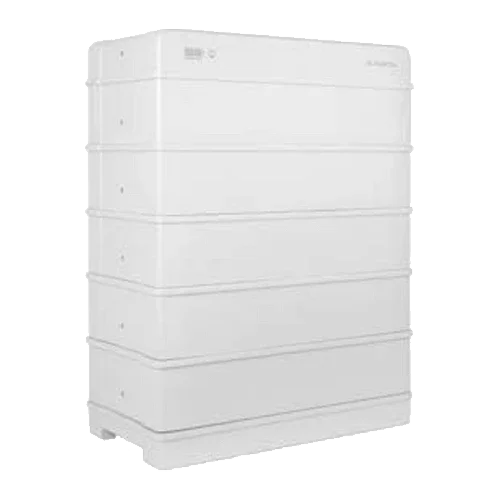

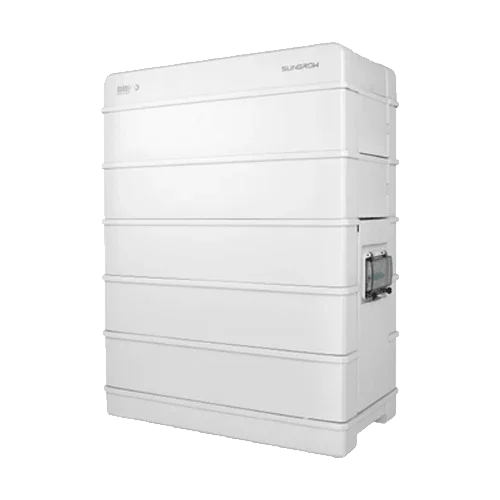

Lithium Battery HV 16.0 kWh Sungrow SBR160
Modelo: SBR160- Sku: SUNGBAT005
- Vendor: Sungrow
Specifications
Product Description
The HV Lithium Battery 16.0 kWh Sungrow SBR160 increases the capacity of your storage system with a tower of five LFP modules of 3.2 kWh each, managed by BMS and fully integrated with Sungrow inverters. It provides 16 kWh usable with 30 A continuous and 100% depth of discharge, offering high performance for self-consumption, backup during outages, and peak management. Its stackable plug & play design without cabling between modules, together with IP55 protection rating, enables a quick and robust installation for indoor or outdoor use.
Main Features
- Usable capacity: 16 kWh (5×3.2 kWh, LFP chemistry).
- Nominal system voltage: 320 V; operating range 270–365 V.
- 30 A continuous charge/discharge with high efficiency.
- 100% DOD configurable to utilize all available energy.
- Protection rating IP55 and natural convection cooling.
- CAN communication, SOC indicators, and comprehensive electronic protections.
Advantages or Benefits
- Flexible scalability: from 2 to 8 modules per tower to adjust capacity to your consumption needs.
- High-safety LFP chemistry and long service life, with excellent thermal stability.
- Quick and tidy installation: stacking without cables between modules; easy maintenance.
- Reliable operation in a wide thermal range and up to 4,000 m altitude.
- Native integration with Sungrow inverters: monitoring, control, and intelligent strategies.
Purpose or Applications
Recommended for demanding homes and small businesses that require greater daily autonomy, stable backup, and tariff optimization (off-peak/peak). It is also an excellent option for expanding existing Sungrow installations.
Technical Specifications
| Technology | LFP Lithium (LiFePO₄), prismatic cell |
| Usable energy | 16 kWh |
| Nominal voltage | 320 V |
| Voltage range | 270–365 V |
| Continuous current | 30 A (charge/discharge) |
| Depth of discharge | Up to 100% (adjustable) |
| Protection rating | IP55 |
| Communication | CAN |
| Operating temperature | Charge 0…50 °C · Discharge −20…50 °C |
| Dimensions (W×H×D) | 625 × 805 × 330 mm |
| Approximate weight | 180 kg |
| Max. operating altitude | 4,000 m |
| Cooling | Natural convection |
| Protections | Over/undervoltage, overcurrent, temperature, DC isolator |
| Certifications | CE, CEC, IEC 62619, UN38.3, VDE 2510-50, IEC 62477, IEC 63056, IEC 61000, UKCA |
Compatibilities
Direct compatibility with high voltage Sungrow hybrid inverters via CAN communication. The SBR family supports 2–8 modules per tower; for expansions, maintain module homogeneity and the stacking order recommended by the manufacturer.
The HV Lithium Battery 16.0 kWh Sungrow SBR160 provides additional capacity, safety, and efficiency in a modular format designed to grow with your energy needs.
