Lithium Battery HV 19.2 kWh Sungrow SBR192

Modelo: SBR192
  • Sku: SUNGBAT006
  • Vendor: Sungrow
€10.228,32 EUR
€8.694,07 EUR
Tax included.
Shipping calculated at checkout.
In stock!
Spend €150,00 to FREE SHIPPING

Sungrow SBR192 HV Lithium Battery 19.2 kWh offers LFP lithium with 30 A and 100% DOD. Modular tower (6×3.2 kWh), IP55, natural convection, and CAN communication. Robust solution for residential/commercial self-consumption and backup.

Purchase with Secure Payment

Specifications

Product Description

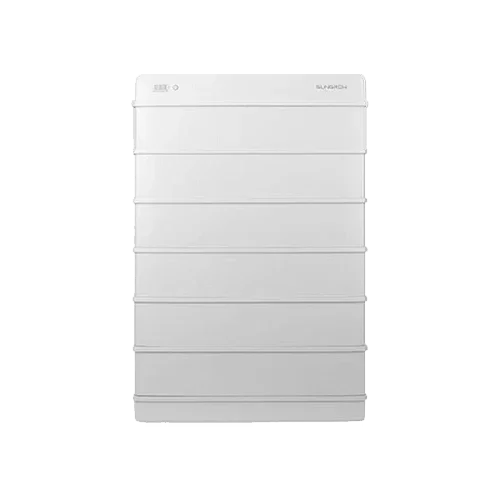

The HV Lithium Battery 19.2 kWh Sungrow SBR192 increases the autonomy of your installation with a tower of six LFP modules of 3.2 kWh managed by BMS. It delivers 19.2 kWh usable with 30 A continuous charge/discharge and 100% depth of discharge, maintaining high efficiency and safety. Its stackable plug & play design, without cables between modules, and IP55 protection rating allow for quick and reliable installation indoors or outdoors, with native integration to Sungrow hybrid inverters via CAN.

Main Features

  • Usable capacity: 19.2 kWh (6×3.2 kWh, LFP chemistry).
  • Nominal system voltage: 384 V; operating range 324–438 V.
  • 30 A continuous charge/discharge with high efficiency.
  • 100% DOD to utilize all stored energy.
  • Protection IP55 and natural convection cooling.
  • CAN communication, SOC/status indicators, and comprehensive electronic protections.

Advantages or Benefits

  • Large capacity to cover daily peaks and extend backup during outages.
  • LFP chemistry with maximum thermal stability and long service life.
  • Clean and quick installation: stackable plug & play without cabling between modules.
  • Reliable operation in a wide thermal range and up to 4,000 m altitude.
  • Intelligent energy management with Sungrow inverters and cloud monitoring.

Purpose or Applications

Recommended for high-consumption homes and SMEs seeking greater self-consumption, extended backup, and tariff optimization (off-peak night charging, peak discharge). Suitable for new installations or SBR tower expansions.

Technical Specifications

Technology LFP Lithium (LiFePO₄), prismatic cell
Usable energy 19.2 kWh
Nominal voltage 384 V
Voltage range 324–438 V
Continuous current 30 A (charge/discharge)
Depth of discharge Up to 100% (adjustable)
Protection rating IP55
Communication CAN
Operating temperature Charge 0…50 °C · Discharge −20…50 °C
Dimensions (W×H×D) 625 × 935 × 330 mm
Approximate weight 213 kg
Max. operating altitude 4,000 m
Cooling Natural convection
Protections Over/undervoltage, overcurrent, temperature, DC isolator
Certifications CE, IEC 62619, UN38.3, VDE 2510-50, IEC 62477, IEC 63056, IEC 61000, UKCA

Compatibilities

Direct compatibility with Sungrow HV hybrid inverters via CAN communication. The SBR family supports 2 to 8 modules per tower; for expansions, maintain module homogeneity and stacking order as indicated by the manufacturer.

The HV Lithium Battery 19.2 kWh Sungrow SBR192 combines high capacity, LFP safety, and seamless integration to take your self-consumption to the next level.
