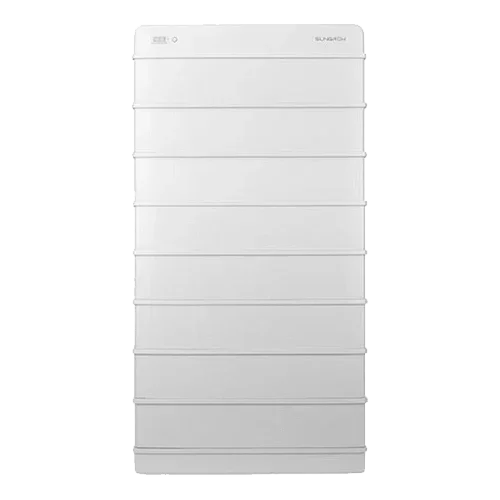

Lithium Battery HV 25.6 kWh Sungrow SBR256

Modelo: SBR256
  • Sku: SUNGBAT008
  • Vendor: Sungrow
€14.381,96 EUR
€12.224,66 EUR
Tax included.
Shipping calculated at checkout.
In stock!
Spend €150,00 to FREE SHIPPING

Sungrow SBR256 25.6 kWh HV Lithium Battery offers LFP storage with 30 A continuous and 100% DOD. 8×3.2 kWh tower, IP55, natural convection, and CAN communication. Maximum capacity for self-consumption and advanced backup.

Purchase with Secure Payment

Specifications

Product Description

The HV Lithium Battery 25.6 kWh Sungrow SBR256 is the highest capacity configuration in the SBR family. It integrates eight 3.2 kWh LFP modules managed by an advanced BMS to deliver 25.6 kWh usable with 30 A continuous charge/discharge and 100% depth of discharge. Its stackable architecture without wiring between modules speeds up installation, while the IP55 protection rating and natural convection cooling ensure reliability indoors or outdoors. Designed to work in perfect harmony with Sungrow hybrid inverters, this tower covers high daily consumption, provides extended backup during outages, and enables precise tariff optimization strategies.

Main Features

  • Total usable capacity: 25.6 kWh (8×3.2 kWh, LFP chemistry).
  • High voltage system: 512 V nominal; wide operating range.
  • 30 A continuous charge and discharge with high efficiency.
  • 100% DOD adjustable to maximize usable energy.
  • Modular plug & play design without cables between modules; compact footprint.
  • CAN communication with the Sungrow inverter and cloud monitoring.

Advantages or Benefits

  • Superior autonomy: covers more hours of consumption and reduces peak energy purchases.
  • Reference safety: thermally stable LFP chemistry and BMS with comprehensive protections.
  • Fast installation and minimal maintenance thanks to stacked assembly and passive cooling.
  • Prepared for outdoor use (IP55) and operation in a wide range of temperature and altitude.
  • Native integration with Sungrow hybrid inverters for intelligent control and automatic backup.

Purpose or Applications

Designed for high-consumption homes, small and medium businesses, commercial sites with demand peaks, installations requiring prolonged backup, or projects needing high energy density in limited space. Ideal for new Sungrow ecosystems or expansions seeking to reach maximum tower capacity.

Technical Specifications

Technology LFP Lithium (LiFePO₄), prismatic cell
Usable energy 25.6 kWh
Nominal voltage 512 V
Voltage range 432–584 V
Continuous current 30 A (charge/discharge)
Depth of discharge Up to 100% (adjustable)
Protection rating IP55
Communication CAN with Sungrow inverter/BMS
Cooling Natural convection (passive)
Operating temperature Charge 0…50 °C · Discharge −20…50 °C
Dimensions (W×H×D) 625 × 1,195 × 330 mm
Approximate weight 279 kg
Max. operating altitude 4,000 m
Protections Over/undervoltage, overcurrent, temperature, DC isolator
Certifications CE, IEC 62619, UN38.3, VDE 2510-50, IEC 62477, IEC 63056, IEC 61000, UKCA

Compatibilities

Direct (official) compatibility with Sungrow HV hybrid inverters via CAN communication. The SBR family supports 2 to 8 modules per tower; for expansions to SBR256, module homogeneity and the stacking order established by the manufacturer are recommended.

The HV Lithium Battery 25.6 kWh Sungrow SBR256 is the highest capacity solution for demanding projects: LFP safety, fast installation, full integration with Sungrow, and performance designed to take your self-consumption and backup to the next level.
